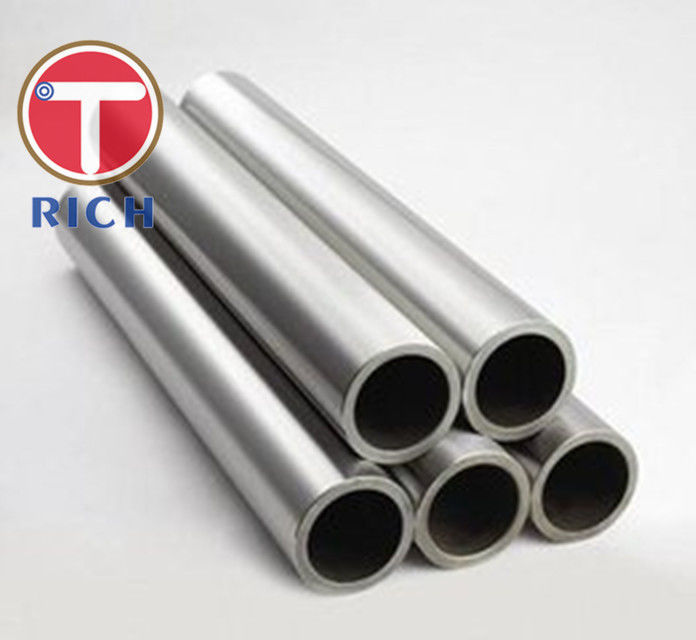

Round Shape Stainless Steel Seamless Pipe Titanium Alloy For Condenser
Product Details
seamless steel pipe
,seamless carbon steel tube
TORICH Seamless Titanium and Titanium Alloy Tubes for Condenser and Heater-Exchangers
TORICH Seamless Titanium and Titanium Alloy Tubes for Condenser and Heater-Exchangers
Standard: GB/T3624, GB/T3625, ASTM B338/ASME SB338, ASTM B861/ASME SB861, DIN17861
Size range: OD: 10-80mm
WT: 0.5-4.5mm
Length: 15m max
Material: TA1, TA2, TA3, TA9, TA10
Usage: Condenser and Heater-Exchangers
Chemical Composition%
| Grade | N max | C max | H max | Fe max | O max | Residual | Al | V | Pd | Mo | Cr | Si max | S max | Mn max | Cu | Oth ers | Ni | Ti | |
| Each max | Total max | ||||||||||||||||||
| TA1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | balance |
| TA2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | balance |
| TA3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | balance |
| TA9 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | 0.12-0.25 | - | - | - | - | - | - | - | - | balance |
| TA10 | 0.03 | 0.08 | 0.015 | 0.30 | 0.025 | 0.1 | 0.4 | - | - | - | 0.2-0.4 | - | - | - | - | - | - | 0.6-0.9 | balance |
Mechanical Property
| Grade | TS(Mpa) | YS(Mpa) | E(%), min |
| TA1 | ≥240 | 140-310 | 24 |
| TA2 | ≥400 | 275-450 | 20 |
| TA3 | ≥500 | 380-550 | 18 |
| TA9 | ≥400 | 275-450 | 20 |
| TA10 | ≥460 | ≥300 | 18 |
Characteristic:
Good concentricity High Precision
Good surface quality Stable quality
Good OD and ID tolerance Smooth Roughness
TORICH QUALITY ASSURANCE
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
