Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001 TS16949 ISO14001
Model Number:
JASO M101
Trading Properties
Minimum Order Quantity:
3tons
Price:
negotiable
Product Summary
Automotive steel tubes JASO M 101-94 Metal pipes for automobile tubing Automotive steel tubes TDW Brazed double wall low carbon steel tubing Tubing mainly for brakes TSW Welded low carbon steel tubing Tubing mainly for fuel and lubrication STKM 11J Carbon steel tubes for machine Structural purpose ...
Product Details
Highlight:
low carbon steel tube
,low carbon steel pipe
Material:
Low Carbon Steel
Type:
TSW
Standard:
JASO M101
Packages:
In Wooden Boxes Packages
Coating:
As Per Requests
Application:
Automotive Brake
Product Description

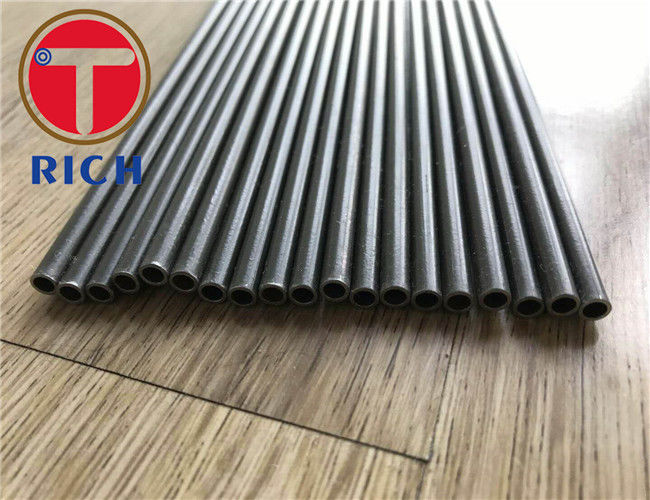

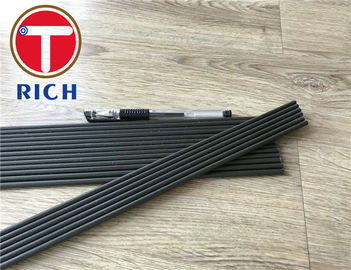

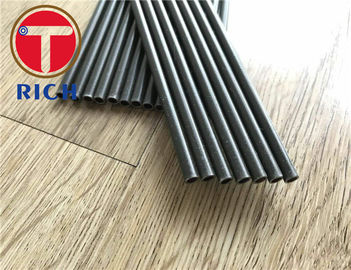

Automotive steel tubes JASO M 101-94 Metal pipes for automobile tubing
Automotive steel tubes
TDW Brazed double wall low carbon steel tubing Tubing mainly for brakes
TSW Welded low carbon steel tubing Tubing mainly for fuel and lubrication
STKM 11J Carbon steel tubes for machine Structural purpose Tubing for cooling etc.
C1201 or C1220 Tubing mainly fpr air brakes
Tolerance :
Outside Dia: Nominal +/-0.1mm
Wall thickness: Nominal +/-0.1mm
Appearance : No harmful defect
Automotive steel tubes material:
Chemical Composition:
| C | Mn | P | S |
| 0.12Max | 0.50Max | 0.04Max | 0.045Max |
Mechanical properties
| T.S. | Y.P. | E.L | HR30T |
| 30kg/mm2min | 18kg/mm2min | 25%min | 65Max |
Corrosion Resistance (Hours)
| Zn8μm | Zn13μm | Zn25μm | Zn+PVF | |
| White | 72 | 72 | 72 | - |
| Red | 192 | 288 | 480 | 3000 |
Pressure Proof Test(kg/mm2)
| DW | SW | |
| Under 8 | 350 | 250 |
| 8.00-10.0 | 250 | 200 |
Automotive steel tubes
Flattening&Bending Test
DW No crack
SW Not mentioned.
