ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1 tons | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | In plywood case, In wooden box. | Delivery Time : | 30-45 days after order confirmed |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Ton per Year |
| Place of Origin: | China | Brand Name: | Torich |
|---|---|---|---|
| Certification: | ISO 9001 ISO14001 TS16949 | Model Number: | ASTM A270 |
|
Detail Information |
|||
| Characteristic: | Stainless Steel Sanitary Tube | Material: | 304, 304L, 316, 316L Etc |
|---|---|---|---|
| Production Method: | Seamless Or Welded | Package: | In Bundles Or As Per Requests |
| End Protector: | Plain / Beveled | Length: | 2-12m |
| Type: | Stainless Steel Tube | MTC: | EN10204.3.1 |
| High Light: | stainless tube steel,large diameter stainless steel tube |
||
Product Description
Products Description:
ASTM A270 for Dairy and Food Industry Seamless Stainless Steel Sanitary Tube
Steel Grade/Steel Material:
TP304, TP304L, TP316, TP316L, TP321
1.4301, 1.4306, 1.4401, 1.4404, 1.4541
S32205, S32750, S32003
| Grade and Main chemical composition% | |||||||||
| C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other | |
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N≤0.25 |
| 202 | ≤0.15 | ≤1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N≤0.25 |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 8-10.0 | - |
| 303 | ≤0.15 | ≤1.00 | ≤2.00 | 0.2 | ≥0.015 | 17-19 | ≤0.6 | 8.0-10.0 | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 9-13 | - |
| 305 | ≤0.12 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 10.5-13 | - |
| 309S | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 22-24 | - | 12-15 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.00 | 0.045 | 0.03 | 24-26 | - | 19-22 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 12-15 | - |
| 317 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 317L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 9-13 | Ti≥5×C |
| 405 | ≤0.08 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 11.5-14.5 | - | ≤0.6 | AL0.1-0.3 |
| 420F | 0.26-0.4 | ≤1.00 | ≤1.25 | 0.06 | ≥0.15 | 12-14 | ≤0.6 | ≤0.6 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 0.04 | 0.03 | 16-18 | - | ≤0.6 | |
Delivery Condition: Mill Finish; Mechanically Polished Surface Finish(80 grit, 120 grut, 180 grit, 240 grit etc); Electropolished Finish
Size Range:
OD: 5-304.8mm
WT: 3-24.5mm
Length: 2-12m
Steel Tube Characteristic:
High strength
High-precision
Good Surface Quality
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
Seamless/Welded Cold Drawn or Cold Rolled + Heat Treatment + Polished

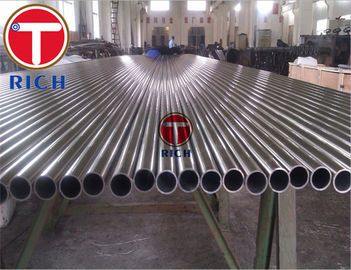

Production Steel Tube:
Eddy Current Test and Ultrasonic Test:
Packing:
