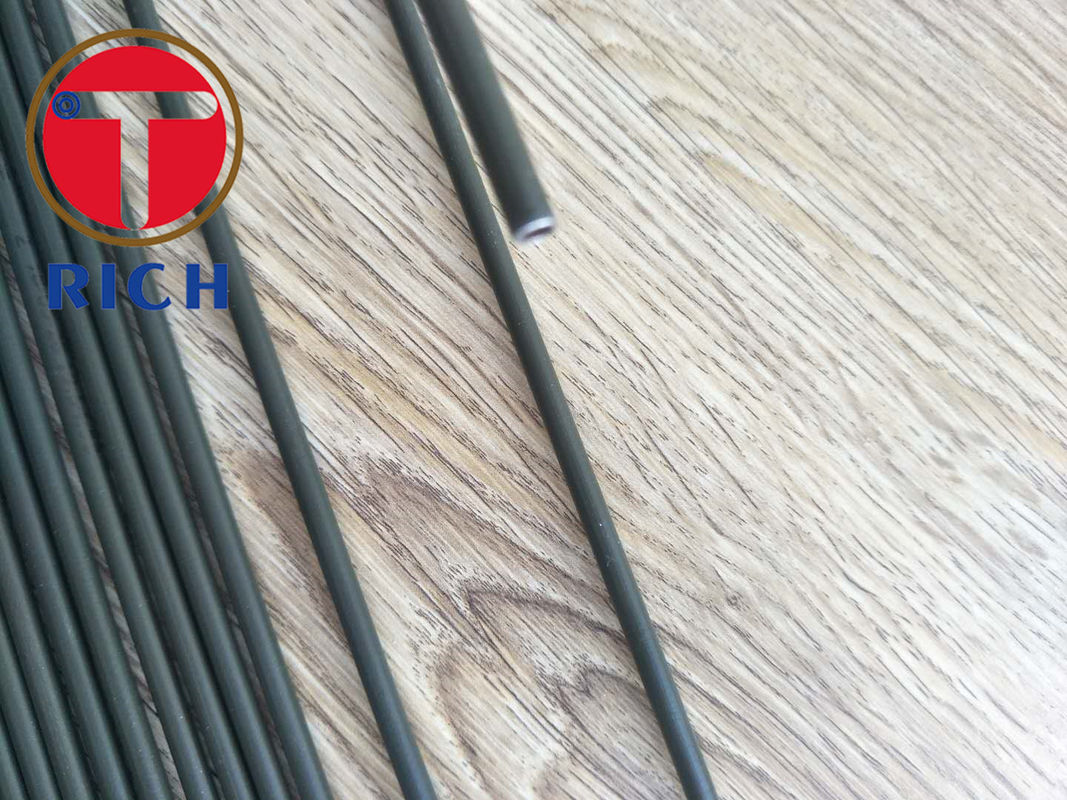

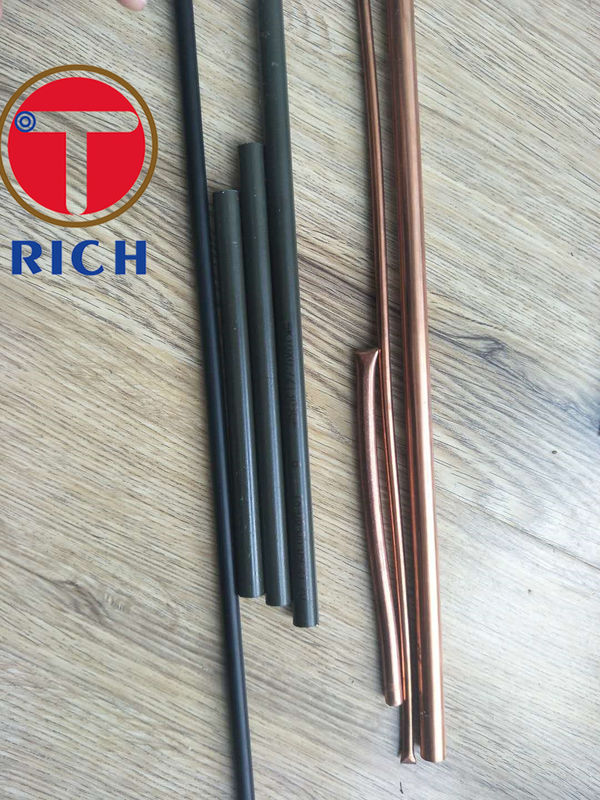

Round Automotive Steel Tubes , Carbon Steel Pipe Zinc Plating And PVF Coating
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001 TS6949 ISO14001
Model Number:
PVF coating
Trading Properties
Minimum Order Quantity:
3 tons
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
5000ton/year
Product Summary
Round Automotive Steel Tubes , Carbon Steel Pipe Zinc Plating And PVF Coating High density zinc plating will increase durability of tube surface and chromate passivation will delay the white corrosion appear.Trivalent chromate (Cr+3)passivation is also available for environmental reqquirement.PVF ...
Product Details
Highlight:
low carbon steel pipe
,steel mechanical tubing
Material:
Carbon Steel
Standard:
JASO M101 KS R2028
Length:
Straight Length And Coil
Surface:
Zinc Chromate PVF
Color:
Yellow,Olive
Application:
Automotive,Refrigerator
Product Description
Round Automotive Steel Tubes , Carbon Steel Pipe Zinc Plating And PVF Coating
High density zinc plating will increase durability of tube surface and chromate passivation will delay the white corrosion appear.Trivalent chromate (Cr+3)passivation is also available for environmental reqquirement.PVF coating quality shall give a high resistance againest corrosive conditions,Nickel and Zinc plating and double coating PVF or PVDF are developig to meeting for customers' high qualitu requirement.
Sorts of Surface Treatment
Electrolyte Zinc Plating+Chromate Yellow
Electrolyte Zinc Plating+Chromate Olive
Electrolyte Zinc Plating+Chromate Olibe+PVF Olive Green
PVF: Ply vinyl fluoride
Tubes coating
Tubes + Chromating +zinc plating +PVF coating
Technical Specification of External Surface Treatment
| Treatment Layer | Thickness | Salt Spray Test (hours) | |
| White Rust | Red rust | ||
| Zinc | 8,13,25 | ＞70 | ＞192/240/280 |
| Chromate | ＜3 | ＞72 | ＞192/240/280 |
| PVF | ＞8,15,25 | ＞240 | ＞3000 |
