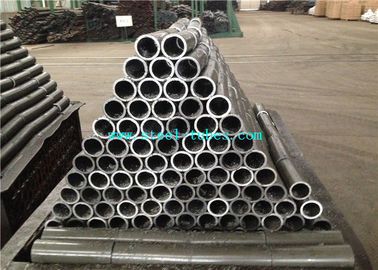

TORICH Automobile Precision Steel Pipe Maching GOST9567 10 , 20 , 35 , 45 , 40x

Basic Properties
Place of Origin: Zhejiang China
Brand Name: TORICH
Certification: ISO 9001 ISO 14001 TS 16949
Model Number: GOST9567
Trading Properties
Minimum Order Quantity: 2 ton
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60000 Ton/Year
Tags

precision stainless steel tubing

seamless steel pipe

seamless carbon steel tube
Product Summary
Tube Maching GOST9567 10 , 20 , 35 , 45 , 40x Precision Steel Pipe GOST9567 Precision steel tubes Applications: Automobile, Machinery Engineering, Autoparts etc. Size range: O.D.:6-168mm W.T.:1-15mm L:max12000mm Chemical composition(%,max) Steel Gade C Si Mn Cr Ni Mo S P Cu 10 0.07-0.14 0.17-0.37 0...

Product Details

Highlight:

seamless steel pipe

,

precision stainless steel tubing
Product Name:: TORICH Automobile Tube Maching GOST9567 10 , 20 , 35 , 45 , 40x Precision Steel Pipe
Material:: 10 , 20 , 35 , 45 , 40x
Surface:: With Anti Rust Oil
Application:: Automobile, Machinery Engineering, Autoparts Etc.
Shape:: Round
OD:: 6-168mm*1-15mm*12000mm
WT:: 6-168mm*1-15mm*12000mm
Length:: 6-168mm*1-15mm*12000mm
Tolerance:: According To The Following Tables Or Customers’ Request.
Spec:: General Length:4-12.5m
Product Description



Tube Maching GOST9567 10 , 20 , 35 , 45 , 40x Precision Steel Pipe



GOST9567 Precision steel tubes


Applications: Automobile, Machinery Engineering, Autoparts etc.


Size range: O.D.:6-168mm W.T.:1-15mm L:max12000mm

Chemical composition(%,max)

Steel Gade C Si Mn Cr Ni Mo S P Cu
10 0.07-0.14 0.17-0.37 0.35-0.65 0.15 0.3 - - - -
20 0.17-0.24 0.17-0.37 0.35-0.65 0.25 0.25 - 0.03 0.025 0.3
35 0.32-0.40 0.17-0.37 0.50-0.80 0.25 0.3 - 0.04 0.035 0.3
45 0.42--0.45 0.17-0.37 0.50-0.80 0.25 - - - - -
40X 0.36-0.44 0.17-0.37 0.50-0.80 0.80-1.10 0.3 - 0.035 0.035 0.3
30ХГСА 0.28-0.34 0.90-1.20 0.80-1.10 0.80-1.10 0.3 - 0.005 0.025 -



Mechanical composition

Steel grade Tensile strength,
N/mm2 (min)		 Yield strength, N/mm 2 (min) Elongation,
%(min)
10 343 206 24
20 412 245 21
35 510 294 17
45 589 323 14
40X 618 - 14
30ХГСА 491 - 18

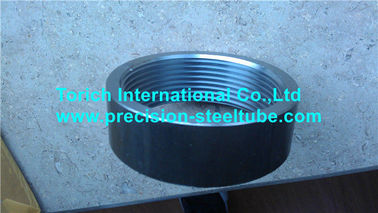

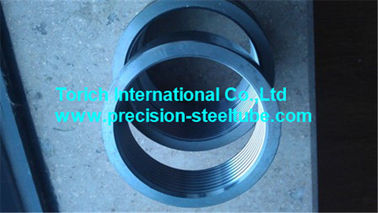

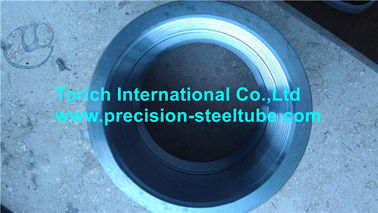

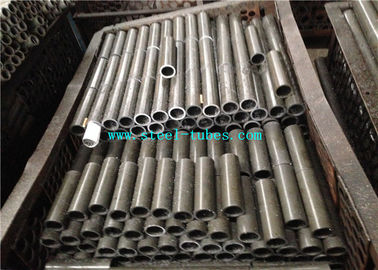

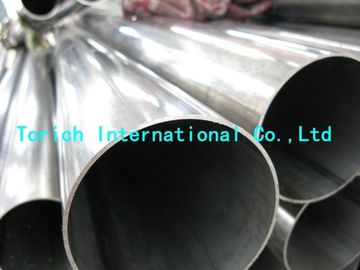

TORICH Automobile Precision Steel Pipe Maching GOST9567 10 , 20 , 35 , 45 , 40x 0 TORICH Automobile Precision Steel Pipe Maching GOST9567 10 , 20 , 35 , 45 , 40x 1TORICH Automobile Precision Steel Pipe Maching GOST9567 10 , 20 , 35 , 45 , 40x 2 TORICH Automobile Precision Steel Pipe Maching GOST9567 10 , 20 , 35 , 45 , 40x 3

TORICH Automobile Precision Steel Pipe Maching GOST9567 10 , 20 , 35 , 45 , 40x 4 TORICH Automobile Precision Steel Pipe Maching GOST9567 10 , 20 , 35 , 45 , 40x 5





QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T

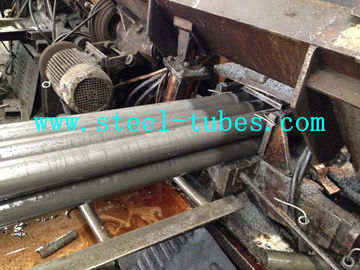

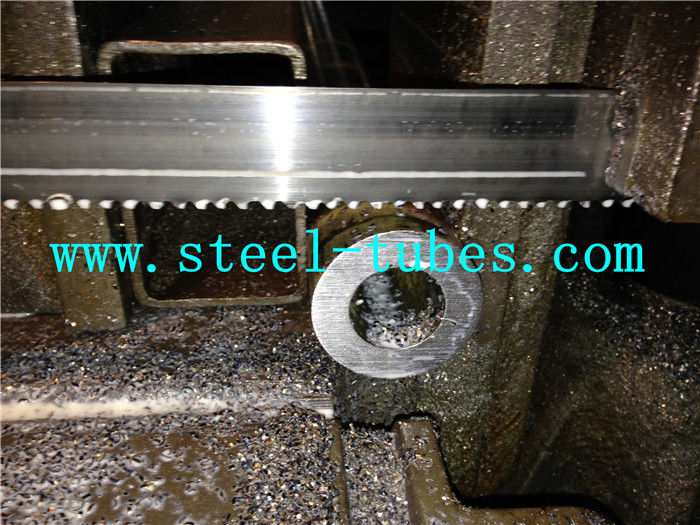

6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc

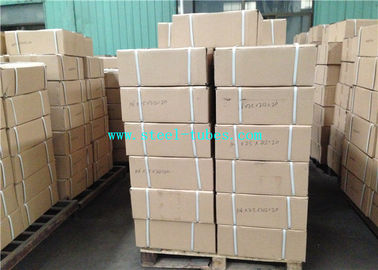

8~ Packing and Stocking.



100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



FAQ


Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us

Mr. Richard SHEN

Managing Director
