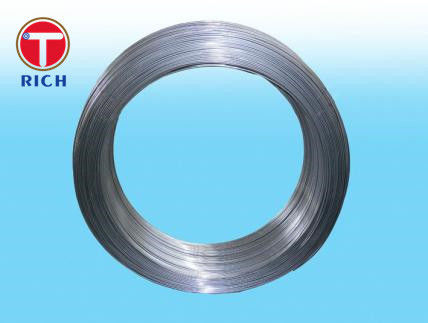

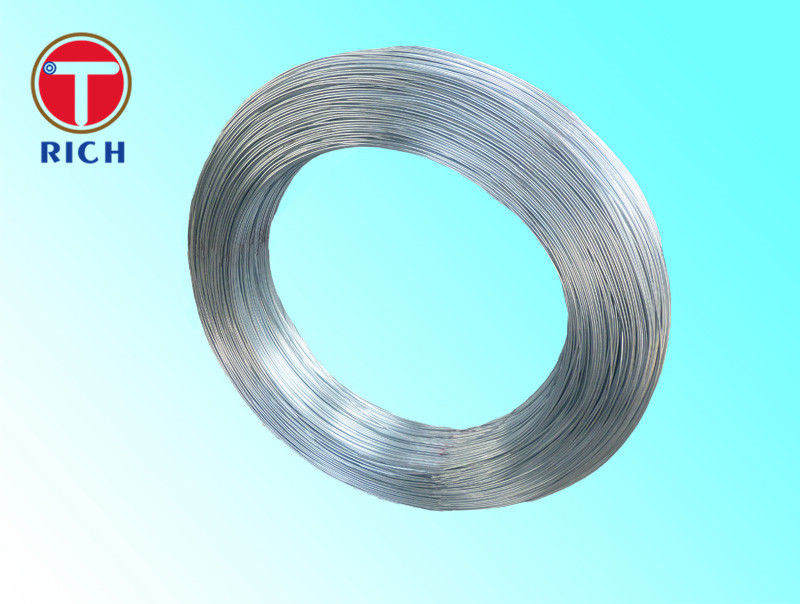

4.76 X0.5Welded Low-Carbon Steel Tubing SAE J 526 UNS G10080 and UNS G10100
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001 TS16949 ISO14001
Model Number:
SAE JS 526 B
Trading Properties
Minimum Order Quantity:
3 tons
Price:
2USD-3USD/kg
Payment Terms:
L/C, T/T
Supply Ability:
2000ton/year
Product Summary
4.76 X0.5Welded Low-Carbon Steel Tubing SAE J 526 UNS G10080 and UNS G10100 Electric welded single wall steel tube is used is used for automobiles and refrigerator industries. Most product features are quite similar to double wall tube. Technical specification shall be meet with JAM101-94 and SAE ...
Product Details
Highlight:
welded steel pipe
,electric resistance welded steel tube
Material:
1008 Or 1010
Standard:
SAE J 526
OD:
4-10mm
WT:
0.7mm
Length:
Straight Length And Coil
Section Shape:
Round
Secondary Or Not:
Non-secondary
Technique:
ERW
Thickness:
0.4 - 50 Mm
Product Description
4.76 X0.5Welded Low-Carbon Steel Tubing SAE J 526 UNS G10080 and UNS G10100
Electric welded single wall steel tube is used is used for automobiles and refrigerator industries.
Most product features are quite similar to double wall tube.
Technical specification shall be meet with JAM101-94 and SAE JS526 b for automobile uses.
Dimension and specification
| O.D.(mm) | Thickness(mm) | Weight(g/m) | Assurance Pressure(kg/cm3) |
| 4.00 | 0.50 | 43.21 | 250 |
| 4.20 | 0.50/0.70 | 45.68/60.50 | 250 |
| 4.76 | 0.70 | 70.18 | 250 |
| 6.00 | 0.70 | 91.61 | 250 |
| 6.35 | 0.70 | 97.66 | 250 |
| 8.00 | 0.7/1.0 | 126.18/172.85 | 200 |
| 9.53 | 0.7/1.0 | 152.63/210.63 | 200 |
| 10.0 | 0.7/1.0 | 160.75/222.24 | 200 |
Chemical Composition
C ≤ 0.12%
Mn ≤ 0.50%
P≤ 0.04%
S≤ 0.045%
Mechanical properties
Tensile strength ≥30kgf/mm2
Yield point ≥18kgf/mm2
Elongation(50mm)≥25%
Hardness(HR30T)≤ 65
Tolerance of wall thickness
+/-0.08mm
