Welded Special Stainless Clad Pipes GB/T 18704 06Cr19Ni10 For Structural Purposes
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
ISO 9001 ISO14001 TS16949
Model Number:
GB/T 18704
Trading Properties
Minimum Order Quantity:
3 tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Ton per Year
Product Summary
Products Description: For Structural Purposes GB/T 18704 Welded Stainless Clad Pipes Steel Grade/Steel Material: Steel Grade Chemical composition % C Si Mn P S Ni Cr N 12Cr17Mn6Ni5N ≤0.15 ≤1.00 5.50-7.50 ≤0.050 ≤0.030 3.50-5.50 16.00-18.00 0.05-0.25 12Cr18Mn0Ni5N ≤0.15 ≤1.00 7.50-10.0 ≤0.050 ≤0.030 ...
Product Details
Highlight:
structural steel square tubing
,rectangular steel pipe
Characteristic:
Welded Stainless Clad Pipes
Material:
06Cr19Ni10, 12Cr18Ni9 Etc
Production Method:
Produced By Welded
Package:
In Bundles Or As Per Requests
End Protector:
Plain
Length:
1-8m
Type:
Clad Pipes
MTC:
EN10204.3.1
Product Description
Products Description:
For Structural Purposes GB/T 18704 Welded Stainless Clad Pipes
Steel Grade/Steel Material:
| Steel Grade | Chemical composition % | |||||||
| C | Si | Mn | P | S | Ni | Cr | N | |
| 12Cr17Mn6Ni5N | ≤0.15 | ≤1.00 | 5.50-7.50 | ≤0.050 | ≤0.030 | 3.50-5.50 | 16.00-18.00 | 0.05-0.25 |
| 12Cr18Mn0Ni5N | ≤0.15 | ≤1.00 | 7.50-10.0 | ≤0.050 | ≤0.030 | 4.00-6.00 | 17.00-19.00 | 0.05-0.25 |
| 12Cr18Ni9 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00-10.00 | 17.00-19.00 | ≤0.10 |
| 06Cr19Ni10 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00-11.00 | 18.00-20.00 | - |
Mechanical Property:
| Steel Grade | Yield Strength MPa | Tensile Strength MPa | Elongation % |
| ≥ | |||
| 12Cr17Mn6Ni5N | 245 | 520 | 25 |
| 12Cr18Mn0Ni5N | 245 | 520 | |
| 12Cr18Ni9 | 210 | 520 | 30 |
| 06Cr19Ni10 | 210 | 520 | |
Delivery Condition:
SNB, SB, SP, SS
Size Range:
OD: 12.7-325mm
WT: 0.8-12mm
Length: 1000-8000mm
Our regular size: 12.7x0.8mm, 48.3x1.6mm, 127x3.5mm etc
Clad Pipes Characteristic:
Good resilient
Easy to machine-shaping
Lost-cost
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:

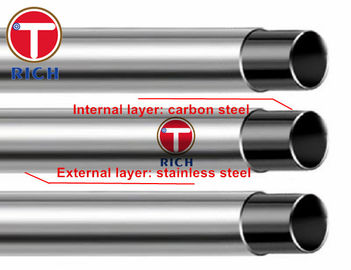

Inside carbon steel plate, wraped tightly outside stainless steel plate with welded continuous molding.
Raw Material Steel:
Production Line:
Eddy Current Test and Ultrasonic Test:
Quality Inspection in lab:
Packing:
For Structural Purposes GB/T 18704 Welded Stainless Clad Pipes
