Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in

Minimum Order Quantity : 10tons Price : 900-1200USD/ton
Packaging Details : In bundles or in wooden boxes packaging Delivery Time : 5-8 weekdays
Payment Terms : L/C, T/T Supply Ability : 60000tons per year
Place of Origin: China Brand Name: Torich
Certification: ISO9001 Model Number: ASTM A513

Detail Information

Material: SAE 1020 Standard: ASTM A513
Size: OD 4-420mm WT0.5-50mm Length: 12m Max
Type: ERW+Cold Drawn MTC: En10204.3.2B
High Light:

drawn over mandrel steel tubing

,

dom metal tubing

Product Description

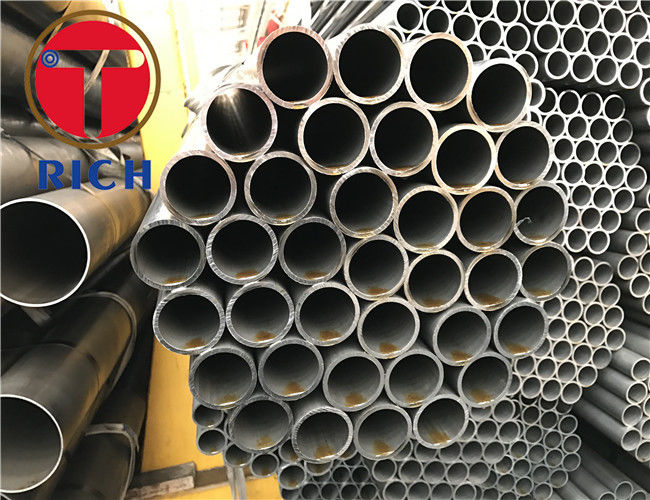

4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing

Quick detail


Material  1020 1010 etc
Standard ASTM A513
Production method Welded+cold drawn


Products Description:
4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing

DOM Steel Pipe

Steel Grade/Steel Material:
SAE1020 1020 Q235B etc carbon steel



Chemical composition :



C max

Mn max Si max P max S max
SAE1020 0.18-0.23 0.30-0.60   0.040 0.040
Q235B 0.20 1.4 0.35 0.045 0.045





Delivery Condition:
BK, BKW, BKS, GBK, NBK

Size Range:
OD: 4.0-420mm
WT:0.5-50mm
Length: max 12000mm
Our regularproduction size
125mm 139mm OD

Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing
Production Processs:
ERW tube and Cold Drawing or Cold Rolling Production


Raw Material ERW Tube:
4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing

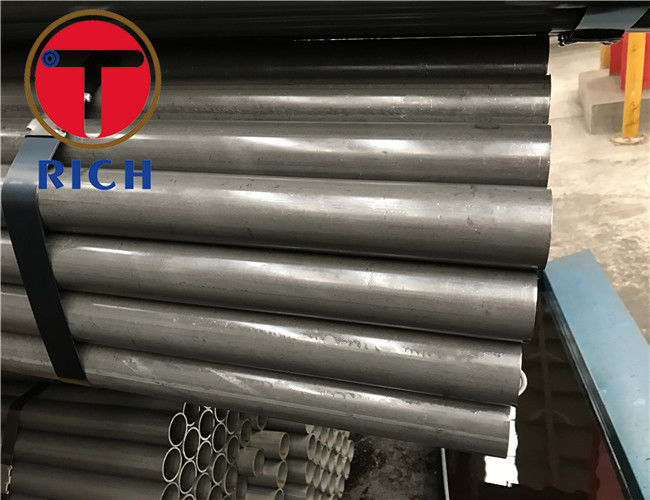

Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 0

Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 1

Production Line Cold Drawing:

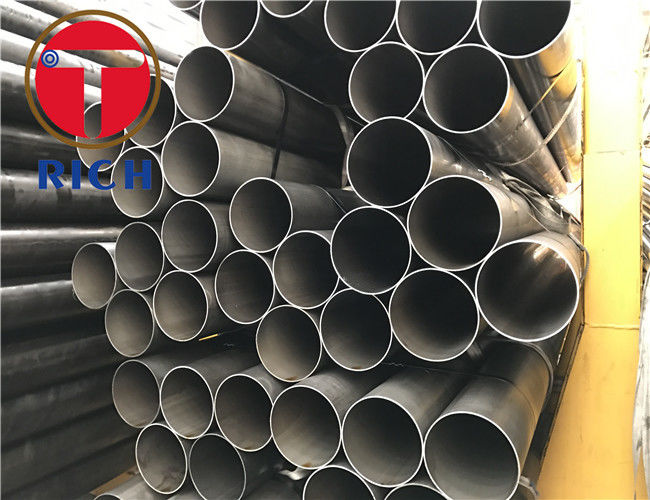

Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 2

Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 3


Quality Inspection for Dimension:

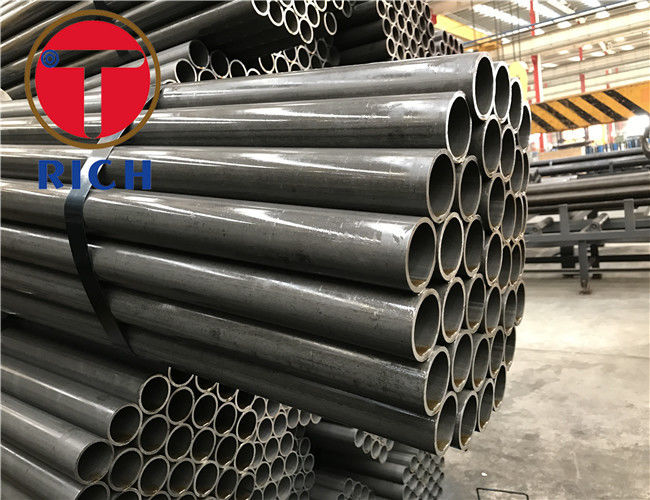

Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 4


Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 5



Eddy Current Test and Ultrasonic Test:

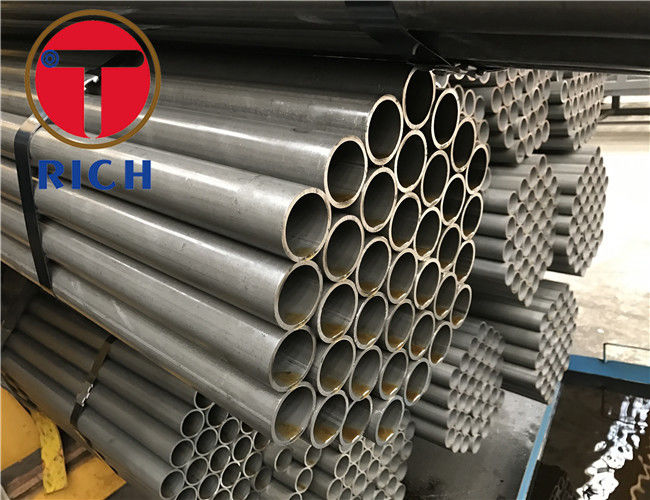

Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 6

Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 7

Quality Inspection in lab:
Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 8


Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 9

Packing:


Precision SAE 1020 ASTM A513 DOM Tubing 4.7mm 6.6mm 0.185in 0.26in 10

1. Torich is the STEEL TUBE MAKER company in China,playing a significant role in domestic market as well as international market.
2. Our products have exported to over 56 countries worldwide, winning a great fame among our customers.
3. There was no quality claim in the past 3 years.
4. First production was started since 1997, our boss worked in steel tube industry for over 10 years before started the own factory, factory engineers with over 30 years manufacturing experience, knowing well about production and inspection technology.
5. We have been exporting steel tubes since 10 years ago, and know well about international standard for steel tubes DIN/EN,ASTM,SAE,BS,GOST,JIS etc,also with great experience of International trading practices.
6. Our team take Timely action within 24 hours after receiving customers' first requirement and enquiry.
7. 100% prompt delivery in the past 3 years.
8. 100% dimensional check and 100% visual inspection on tube surfaces.
9. 100% eddy current test and ultrasonic test for detecting longitudinal and transversal defects.
10.Convenient tranportation: production location is 30 mins high speed train from Shanghai, 2 hours drive from Shanghai
