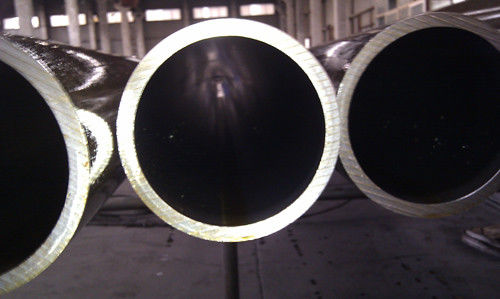

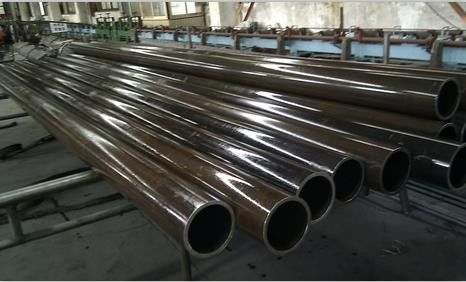

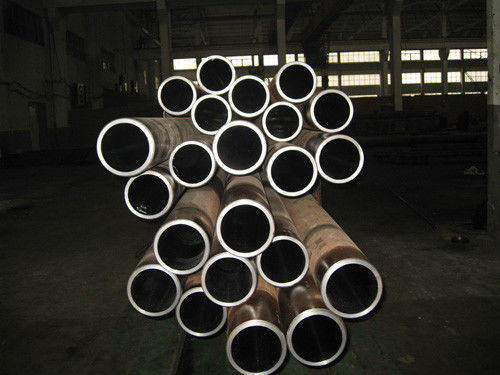

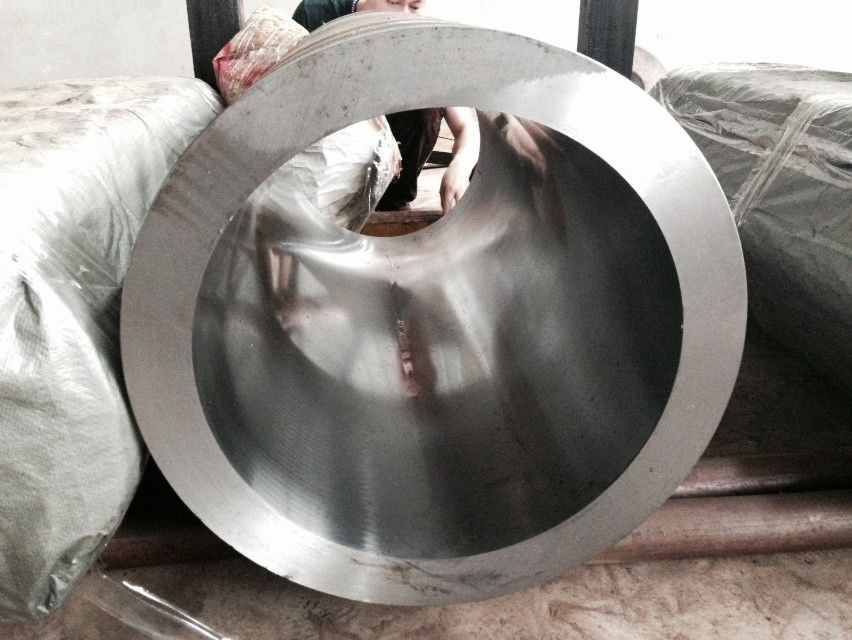

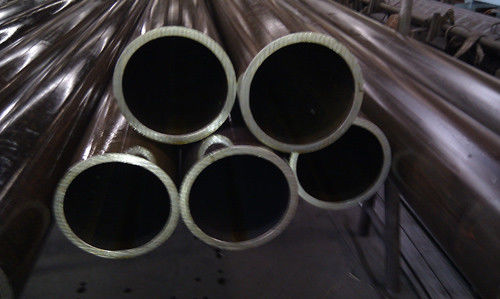

Precision Seamless Steel Hydraulic Cylinder Tubes
Product Details
precision seamless pipe
,precision pipes and tubes
Precision Seamless Cold Drawn Hydraulic Cylinder Steel Tubes EN10305-1 E235 E355 +Cc +LCc +SR +Ad +N NBK
Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes
Steel tubes for precision applications. Technical delivery conditions.
Applications:
Telescopic Cylinders/Hydraulic Cylinders/Auto shock absorber innder cylinder
Size range:
O.D.:6-650mm W.T.:1-35mm L:max12000mm
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel name | Steel number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
Note: Special steel grade is also available, according to customer request.
| Mechanical properties at room temperature | |||||||||||||
| Steel grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450f | 10 | 450 | 22 | 490-630 | 355 | 22 |
Heat Treatment: +C, +LC, +N, +SR
1.--Delivery: 60-70 days after receiving 30% T/T in advance
2.--Payment terms: 30% T/T in advance, the balance 70% paid before shipment.
3.--Packaging: antirust protection, In hexagon bundles
4.--Marks on pipes(tubes): Standard,Steel Grade, Size, Heat No.( or at the buyer's option).
5.--Mill Test Certificate:EN10204 3.1
