Heat Exchanger Tubes
Od 1200mm Astm A179 Heat Exchanger Tubes 1mm Thickness
ASTM A179 Heat Exchanger Tube Sheet Steel Pipe Flange Cover The accuracy of tubesheet processing, especially the pipe hole spacing and pipe diameter tolerance, perpendicularity and finish, greatly affect the assembly and service performance of the chemical equipment listed above. With the large...
Jis Standard Torich Heat Exchanger Tubing 40mm Thickness
ASTM A516 Gr.70 Tubular Slide Sheet For Evaporator And Seawater Desalination ASTM A516 Gr.70 Chemical composition: C≤0.30 Mn:0.79-1.3 P:≤0.035 Si:≤0.13-0.45 Evaluation criteria of tubesheet In the inspection process of tubesheet, the main inspection indexes are hole position, hole tolerance, hole ...
Heat Conduction Performance Orbital Welding Tube To Tube Sheet 1mm
Great Heat Conduction Performance Tube To Tube Sheet Orbital Welding Tubesheet Tubesheet is a kind of fitting that drills a hole slightly larger than the outer diameter of the pipe on the circular steel plate, penetrates the pipe, welds and fixes it. In the calculation of fixed tubesheet, the axial ...
16mn Heat Exchanger Tube Sheet For Pressure Vessel Steam Turbine
16Mn Heat Exchanger Tube Sheet For Pressure Vessel And Steam Turbine Product Name: steel pipe flange cover Executive standard: GB / JB / ANSI DIN ASME Product features: If the tubesheet flange is made of other materials, it will not be fused with stainless steel, and there will be small cracks in ...
ASTM A516 Gr 70 Tubular 40mm Exchanger Tube Sheet
ASTM A516 Gr.70 Heat Exchanger Tube Sheet For Tubular Heat Exchanger ASTM A516 Gr.70 Chemical composition: C≤0.30 Mn:0.79-1.3 P:≤0.035 Si:≤0.13-0.45 Different materials shall be used according to different service environments: 1. Generally, Q345R container plate, such as primary and secondary ...
Blind Plate Supporting Fixing Tubular OD6MM Heat Exchanger Tube Sheet Figure 8
The Figure 8 Blind Plate Supporting And Fixing Tubular Tubesheet Heat Exchanger The figure 8 blind plate is shaped like figure 8. One end is a blind plate and the other end is a throttling ring, The spectacle blind is a solid circle with a handle, which is used for systems that are normally isolated...
Round Seamless Torich Heat Exchanger Tubes Astm A213 Tp321
ASTM A213 TP321 Seamless Heat Exchanger Tubes Bright annealed stainless steel tubes as per following standard: ASTM A213 ASTM A269 EN10216-5 TC-1 Tolerance:D4/T3 (±0.5%,±0.1 min)/(±10%,±0.2 min) NDT Tests:Eddy Current or Hydraulic Test or UT Heat treatment on tubes: Bright Annealed stainless ...
ASTM A213 TP304 25.4x2.0 Seamless Heat Exchanger Tubes
ASTM A213 TP321 25.4X2.0 Seamless Heat Exchanger Tubes What kind of coiled tubing we can produce? unit:mm OD 4.76 WT 0.51 0.71 0.89 1.24 OD 6 WT 1 1.5 OD 6.35 WT 0.51 0.71 0.89 1.24 1.65 OD 7.94 WT 0.71 0.89 1.24 1.65 OD 9.53 WT 0.71 0.89 1.24 1.65 OD 10 WT 1 1.5 2 OD 12 WT 1 1.5 OD 12.7 WT 0.71 0...

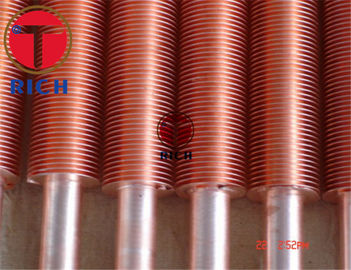

1 Inch - 2 Inch OD 140mm Heat Exchanger Tubes
1 Inch-2 Inch L/LL/LK Fin Tube L Fin Tube Heat Exchanger Fin Tube Heater Aluminum K foot Fin Tube L finned tubes, LL doubke L finned tubes, KLfinned tubes Material : Carbon steel ,Stainless Steel ,copper steel etc. Fin material:Aluminum,copper Fin thickness: Min 300μm -800μm This type of fin has a ...
