Round Stainless Steel Heat Exchanger Tube High Efficiency Boiler Tube
Product Details
stainless steel round tube
,large diameter stainless steel tube

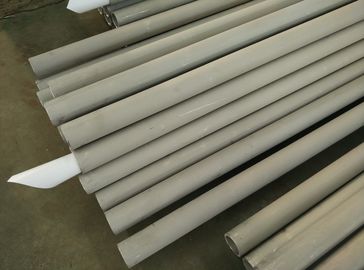

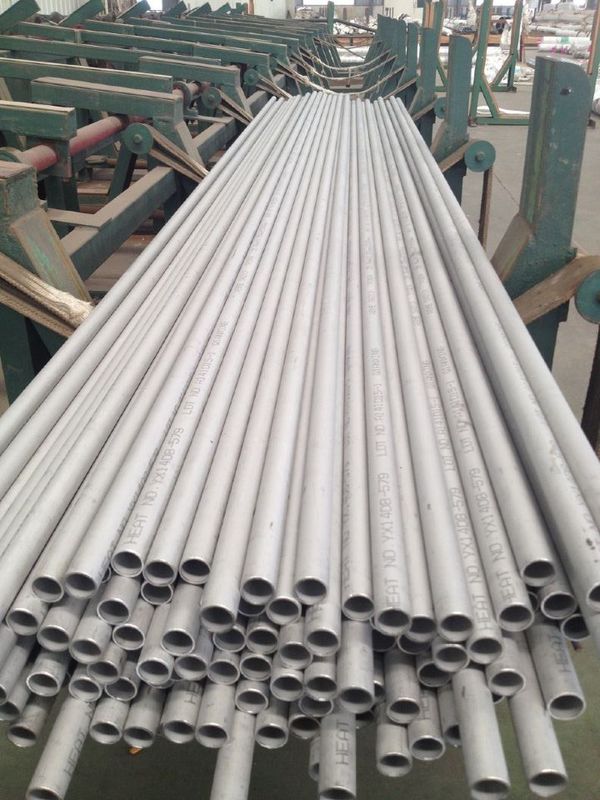

Round Stainless Steel Heat Exchanger Tube High Efficiency Boiler Tube Heat exchanger tube bundles
Standard :ASTM A213 ASTM A269 ASTM A270 EN10216-5 ASTM B622 ASTM B516 ASTM A789,ETC
Dimension:O.D. 1/4‘’-1-3/4‘’(6.35-44.5mm)W.T. 0.028''-0.15''(0.71-3.81mm)
Length Max.30m
Type: U bend Tube /straight Tubing
Characteristic:
1.Advanced Technology of Cold drawn machine.
70 meters long cold drawn machine can produce 53 meters long for each pipe.+ Advanced technology for South Korea and Japan.It makes the more close dimension controls.
2.Advanced annealing Machine
A special bright annealing process,the heat treatment is performed in a so called closed furnace.The heat treated material is protected by an inter gas atmosphere,Which guarantees the Oxygen can not enter the furnace to contact with the materials.and react to form scale on or tarnish the materials.The surface finish is clean,bright and precision even for the tube with more than 24 meters.
3.Perfect Inspection Method &Equipment.
100%PMI test
100%Hydraulic test
100%Inner cleaned by sponge
100%Dimension test
100%Surface test
Detection equipments Max.30m
-
Auto Parts ASTM A513 Cold Rolling Welded Steel Tubes with DOM Production
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
25mm Diameter Bright Annealing Seamless Steel Tube for Hydraulic Systems
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Precision Seamless Black Phosphating Steel Tube for Hydraulic Systems
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
