ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1 Ton | Price : | USD 2500-3000 Per Ton |
|---|---|---|---|
| Packaging Details : | In bundles | Delivery Time : | 4-6 Weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 500 Tons Per Month |
| Place of Origin: | Zhejiang China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | ASTM 790 |
|
Detail Information |
|||
| Tensile Strength: | Greater Than 700MPa | Pressure: | 50MPa-300MPa |
|---|---|---|---|
| Single Length: | 100Meter-800Meter | Tolerance: | According Customer Requirement |
Product Description

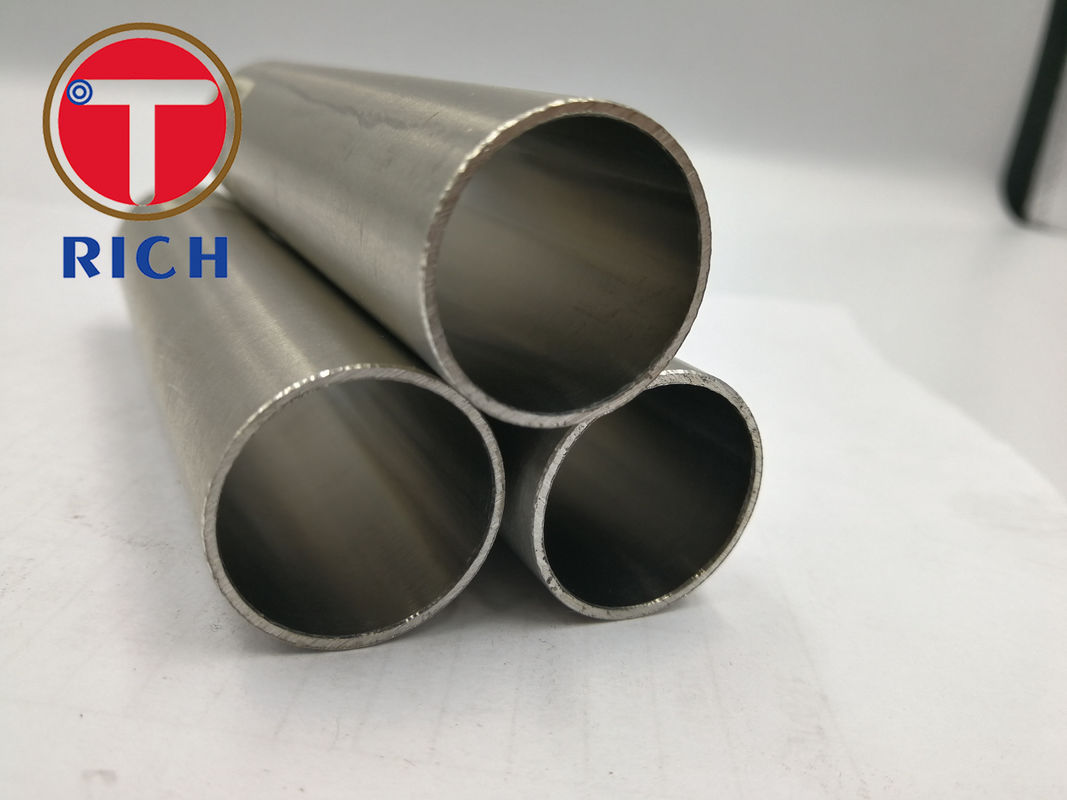

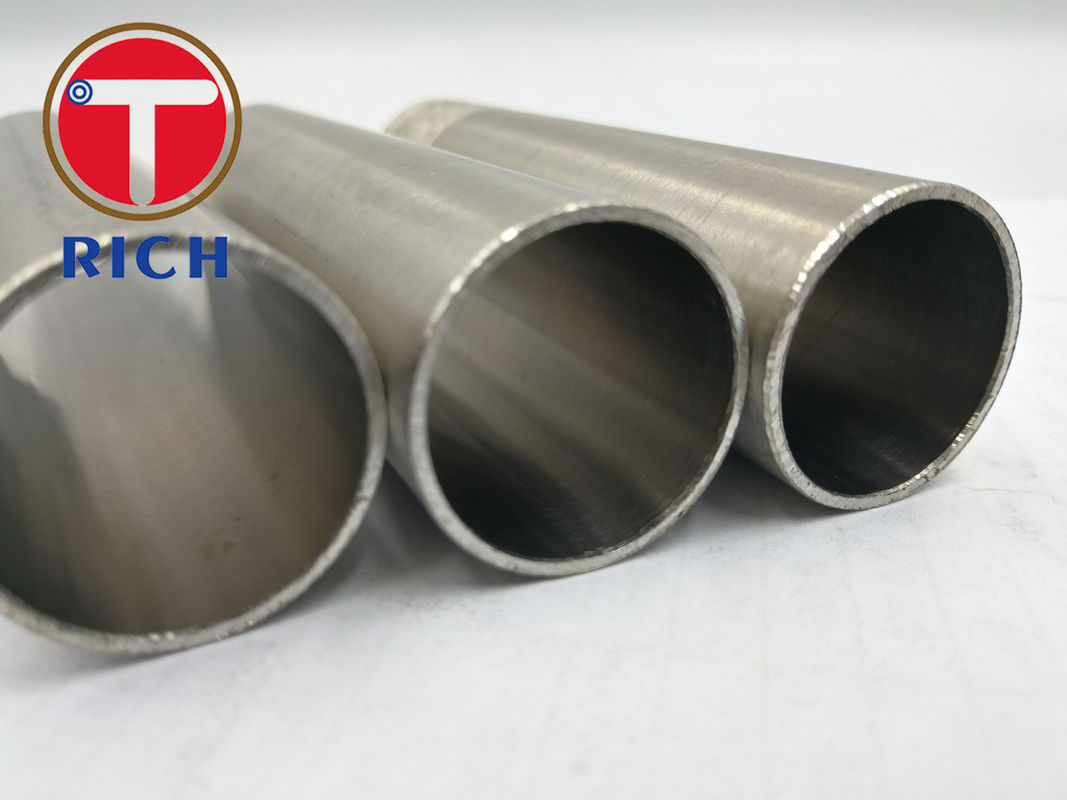

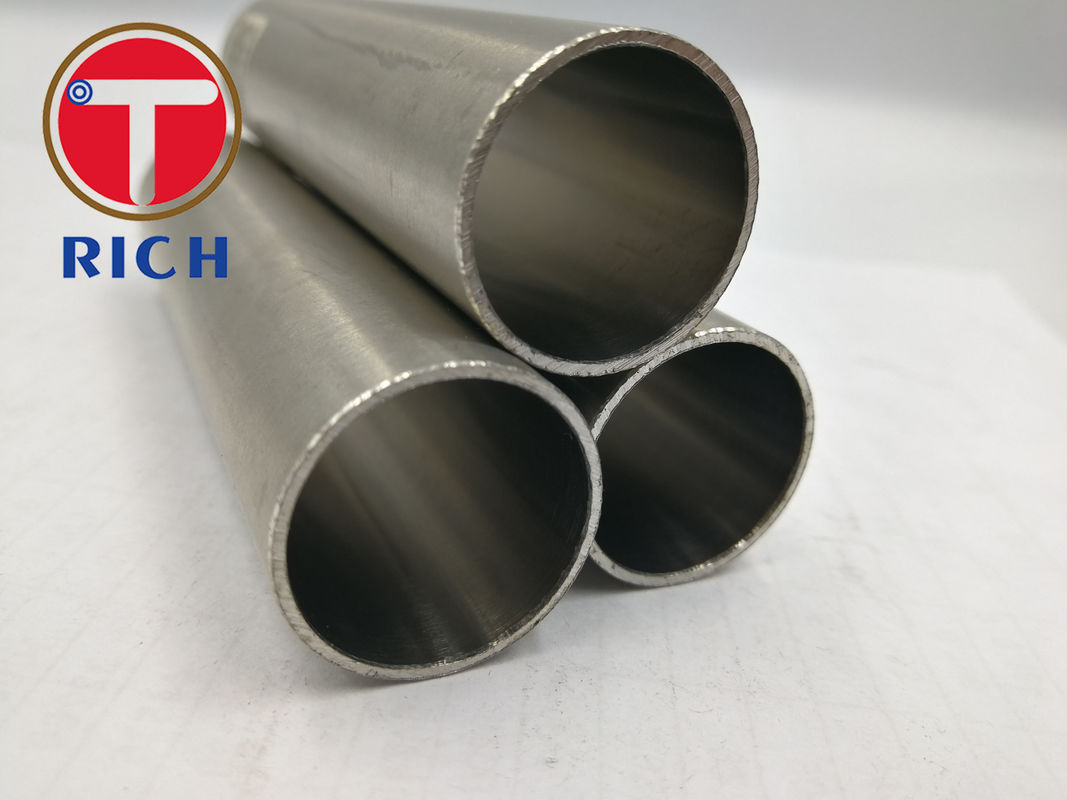

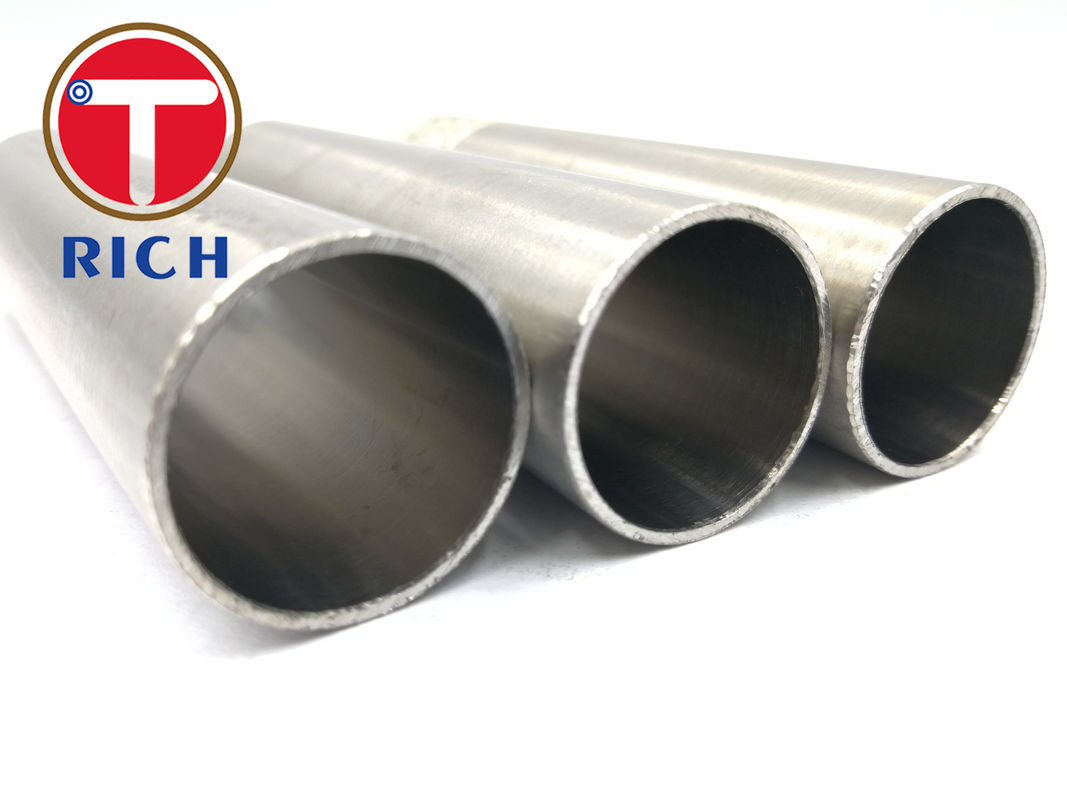

ASTM 790 2205 Duplex Stainless Steel Pipe Tube
1 . Outer Diameter : 10.3mm - 1219mm Material Grade : S32205 , S31803 , S32304 , S32750, 2205 , 2507 Etc
2 . Wall Thickness : 1.24mm - 59.54mm
3 . Length : As per customer’s requirement
4 . Standard : ASTM A789 ; ASTM A790 ; EN 10216-5ect .
| UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| max | max | max | max | max | ||||||
| S31803 ( F51 ) | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
| S32205 ( F60 ) | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
| S32750 ( F53 ) | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
| S32760 ( F55 ) | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
| Application | a) Petroleum |
| b) Chemical industry | |
| c) Instrument | |
| d) Industrial transportation | |
| e) Mechanical structure industry | |
| f) Need high corrision ability pipe's industry , such as offshore industry etc | |
| Advantages | a) Superior surface finish |
| b) Better mechanical property | |
| c) More precise dimension | |
| d) Perfect inspection method and inspection equipment |
