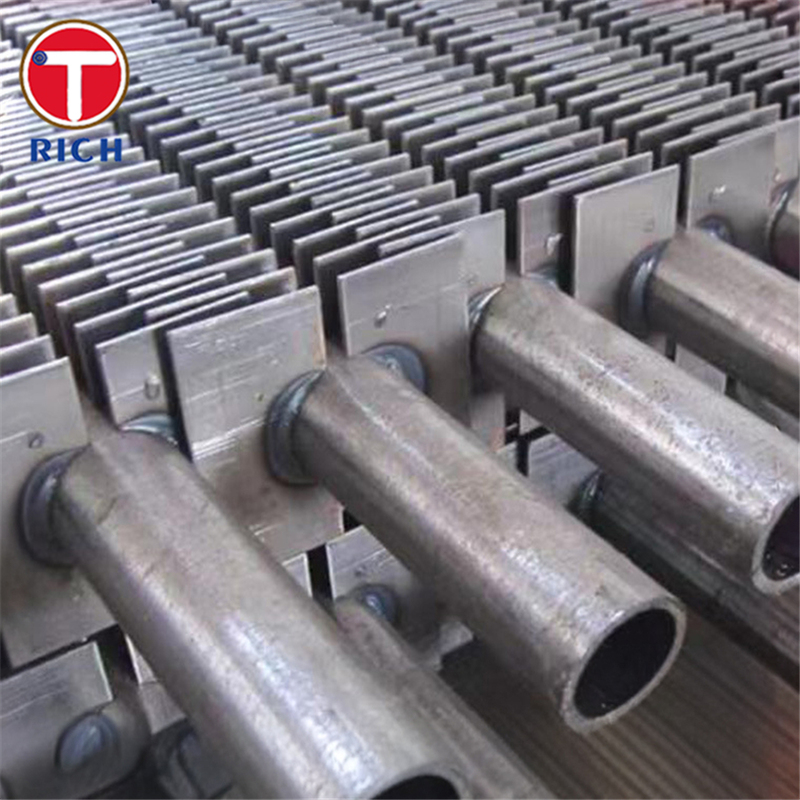

H/HH Type High-Frequency Welded Fin Tubes for Heat Exchangers
H/HH type high-frequency welded finned tubes are rectangular (H-shaped) or double-rectangular (HH) plate-finned tubes used as compact, high-efficiency heat-transfer elements in economizers, air preheaters and other gas-to-fluid heat exchangers. Two steel plates are resistance-welded to opposite sides of a round base tube, forming an “H” cross-section that greatly increases external surface area while creating straight flue-gas channels with low pressure drop and good soot-blowing accessibility.
Specifications
-
Base tube OD: 25–63 mm (other diameters on request)
-
Base tube wall thickness: ≥ 3.0 mm for boiler service
-
Maximum length: up to about 18 m per tube (depends on grade and handling limits)
-
Fin height: up to approx. 200 mm
-
Fin thickness: 1.5–3.5 mm
-
Fin spacing (pitch): typically 8–30 mm
-
Base tube materials: carbon steel, low-alloy steel, Cr-Mo alloy steel, austenitic stainless steel
-
Fin materials: carbon steel, low-alloy steel or stainless steel to match service conditions
Key Advantages
-
High thermal efficiency in a compact bundle
The rectangular H/HH plate fins provide several times the heating surface of a plain tube economizer of the same diameter and length, enabling much smaller, lighter heat-exchanger banks. -
Low wear, low fouling in dusty flue gas
H-type fin tubes are widely used for coal-fired units, CFB boilers and waste-incinerator economizers because the straight channels and expanded gas-flow area help reduce gas velocity, erosion and ash deposition compared with smooth or spiral-finned tubes. -
Robust high-frequency welded fin-to-tube bond
Automatic high-frequency resistance welding produces a continuous metallurgical bond along the fin edge with minimal heat-affected zone, giving high tensile strength at the joint and excellent resistance to vibration, thermal cycling and soot-blowing.
Chemical Composition
| Grade | Standard | C (wt%) | Si (wt%) | Mn (wt%) | P max (wt%) | S max (wt%) | Notes |
|---|---|---|---|---|---|---|---|
| A179 | ASTM A179/A179M | 0.06–0.18 | not specified | 0.27–0.63 | 0.035 | 0.035 | Low-carbon seamless heat-exchanger tube |
| A192 | ASTM A192/A192M | ≤0.08 | ≤0.25 | 0.30–0.60 | 0.035 | 0.025 | Carbon steel boiler tube for high-pressure service |
| A210 Gr. A1 | ASTM A210/A210M | ≤0.27 | ≥0.10 | ≤0.93 | 0.035 | 0.035 | Seamless medium-carbon boiler and superheater tube |
| 20G | GB 5310 | 0.17–0.23 | 0.17–0.37 | 0.35–0.65 | 0.025 | 0.015 | Chinese high-pressure boiler tube steel |
| P235GH | EN 10216-2 (1.0345) | ≤0.16 | ≤0.35 | ≤1.20 | 0.025 | 0.020 | Non-alloy pressure-tube steel for elevated temperature |
Values are ladle analysis limits from the respective standards; actual mill test results are typically within these ranges.
Mechanical Properties
| Grade | Condition / Product form | Tensile strength Rm (MPa) | Yield strength Re / Rp0.2 (MPa) | Elongation A (%) |
|---|---|---|---|---|
| A179 | Seamless, cold-drawn tube | ≥325 | ≥180 | ≥35 |
| A192 | Seamless boiler tube | ≥325 | ≈205 (typical minimum) | ≥30 (8 in) / ≥25 (2 in) |
| A210 Gr. A1 | Seamless boiler tube | ≥415 | ≥255 | ≥30 |
| 20G | Normalized tube | 410–550 | ≥245 | ≥24 |
| P235GH | Normalized tube, T ≤ 16 mm | 360–500 | ≥235 | ≥25 |
Applicable Standards
Base tubes for H/HH finned tubes are typically produced to:
-
ASTM / ASME: A179, A192, A210, A213 series for boiler and heat-exchanger tubes
-
EN: EN 10216-2 grades such as P235GH, P265GH for pressure service at elevated temperature
-
GB: GB/T 5310 high-pressure boiler tubes (e.g., 20G)
-
JIS / GOST: Equivalent boiler and pressure-tube grades as required by project specifications
Typical Applications
-
Power and industrial boilers: economizers, low-temperature economizers, air preheaters, waste-heat boilers
-
Waste-heat recovery: tail-flue gas coolers on coal-fired, oil-fired and waste-incineration units, CFB boilers and process furnaces
-
Process and marine sectors: fired-heater convection sections, process-gas coolers and marine exhaust-gas economizers using dust-laden, high-temperature gases
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
