Name: DOM Steel Tube 1026 Cold Drawn for Precision Machinery
Brand: TORICH INTERNATIONAL LIMITED
SKU: 1026 Dom Steel Tubing
Price: 800.00 USD
Availability: InStock

Home > products > DOM Steel Tube >

DOM Steel Tube 1026 Cold Drawn for Precision Machinery

DOM steel tube for precision machinery

1026 cold drawn steel tube

precision machinery DOM steel tube

Place of Origin:

Zhejiang/China

Brand Name:

TORICH

Certification:

ISO9001 ISO 14001 TS16949

Model Number:

1026 Dom Steel Tubing

Request A Quote

DOM Steel Tube 1026 Cold Drawn for Precision Machinery

Product Details

Application:

Precision Machinery

Standard:

ASTM,DIN,GB,JIS,API

Outer Diameter(round):

30 - 426 Mm

Thickness:

2 - 100 Mm

Technique:

Cold Drawn,Hot Rolled,Cold Rolled,ERW,Hot Rolled/Cold Drawn

Surface Treatment:

Galvanized,customerized,Copper Coated,Null,polished

Grade:

1026 1018 1030 1045 1050

Length:

6M Or As Requirement,As Customer's Require,

Highlight:

DOM steel tube for precision machinery

1026 cold drawn steel tube

precision machinery DOM steel tube

Payment & Shipping Terms

Minimum Order Quantity

1Ton

Price

700-900 USD/Ton

Packaging Details

In bundles or in wooden boxes.

Delivery Time

20-30days upon products

Payment Terms

L/C,D/A,D/P,Western Union,T/T,MoneyGram

Supply Ability

60000 Ton/Tons per Year

DOM Steel Tube 30-325mm OD Cold Drawn for Mechanical Applications

Get Best Price

video

Drawn Over Mandrel Tubing ERW Welded Alloy Steel Tube For Mechanical Equipment

Get Best Price

video

Welded Cold Drawn OD 350mm E195 E155 DOM Steel Tube

Get Best Price

video

High Precision DIN 2391 24mm Cold Drawn Seamless Tube

Get Best Price

86-574-88086983

Contact Now

Product Description

DOM Steel Tubing 1026 Drawn Over Mandrel Steel Tube

Premium cold drawn over mandrel (DOM) steel tubing designed for precision machinery applications, offering exceptional dimensional accuracy and superior surface finish.

Product Attributes

Attribute	Value
Application	Precision Machinery
Standard	ASTM, DIN, GB, JIS, API
Outer diameter (round)	30 - 426 mm
Thickness	2 - 100 mm
Technique	Cold Drawn, Hot Rolled, Cold Rolled, ERW, Hot Rolled/Cold Drawn
Surface treatment	Galvanized, customized, Copper Coated, Null, polished
Grade	1026, 1018, 1030, 1045, 1050
Length	6M or as requirement, As customer's require

Material Specifications

AISI 1026 is a medium-carbon steel known for its balanced combination of strength, ductility, and machinability. Produced via cold drawn over mandrel (DOM) processing, it achieves a refined surface finish and tight dimensional tolerances suitable for high-precision applications.

Grade: AISI/SAE 1026 (UNS G10260)
Process: Cold Drawn Over Mandrel (DOM)
Shape: Round tube
Outside Diameter Tolerance: ±0.005″ (0.127 mm)
Wall Thickness Tolerance: ±0.005″ (0.127 mm)
Available Lengths: Cut lengths up to customer requirement or continuous coils
Surface Finish: Maximum 32 μin Ra

Chemical Composition (%)

Grade	C	Mn	P (max)	S (max)	Si	Balance Fe
1026	0.220-0.280	0.60-0.90	≤ 0.040	≤ 0.050	0.15-0.35	Remainder
1018	0.150-0.200	0.60-0.90	≤ 0.040	≤ 0.050	0.15-0.30	Remainder
1030	0.270-0.340	0.60-0.90	≤ 0.040	≤ 0.050	0.15-0.35	Remainder
1045	0.420-0.500	0.60-0.90	≤ 0.040	≤ 0.050	0.15-0.35	Remainder
1050	0.470-0.550	0.60-0.90	≤ 0.040	≤ 0.050	0.15-0.35	Remainder

Mechanical Performance

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness
1026	490 (71,100 psi)	415 (60,200 psi)	34	~149 HV
1018	440 (63,800 psi)	370 (53,700 psi)	15	~120 HV
1030	410-515	305-375	25-38	~150 HB
1045	570-700	300-530	12-16	170-210 HB
1050	~636	~365	15-23	~200 HB

Key Features

Exceptional Dimensional Accuracy: Tight OD and wall-thickness tolerances ensure precise fit
Superior Surface Finish: DOM process yields smooth, burr-free surfaces for reduced friction
Enhanced Straightness: Rigorous straightening produces minimal runout
Balanced Strength & Ductility: Medium-carbon content offers a strong yet formable tube
Excellent Machinability: Cold-drawn surfaces extend tool life and deliver fine finishes

Compliance Standards

ASTM A108: Cold-finished carbon steel bars and shafts
EN 10277-1: Cold-drawn weldable steel precision tubes - General requirements
GOST 8734-75: Seamless precision steel tubes
JIS G3445: Steel pipes for precision mechanical applications
GB/T 3639: Cold-drawn precision seamless steel tubes

Application Fields

DOM Steel Tubing 1026 is widely used across:

Hydraulic Systems: Cylinder barrels, piston rods, and pressure lines for smooth actuation and leak-free performance
Pneumatic Equipment: Precision cylinders and guidance shafts for compressors and actuators
Automotive: Steering columns, transmission shafts, and suspension components demanding tight tolerances
Machine Tools: Guide rails, spindle shafts, and feed bars where straightness and finish are critical
General Precision Machinery: Rollers, dowel pins, and couplings in robotics, aerospace ground support, and measurement instruments

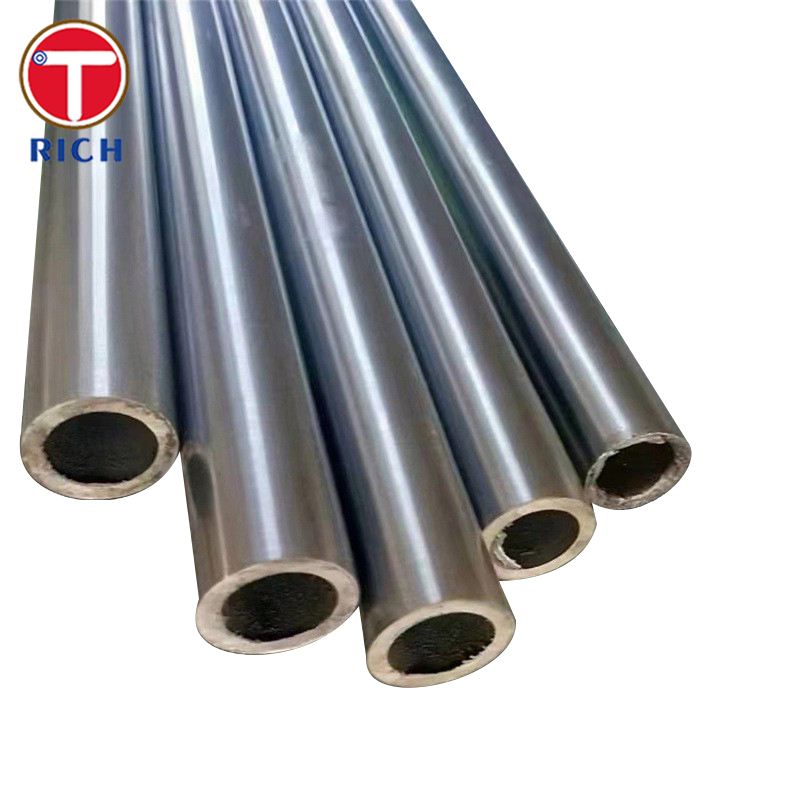

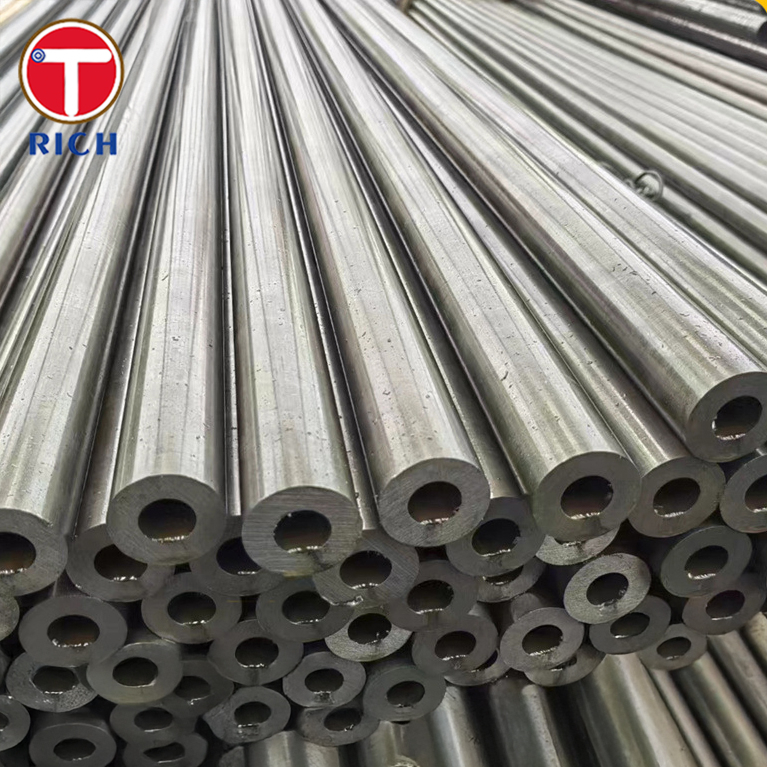

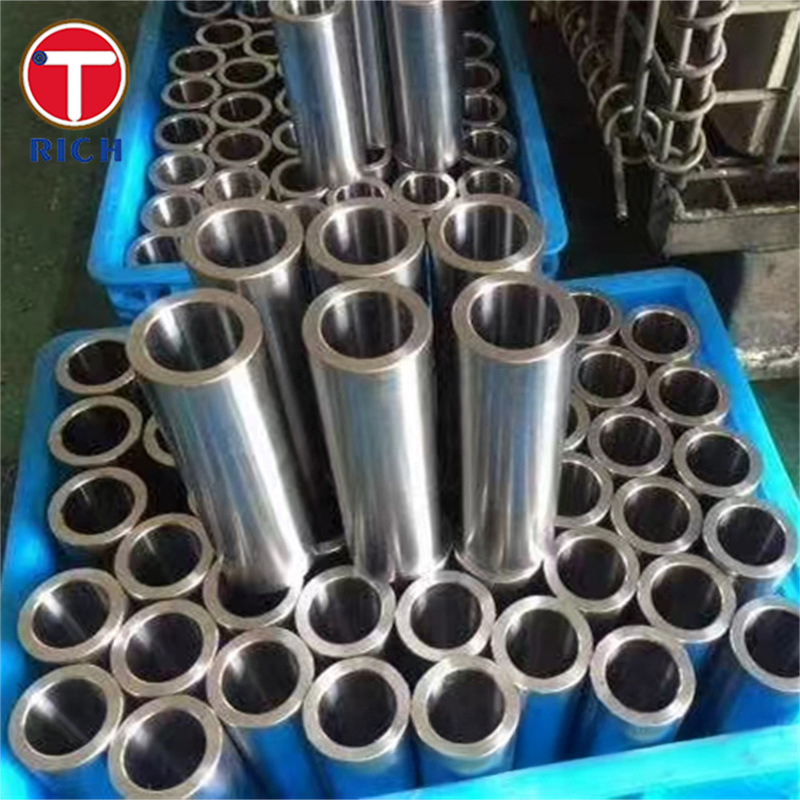

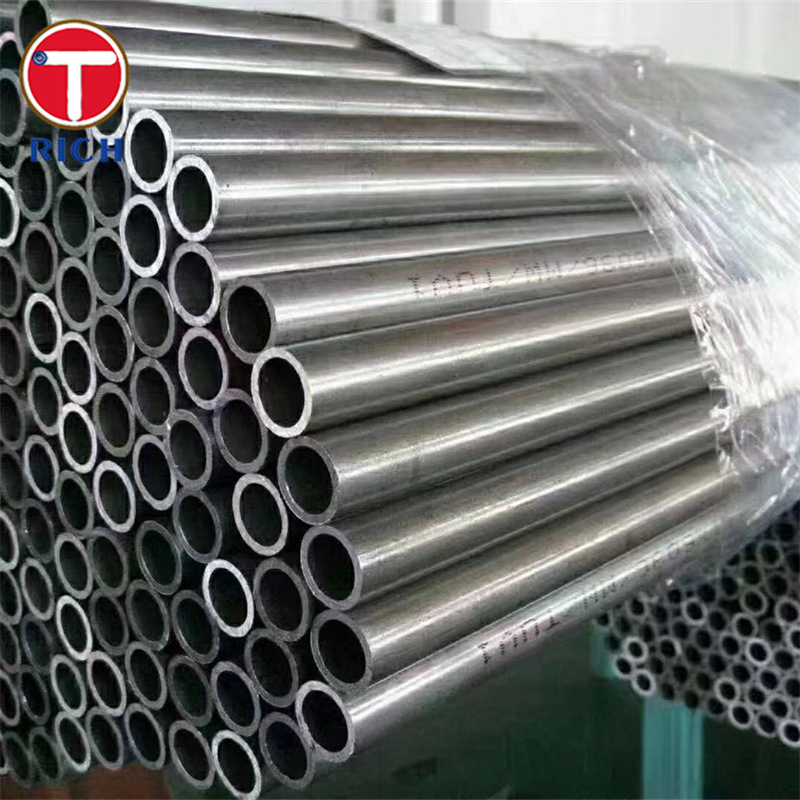

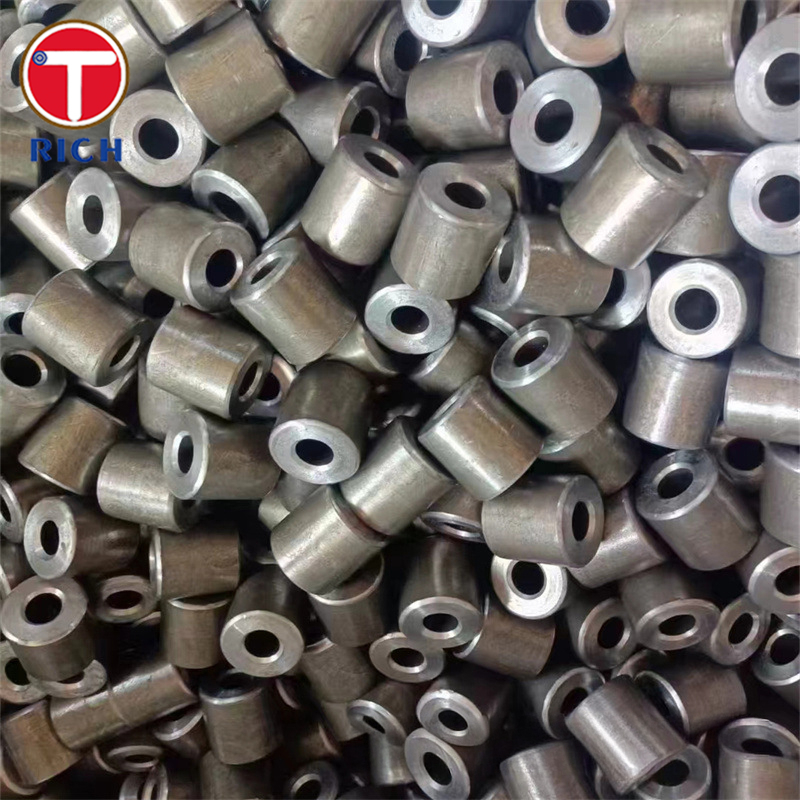

Product Gallery

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer, but we also handle trading operations.

How long is your delivery time?

Generally, it takes 10-15 days if the goods are in stock, or 30-40 days if not in stock, depending on quantity requirements.

Do you provide samples? Is it free or extra?

Yes, we provide samples free of charge, but the customer needs to cover the freight costs.

What are your payment terms?

For orders ≤ $2000 USD: 100% payment in advance. For orders ≥ $2000 USD: 30% T/T deposit with balance due before shipment. Please contact us for any other questions.
