ASTM A269 S316L PVC Coated Corrosion Resistant Stainless Steel Coiled Tubing for Long Coil Length Water Supply
Basic Properties
Place of Origin:
Zhejiang/China
Brand Name:
TORICH
Certification:
ISO9001 ISO 14001 TS16949
Model Number:
304 PVC Coated Stainless Steel Tubing
Trading Properties
Minimum Order Quantity:
1Ton
Price:
800-1300 USD/Ton
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
60000 Ton/Tons per Year
Product Summary
ASTM A269 S316L PVC Coated Stainless Steel Coiled Tubing For Water Supply Product Overview ASTM A269 S316L PVC Coated Stainless Steel Coiled Tubing is a corrosion-resistant, cold-formed austenitic stainless steel tube designed for continuous water supply lines where long coil length, clean internal ...
Product Details
Highlight:
PVC Coated Stainless Steel Tubing
,BA Stainless Steel Coiled Tubing
,Stainless Steel Tubing BA
Material:
Austenitic Stainless Steel Tube With External PVC Coating
Main Standard:
ASTM A269 / A269M
Grade:
S316L / TP316L / UNS S31603
Outer Diameter:
Commonly 3 Mm–32 Mm; Custom Sizes Available
Wall Thickness:
Commonly 0.3 Mm–3.0 Mm; Selected By Pressure And Bending Radius
Length:
1–12 M Straight Length Available; Long Coils Can Be Supplied As Project-specific Spools
Straightness:
Coil Form Supplied Level-wound; Straightened Cut Lengths Available On Request
Heat Treatment:
Solution Annealed / Heat-treated Condition As Required By ASTM A269
Product Description
ASTM A269 S316L PVC Coated Stainless Steel Coiled Tubing For Water Supply
Product Overview
ASTM A269 S316L PVC Coated Stainless Steel Coiled Tubing is a corrosion-resistant, cold-formed austenitic stainless steel tube designed for continuous water supply lines where long coil length, clean internal flow, external abrasion protection, and chloride resistance are required.
The core tube is ASTM A269 TP316L / UNS S31603 stainless steel, supplied in heat-treated condition. The external PVC layer adds physical protection against abrasion, atmospheric exposure, and galvanic contact while keeping the 316L stainless steel bore suitable for water transmission.
Technical Specifications
| Item | Description |
|---|---|
| Material | Austenitic stainless steel tube with external PVC coating |
| Main Standard | ASTM A269 / A269M |
| Grade | S316L / TP316L / UNS S31603 |
| Tube Type | Seamless or welded coiled tubing; seamless preferred for high-integrity water lines |
| Outer Diameter | Commonly 3 mm-32 mm; custom sizes available |
| Wall Thickness | Commonly 0.3 mm-3.0 mm; selected by pressure and bending radius |
| Length | 1-12 m straight length available; long coils can be supplied as project-specific spools |
| Tolerance Range | OD and WT per ASTM A269; tighter tolerances available by agreement |
| Surface Condition | Bright annealed, pickled, passivated, or polished stainless core; external PVC coated |
Key Features
| Feature | Technical Value |
|---|---|
| Low-carbon 316L chemistry | Carbon is limited for TP316L, reducing sensitization risk after welding and improving resistance to intergranular corrosion. |
| Molybdenum-bearing stainless core | TP316L contains approximately 2.00-3.00% Mo, giving better pitting and crevice-corrosion resistance than 304-series stainless steels in chloride-bearing water. |
| Heat-treated ASTM A269 tube | ASTM A269 requires tubing to be furnished in heat-treated condition and to meet hardness and verification test requirements. |
| PVC external protection | The PVC layer helps reduce abrasion damage, atmospheric corrosion influence, and metal-to-metal galvanic contact during installation. |
| Coiled delivery | Fewer joints are needed compared with short straight pipes, reducing potential leakage points in water supply routing. |
Quality Assurance
| Professional Concern | Practical Solution |
|---|---|
| "Will the tubing resist chloride-related corrosion in water supply systems?" | We use ASTM A269 TP316L / UNS S31603 as the base material. Its 16-18% Cr, 10-15% Ni, and 2-3% Mo composition supports better chloride pitting resistance than 304-type stainless steel. |
| "Will the tube be verified before shipment?" | Each production lot can be supplied with material test reports covering chemistry, heat treatment, hardness, dimensions, and hydrostatic or nondestructive electric testing in line with ASTM A269 requirements. |
| "Can the coating survive installation handling?" | The PVC jacket is specified as an external protective layer to reduce abrasion, galvanic contact, and atmospheric exposure during routing, bundling, and installation. |
Applicable Standards
| Standard System | Reference |
|---|---|
| ASTM | ASTM A269 / A269M: Seamless and welded austenitic stainless steel tubing for general service |
| ASME | ASME SA269: Boiler and pressure vessel equivalent specification for austenitic stainless tubing |
| EN | EN 10216-5 or EN 10217-7 for stainless steel tubes; EN 1.4404 as the common European equivalent of 316L |
| JIS | JIS G3459 SUS316L stainless steel pipe/tube reference |
| GB | GB/T 14976 or GB/T 21833 stainless steel seamless/welded tube references; 022Cr17Ni12Mo2 as common 316L-type designation |
Primary Application
Water supply manifold connection tubing for building potable water distribution systems.
Chemical Composition
| Grade | UNS | C Max | Mn Max | P Max | S Max | Si Max | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|---|
| TP304 | S30400 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00-20.00 | 8.00-11.00 | -- |
| TP304L | S30403 | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 18.00-20.00 | 8.00-12.00 | -- |
| TP316 | S31600 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| TP316L | S31603 | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00-18.00 | 10.00-15.00 | 2.00-3.00 |
Mechanical Properties
| Grade | UNS | Tensile Strength Min | Yield Strength Min | Elongation Min | Hardness Max |
|---|---|---|---|---|---|
| TP304 | S30400 | 515 MPa | 205 MPa | 35-40% | 192 HBW |
| TP304L | S30403 | 485 MPa | 170 MPa | 35-40% | 192 HBW |
| TP316 | S31600 | 515 MPa | 205 MPa | 35-40% | 192 HBW |
| TP316L | S31603 | 485 MPa | 170 MPa | 35-40% | 192 HBW |

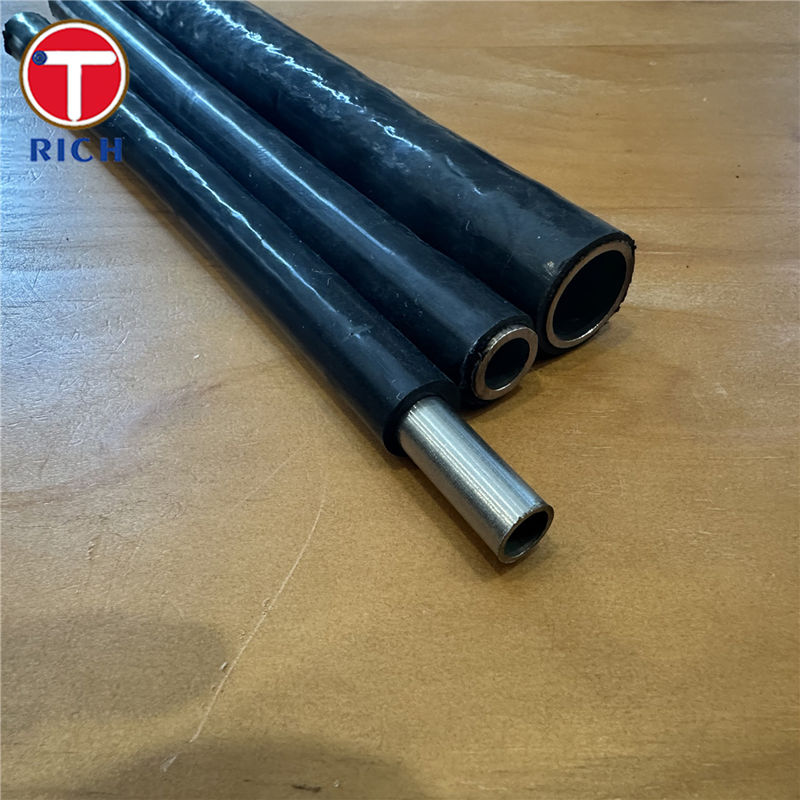

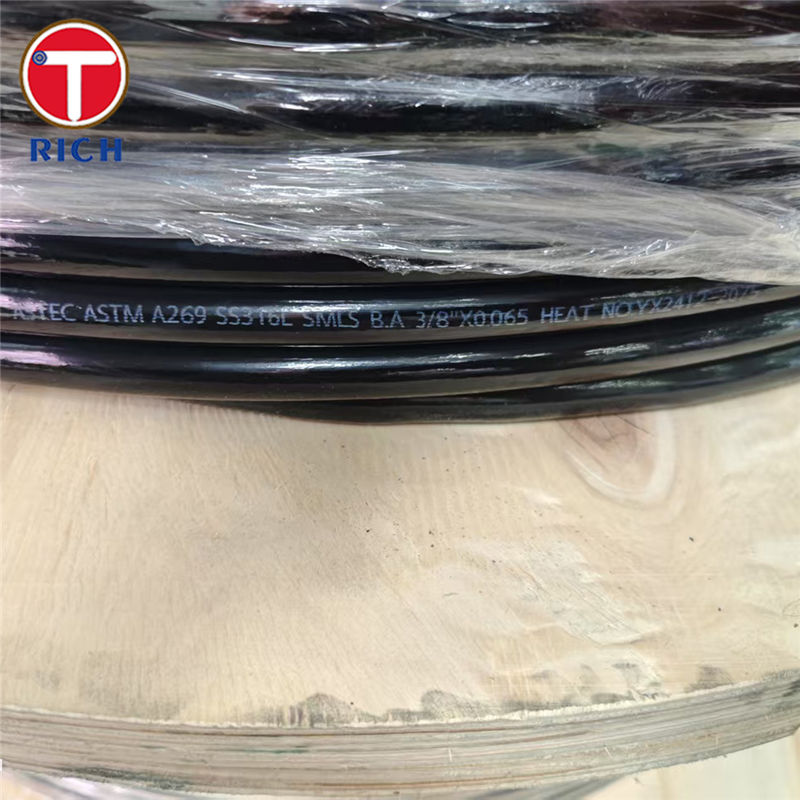

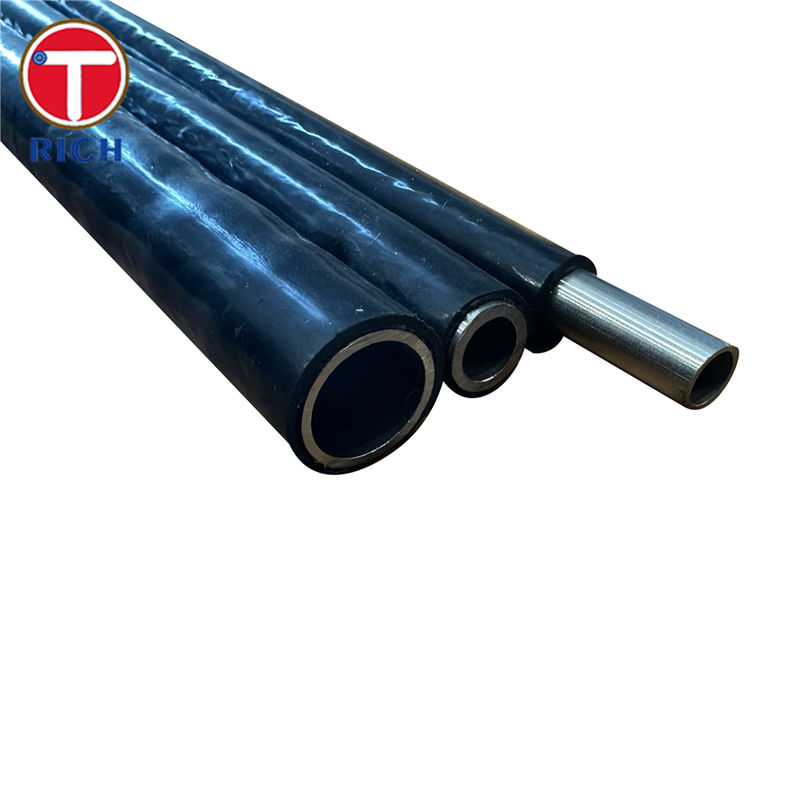

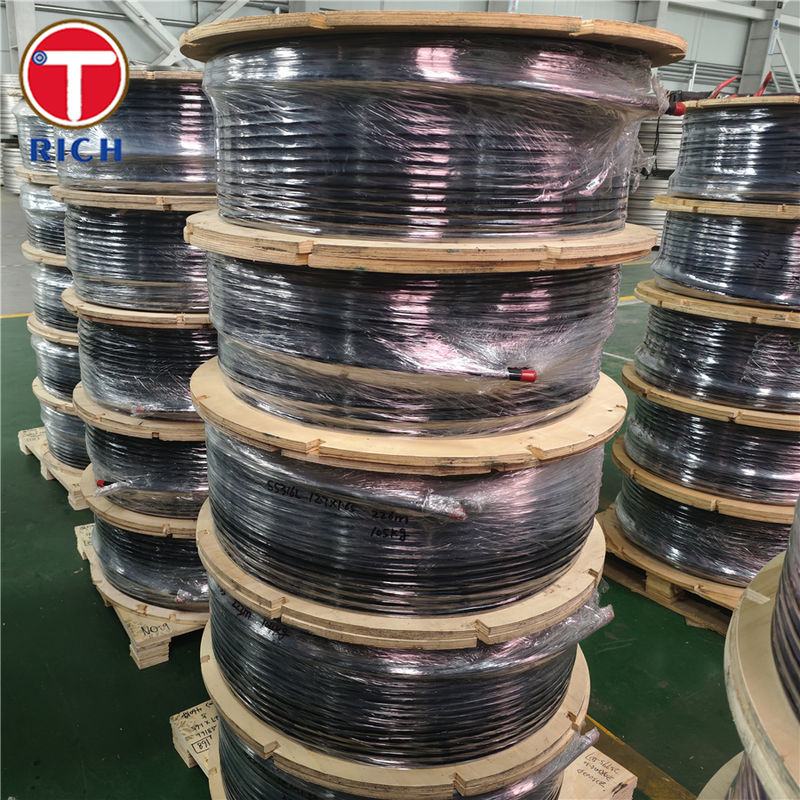

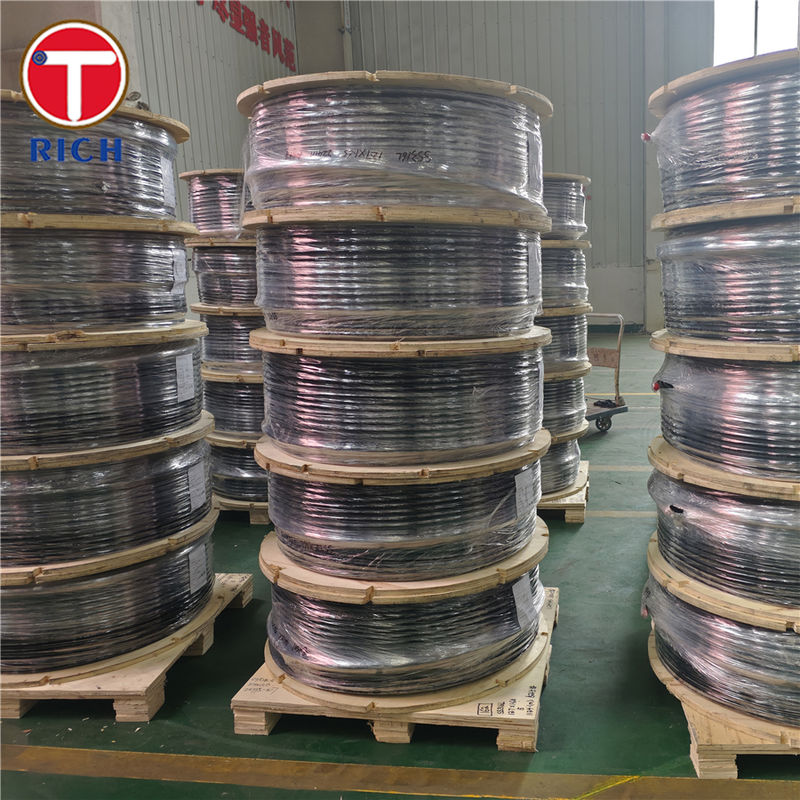

Product Images
Frequently Asked Questions
Are you trading company or manufacturer?
Manufacturer, also can do trading.
How long is your delivery time?
Generally speaking, it is 10-15 days if the goods are in stock, or it is 30-40 days if the goods are not in stock, according to quantity.
Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but need pay the cost of freight.
What is your terms of payment?
Payment <= 2000 USD, 100% in advance. Payment >= 2000 USD, 30% T/T in advance, balance before shipment. If you have another question, please feel free to contact with me.
