Schedule 40 SCH 40S Stainless Steel Seamless Pipe For General
Product Details
General Stainless Steel Pipe
,Schedule 40 Stainless Steel Pipe
,SCH 40S Stainless Steel Pipe

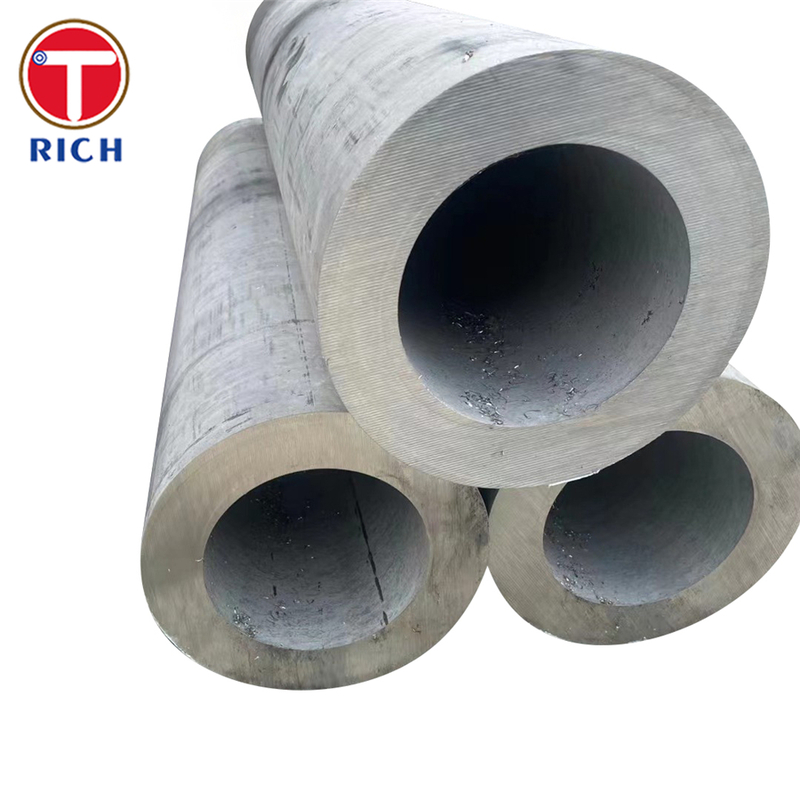

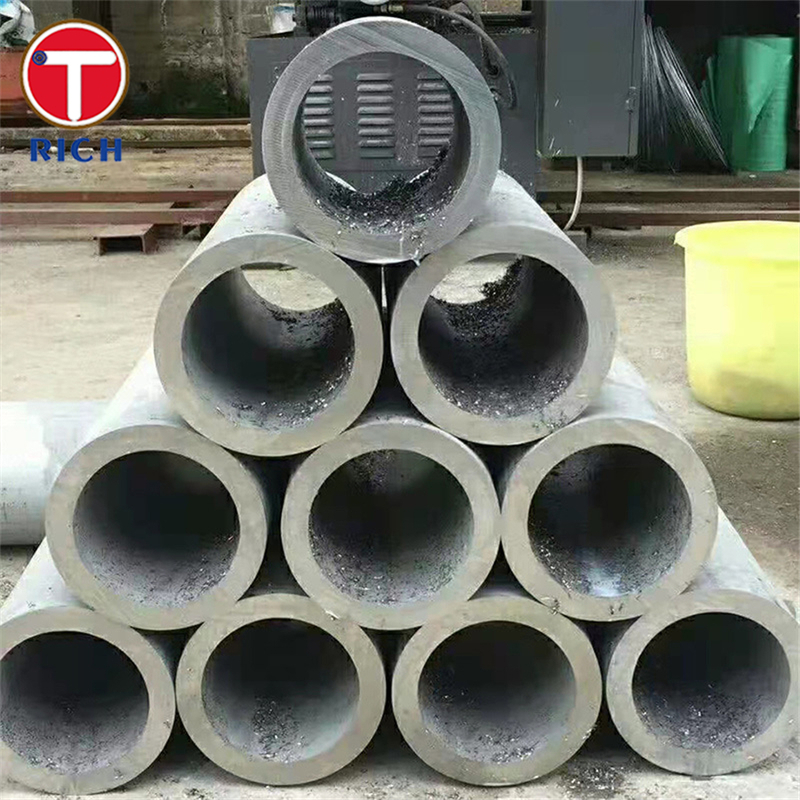

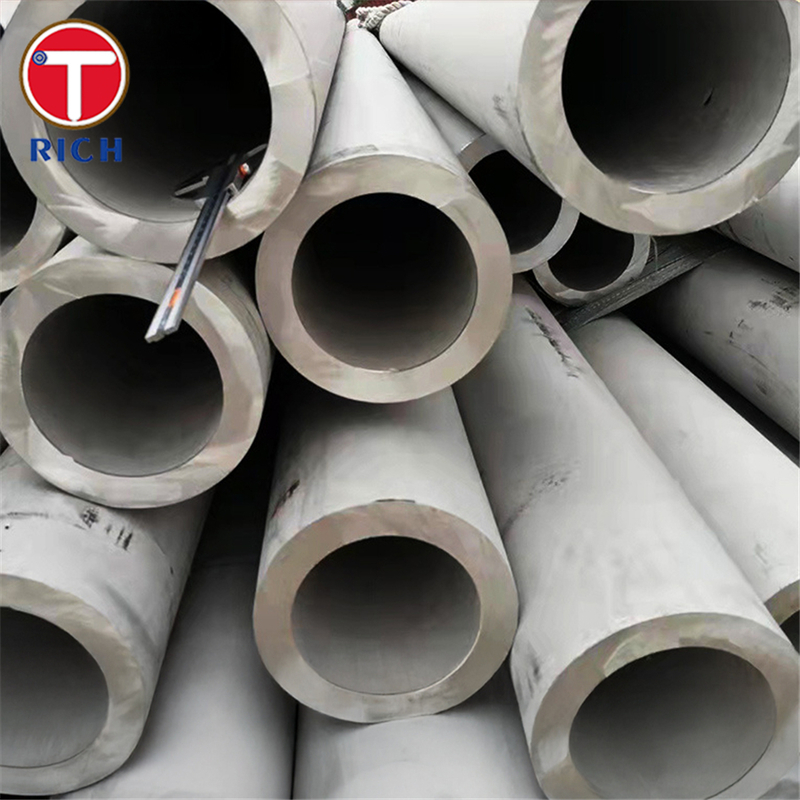

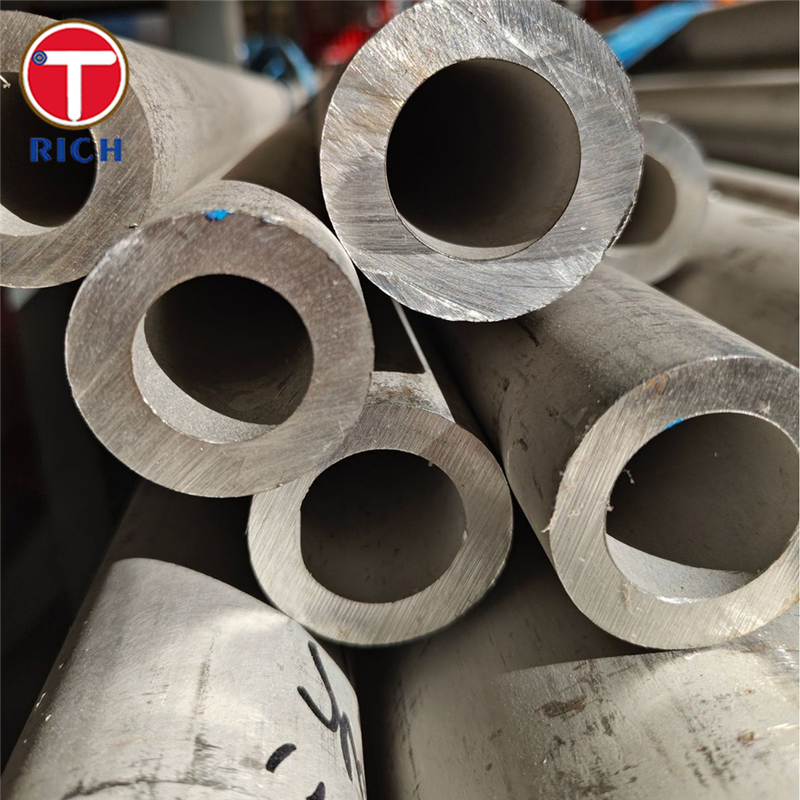

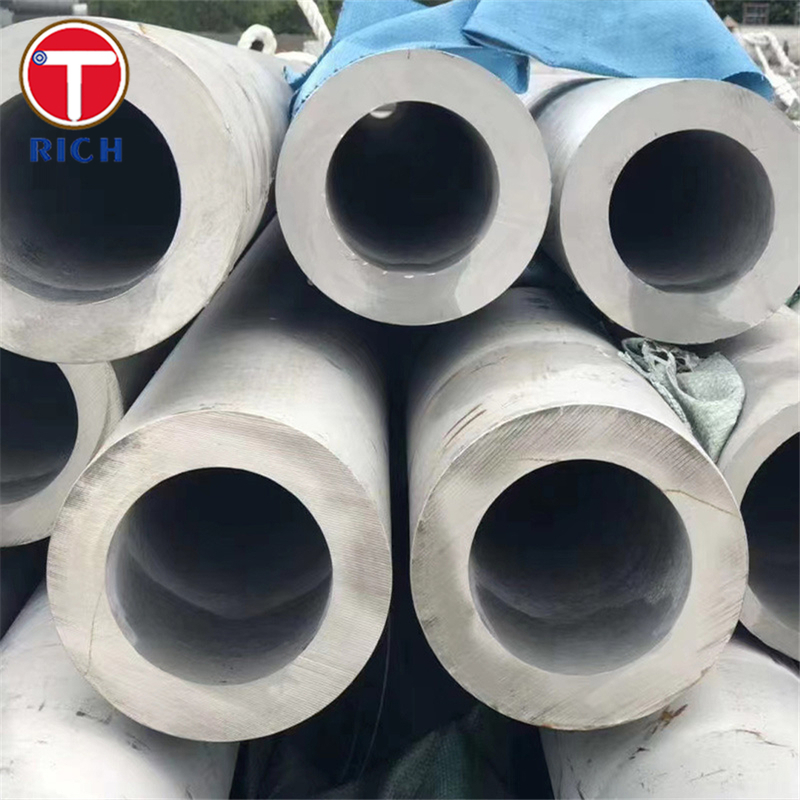

Schedule 40 Steel Pipe SCH 40S Stainless Steel Seamless Pipe For General Applications
Schedule 40 steel pipes, particularly SCH 40S stainless steel seamless pipes, are widely used in various industries due to their strength, corrosion resistance, and versatility. These pipes are manufactured to meet specific standards for dimensions, mechanical properties, and chemical composition, making them suitable for general-purpose applications in construction, plumbing, and industrial use.
Material
SCH 40S stainless steel seamless pipes are generally made from seamless stainless steel grades such as 304, 316, or other alloy compositions designed for excellent corrosion resistance and durability. These materials ensure longevity and reliability under various environmental conditions.
Specification
- Standard: ASTM A312, ASTM A213
- Type: Seamless
- Schedule: 40S (Standard Wall Thickness)
- Diameter: Typically ranging from 1/8" to 24" nominal pipe size (NPS)
- Length: Standard cut lengths or customized
Chemical Composition
The chemical composition varies depending on the stainless steel grade. Below is the typical chemical composition for two common SCH 40S stainless steel grades: 304 and 316.
| Element | 304 Stainless Steel (%) | 316 Stainless Steel (%) |
|---|---|---|
| Carbon (C) | 0.08 max | 0.08 max |
| Chromium (Cr) | 18.0 - 20.0 | 16.0 - 18.0 |
| Nickel (Ni) | 8.0 - 10.5 | 10.0 - 14.0 |
| Manganese (Mn) | 2.0 max | 2.0 max |
| Silicon (Si) | 1.0 max | 1.0 max |
| Phosphorus (P) | 0.045 max | 0.045 max |
| Sulfur (S) | 0.03 max | 0.03 max |
| Molybdenum (Mo) | - | 2.0 - 3.0 |
Mechanical Properties
Here are typical mechanical properties of SCH 40S seamless stainless steel pipes by grade:
| Property | 304 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Tensile Strength | 515 MPa (min) | 515 MPa (min) |
| Yield Strength | 205 MPa (min) | 205 MPa (min) |
| Elongation (%) | 40% (min) | 40% (min) |
| Hardness (HRB) | Approx. 79 | Approx. 79 |
| Temperature Range | -196°C to 870°C | -196°C to 870°C |
Key Features
- Corrosion Resistance: Excellent resistance to oxidation and corrosion in multiple environments, including atmospheric and mild chemical.
- Seamless Construction: Provides enhanced strength, integrity, and prevents leakage.
- Durability: High tensile and yield strength for heavy-duty applications.
- Versatility: Suitable for piping systems, structural applications, and fluid transport.
- Easy Fabrication: Can be welded, bent, and machined with standard tools.
- Smooth Interior Surface: Offers minimal flow resistance for fluids and gases.
Equivalent Grades
| Standard | SCH 40S Stainless Steel Equivalent Grades |
|---|---|
| ASTM | A312 TP304, TP316 |
| EN | 1.4301 (304), 1.4401/1.4404 (316/316L) |
| GOST | 08X18H10 (304), 08X17H13M2T (316) |
| JIS | SUS304, SUS316 |
| GB | 0Cr18Ni9 (304), 0Cr17Ni12Mo2 (316) |
Application
SCH 40S stainless steel seamless pipes are widely used across many sectors, including:
- Chemical and Petrochemical Industries: Transport of chemicals and gases.
- Food Processing: Sanitary pipelines due to corrosion resistance.
- Pharmaceutical: Sterile and clean piping systems.
- Oil & Gas: High pressure and temperature environments.
- Construction: Structural applications and water distribution.
- Marine: Exposure to saltwater environments.
- Power Generation: Heat exchangers and condensers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
·
-
