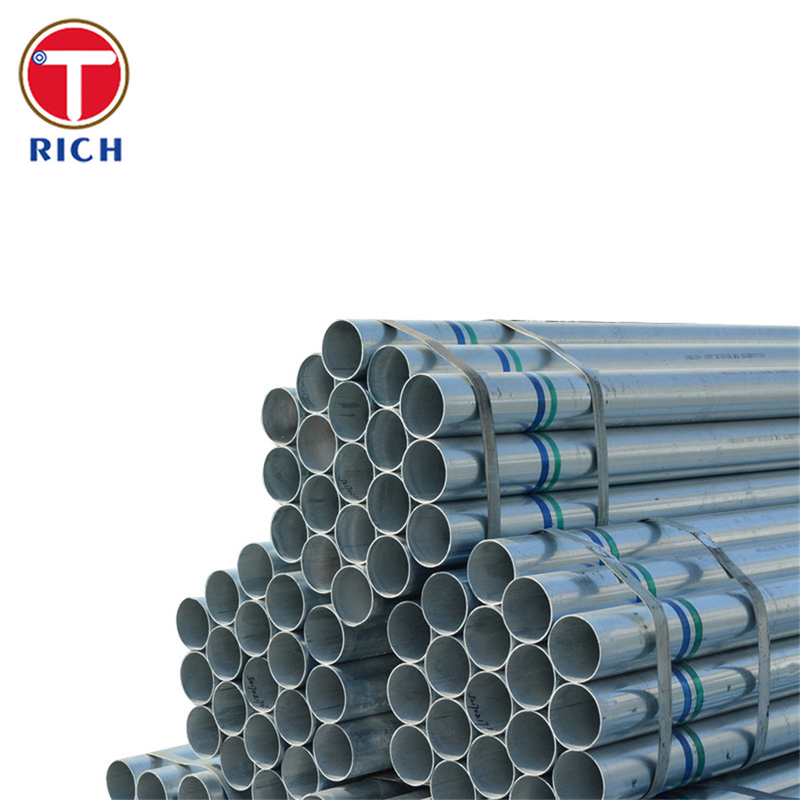

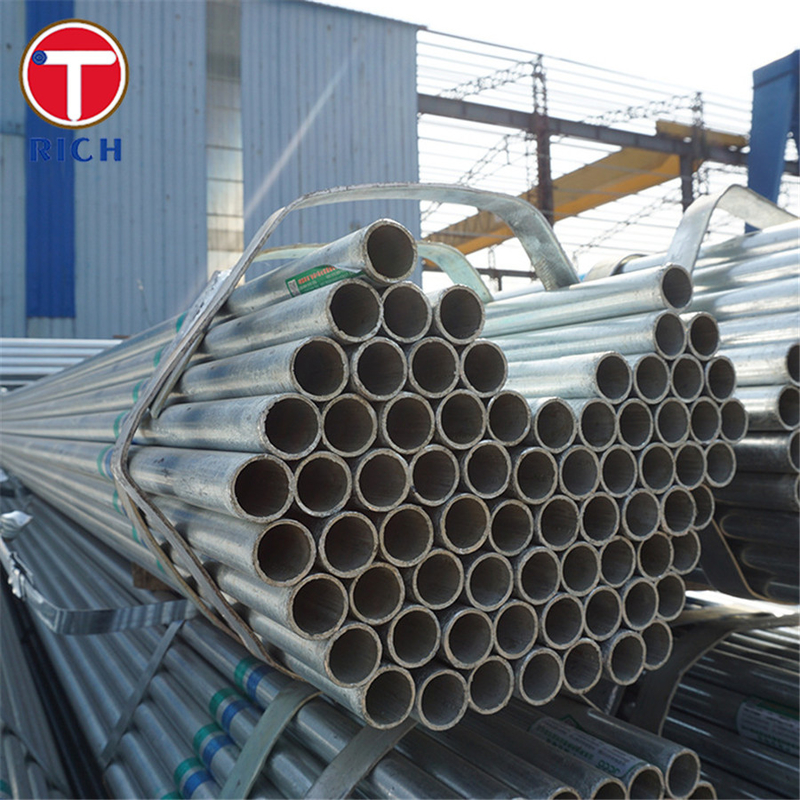

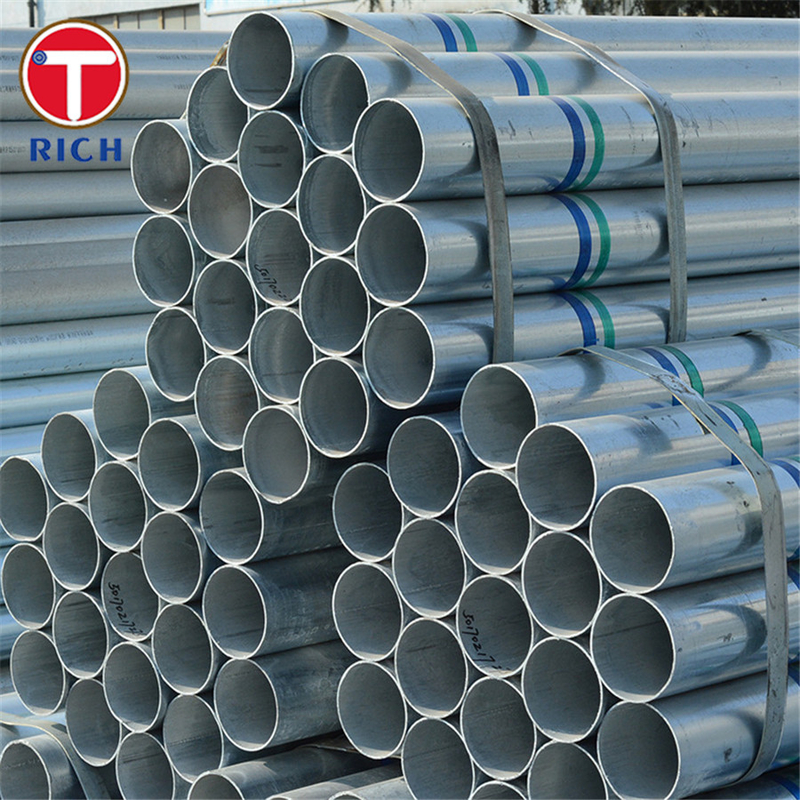

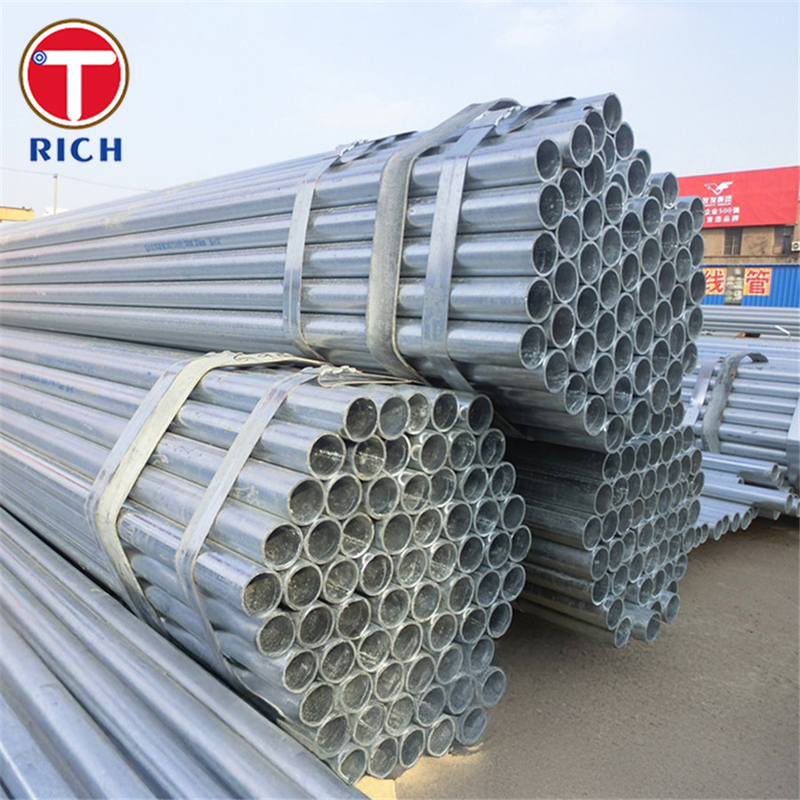

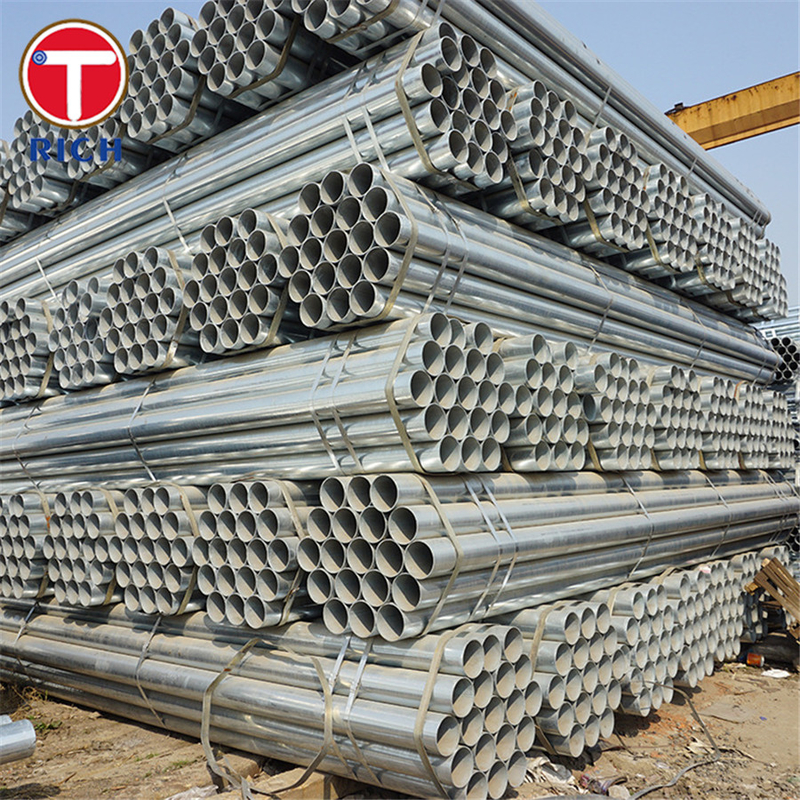

EN 1123-1 S235JR Galvanized Steel Tube for Sewer Pipes
Basic Properties
Place of Origin:
Zhejiang/China
Brand Name:
TORICH
Certification:
ISO 9001 ISO14001 TS16949
Model Number:
EN 1123-1
Trading Properties
Minimum Order Quantity:
1 Ton
Price:
Negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Ton/Tons per Year
Product Summary
EN 1123-1 S235JR Hot Dip Galvanized Tube Welded Steel Tube for Sewer Pipes Material The EN 1123-1 S235JR hot dip galvanized tube is a type of welded steel tube specifically designed for sewer applications. The S235JR grade indicates a structural steel with a minimum yield strength of 235 MPa, making ...
Product Details
Highlight:
Sewer pipes Welded Steel Tube
,EN 1123-1 Welded Steel Tube
,Hot Dip Galvanized Welded Steel Tube
Section Shape:
Round/Square/Rectangular/Oval.etc
Secondary Or Not:
Non-secondary
Technique:
Hot Rolled,Cold Rolled,Cold Drawn
Thickness:
0.4 - 50 Mm
Application:
Sewer Pipes
Surface Treatment:
Galvanized
Alloy Or Not:
Non-alloy
Grade:
S235JR S235JR
Standard:
BS EN DIN
Special Pipe:
Precision Tube
Length:
1-12m/as Customers' Requests
Surface:
Galvanized Coated
Outer Diameter(Round):
20 - 677 Mm
Outer Diameter:
20-200mm
Product Name:
Galvanized Square Steel Pipe/Tube
Product Description
EN 1123-1 S235JR Hot Dip Galvanized Tube Welded Steel Tube for Sewer Pipes
Material
The EN 1123-1 S235JR hot dip galvanized tube is a type of welded steel tube specifically designed for sewer applications. The S235JR grade indicates a structural steel with a minimum yield strength of 235 MPa, making it suitable for various construction and engineering applications.
Specification
The specification for EN 1123-1 outlines the requirements for hot dip galvanized welded steel tubes used in sewer systems. These tubes are designed to withstand harsh environmental conditions and provide long-lasting durability.
Key Features
- Corrosion Resistance: The hot dip galvanization process provides a protective zinc coating that enhances the tube's resistance to corrosion.
- High Strength: With a minimum yield strength of 235 MPa, S235JR tubes offer excellent structural integrity.
- Weldability: The material is designed for easy welding, making it suitable for various construction methods.
- Versatility: Ideal for sewer pipes, but can also be used in other applications such as water supply and drainage systems.
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Carbon (C) | 0.17 max |
| Manganese (Mn) | 1.40 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.045 max |
| Silicon (Si) | 0.40 max |
| Iron (Fe) | Balance |
Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength (MPa) | 235 |
| Tensile Strength (MPa) | 360 - 510 |
| Elongation (%) | 20 min |
| Hardness (HB) | 120 max |
Steel Grade
The S235JR steel grade is part of the European standard EN 10025, which specifies hot-rolled products of structural steels. It is widely used in construction and engineering due to its favorable mechanical properties.
Application
The EN 1123-1 S235JR hot dip galvanized tube is primarily used in sewer systems, but its applications extend to:
- Water supply systems
- Drainage systems
- Structural applications in construction
- Agricultural piping systems
Possible Alternative Grades
While S235JR is a popular choice, there are alternative grades that may be considered based on specific requirements:
- S235J0: Similar to S235JR but with improved impact resistance at lower temperatures.
- S275JR: Offers a higher yield strength (275 MPa) for applications requiring greater load-bearing capacity.
- S355JR: Provides even higher strength (355 MPa) and is suitable for more demanding structural applications.
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.
The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.
The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.
Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
