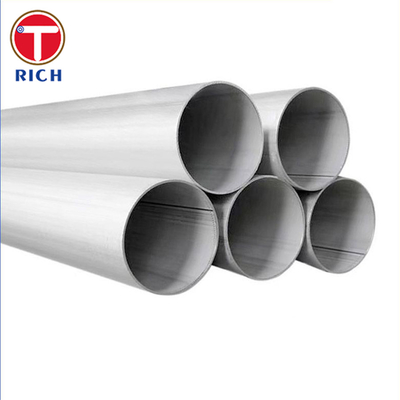

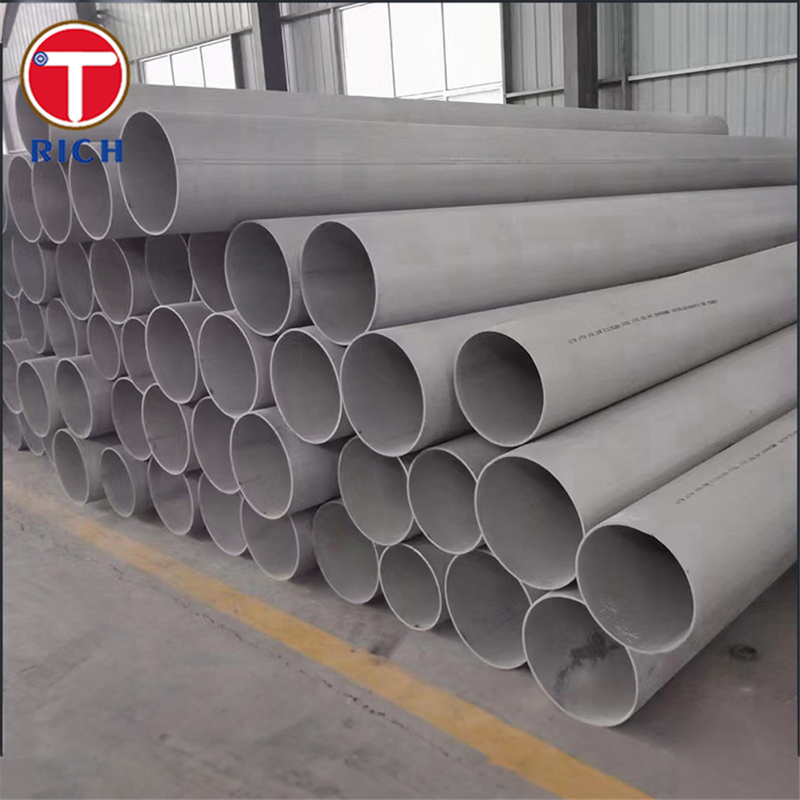

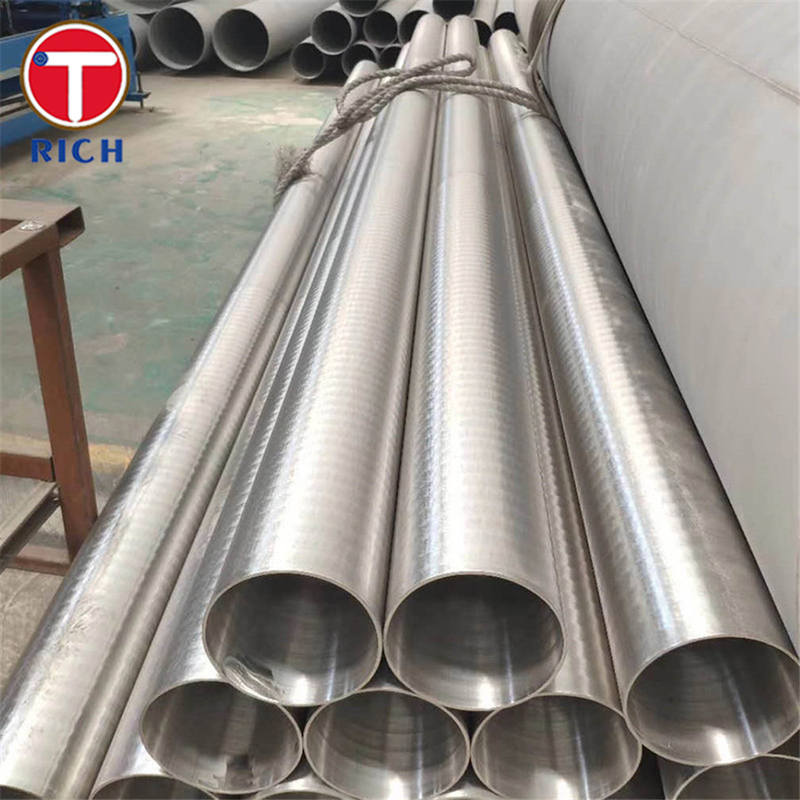

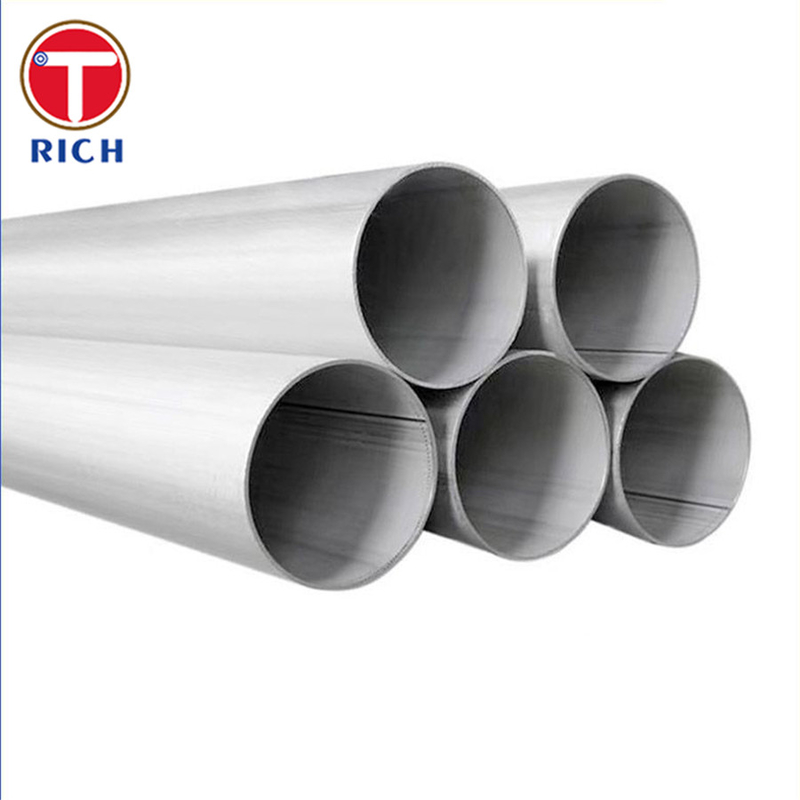

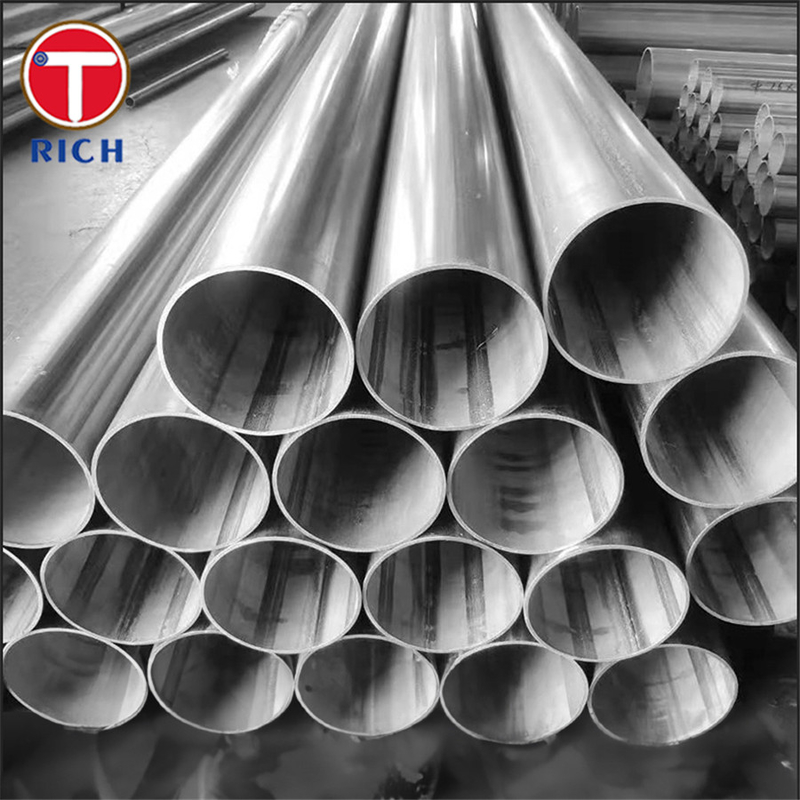

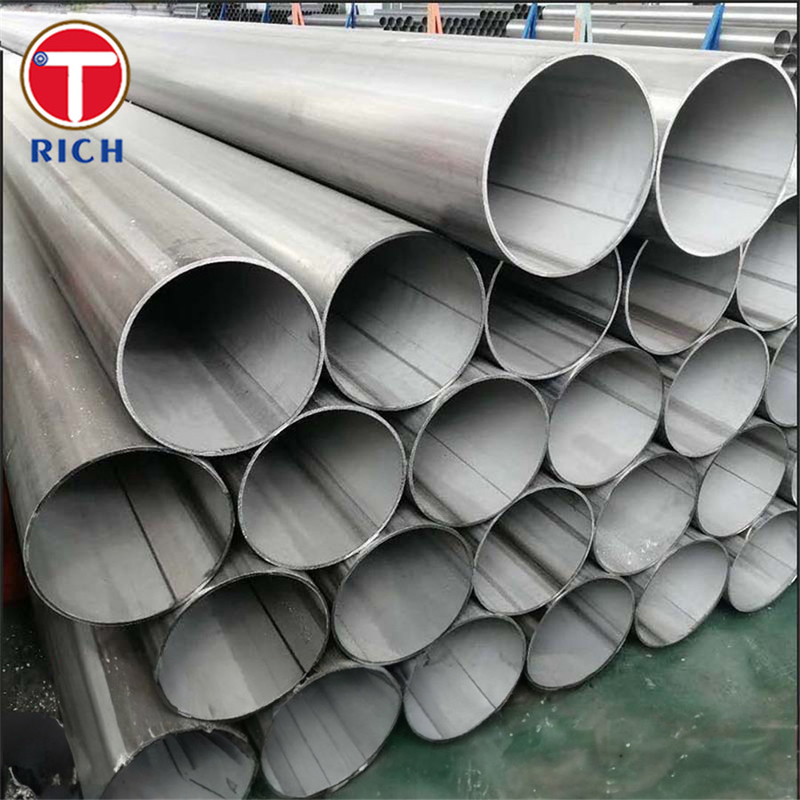

BS 6323-1 LWCF 20 Cold Finished Longitudinally Welded Stainless Steel Tube For Automobile
Introduction
BS 6323-1 LWCF 20 is a specification for cold finished longitudinally welded stainless steel tubes specifically designed for use in automobiles. This standard outlines the material requirements, key features, chemical composition, mechanical properties, steel grades, applications, and possible alternative grades for this type of stainless steel tube.
Material and Specification
BS 6323-1 LWCF 20 specifies the requirements for cold finished longitudinally welded stainless steel tubes. These tubes are manufactured using high-quality stainless steel and undergo a cold finishing process to ensure precise dimensions and smooth surface finish. The tubes are longitudinally welded, meaning the weld seam runs along the length of the tube.
Key Features
The key features of BS 6323-1 LWCF 20 stainless steel tubes include:
- Cold finished: The tubes undergo a cold finishing process to achieve accurate dimensions and improved surface finish.
- Longitudinally welded: The tubes are welded along their length, providing strength and structural integrity.
- Corrosion resistance: Stainless steel offers excellent resistance to corrosion, making these tubes suitable for automotive applications.
- High strength: The stainless steel used in these tubes provides high strength and durability.
- Versatility: The tubes can be used in various automotive applications due to their superior mechanical properties.
Chemical Composition (Table Presentation)
| Element | Minimum (%) | Maximum (%) |
|---|---|---|
| Carbon (C) | 0.17 | - |
| Silicon (Si) | - | 0.50 |
| Manganese (Mn) | 1.00 | 2.00 |
| Phosphorus (P) | - | 0.040 |
| Sulfur (S) | - | 0.030 |
| Chromium (Cr) | 19.00 | 21.00 |
| Nickel (Ni) | 9.00 | 11.00 |
Mechanical Properties (Table Presentation)
| Property | Minimum Value |
|---|---|
| Tensile Strength | 520 MPa |
| Yield Strength | 205 MPa |
| Elongation | 35% |
| Hardness (HV) | 170 |
Steel Grade
BS 6323-1 LWCF 20 stainless steel tubes are classified under the steel grade LWCF 20. This grade signifies the specific composition and properties of the stainless steel used in the tubes.
Application
BS 6323-1 LWCF 20 stainless steel tubes are primarily used in the automotive industry. They find application in various components such as exhaust systems, fuel lines, hydraulic lines, and other parts where corrosion resistance, strength, and durability are crucial.
Possible Alternative Grades
While BS 6323-1 LWCF 20 stainless steel tubes are specifically designed for automotive applications, there are alternative grades available that may suit different requirements. Some possible alternative grades include LWCF 18, LWCF 22, and LWCF 24. These grades may offer variations in chemical composition, mechanical properties, or specific applications, providing flexibility for different automotive needs.
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
