GB/T 31929 Stainless Steel Tube Straight Seam Welded Stainless Steel Pipes For Ship
Product Details
Straight Seam Welded Stainless Steel Tube
,GB/T 31929 Stainless Steel Tube
,8K Welded Stainless Steel Pipes

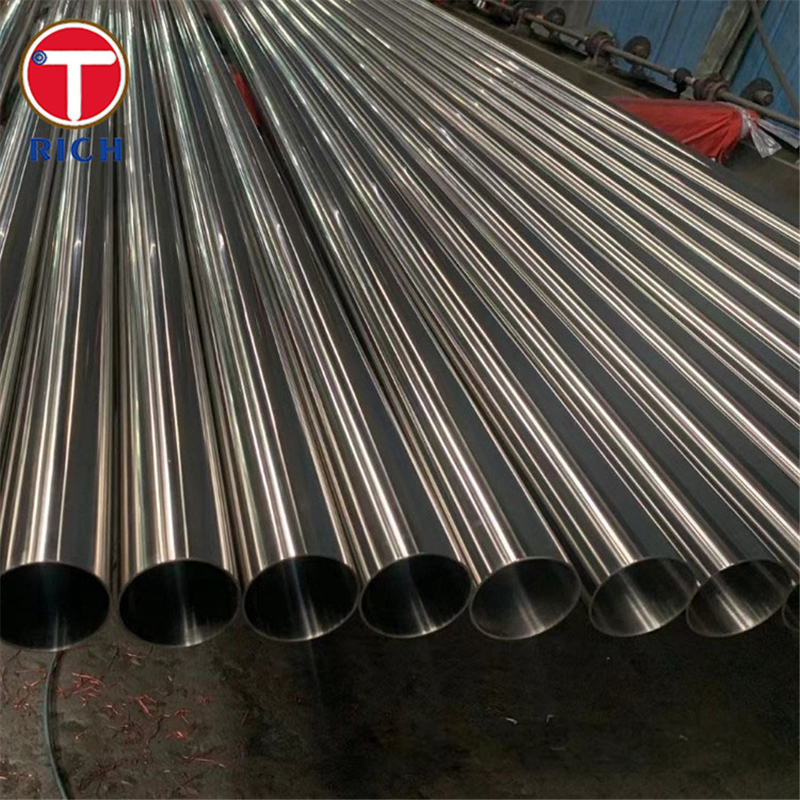

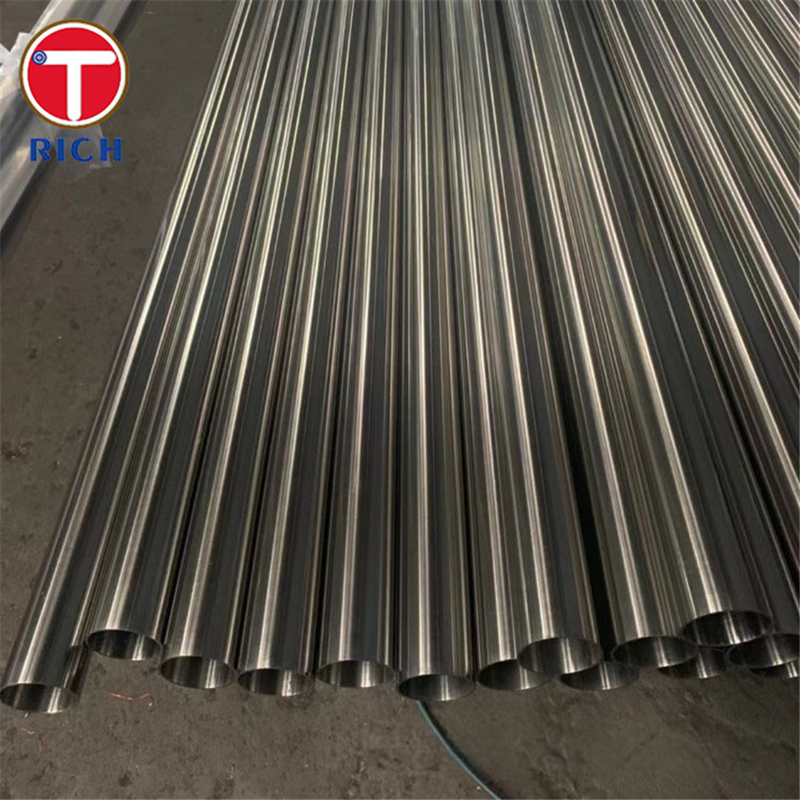

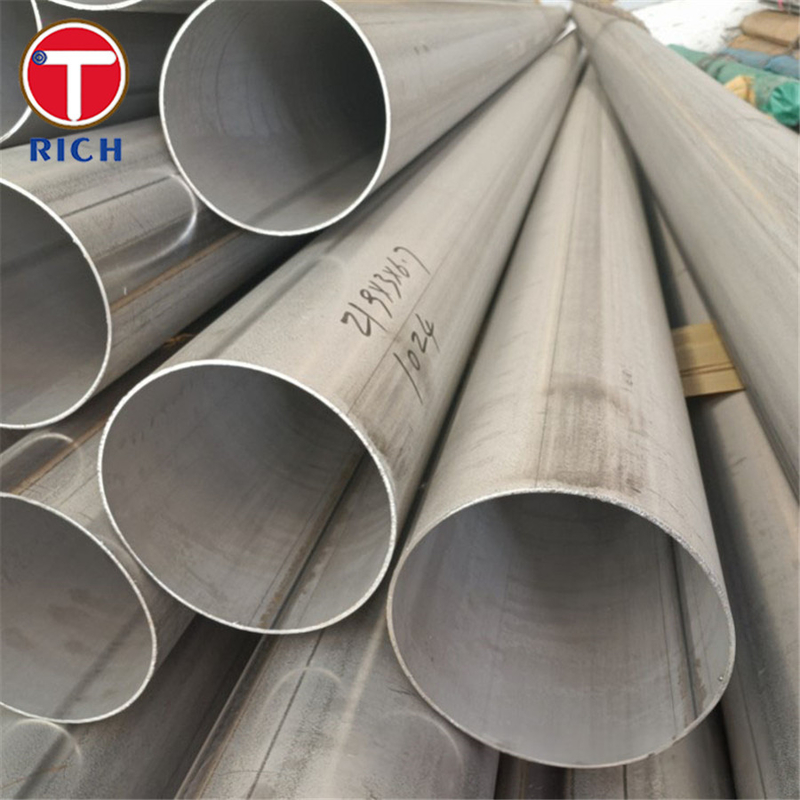

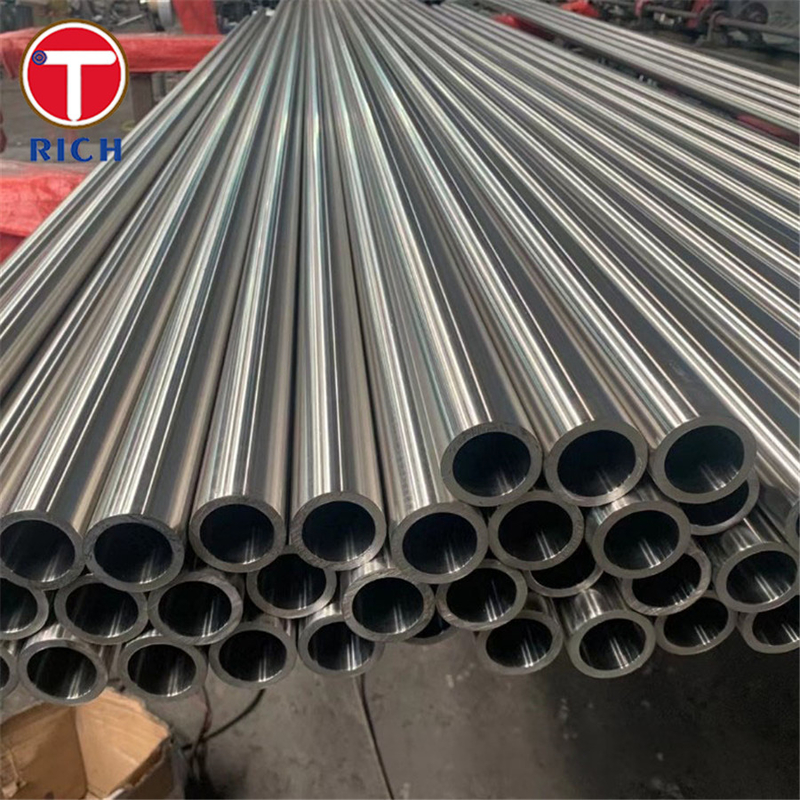

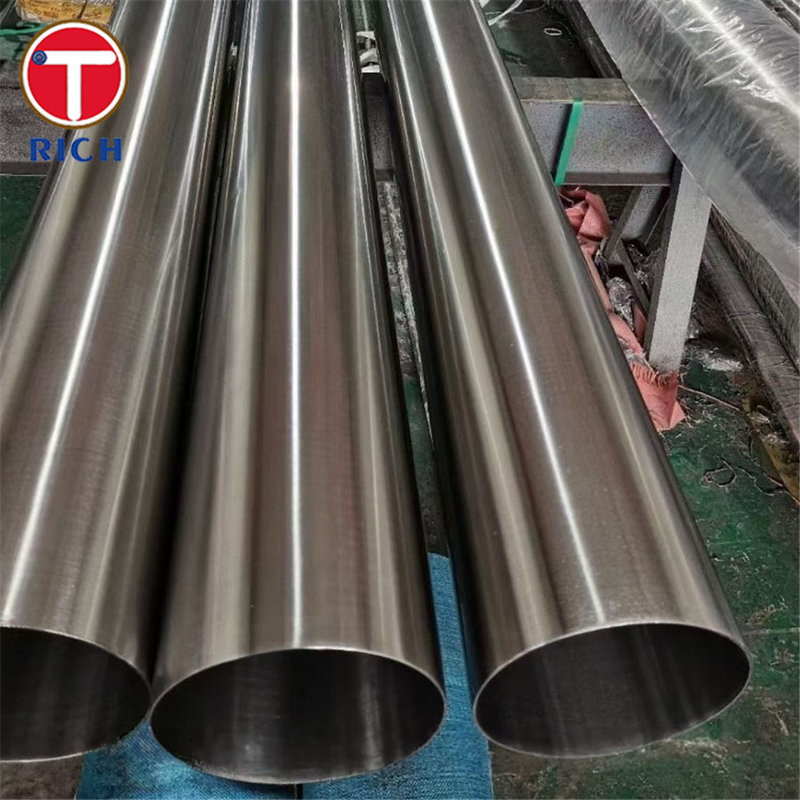

GB/T 31929 Stainless Steel Tube: Straight Seam Welded Stainless Steel Pipes For Ship
Material, Specification, Key Features
The GB/T 31929 standard delineates a set of specifications for straight seam welded stainless steel pipes ideally suited for shipbuilding applications. These pipes are specially designed with a focus on durability, corrosion resistance, and high performance. The key features of these stainless steel tubes are their exceptional strength, longevity, and ability to withstand harsh marine environments.
Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.08 |
| Silicon (Si) | ≤ 1.00 |
| Manganese (Mn) | ≤ 2.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Chromium (Cr) | 16.0-18.0 |
| Nickel (Ni) | 10.0-14.0 |
| Nitrogen (N) | ≤ 0.10 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 520 MPa |
| Yield Strength | ≥ 205 MPa |
| Elongation at Break | ≥ 35% |
| Hardness (HV) | ≤ 200 |
Steel Grade
The stainless steel tubes that conform to GB/T 31929 are typically comprised of austenitic stainless steel. Common steel grades include 304 and 316 stainless steel.
Application
Primarily intended for shipbuilding purposes, these straight seam welded stainless steel pipes find applications in marine environments due to their exceptional resistance to corrosion and extreme temperatures. They are suitable for various ship structures, pipelines, and critical marine systems.
Possible Alternative Grades
In addition to the standard grades, alternative stainless steel materials that could be considered for similar applications include duplex stainless steels like 2205, 2507, or super duplex stainless steels, providing enhanced strength and corrosion resistance properties compared to austenitic stainless grades.
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
