GB/T 32958 Stainless Steel Tube Hot Rolled Stainless Steel Clad Pipes For Fluid Transport
Product Details
Fluid Transport Seamless Stainless Steel Tube
,Hot Rolled Stainless Steel Clad Pipes
,GB/T 32958 Stainless Steel Tube

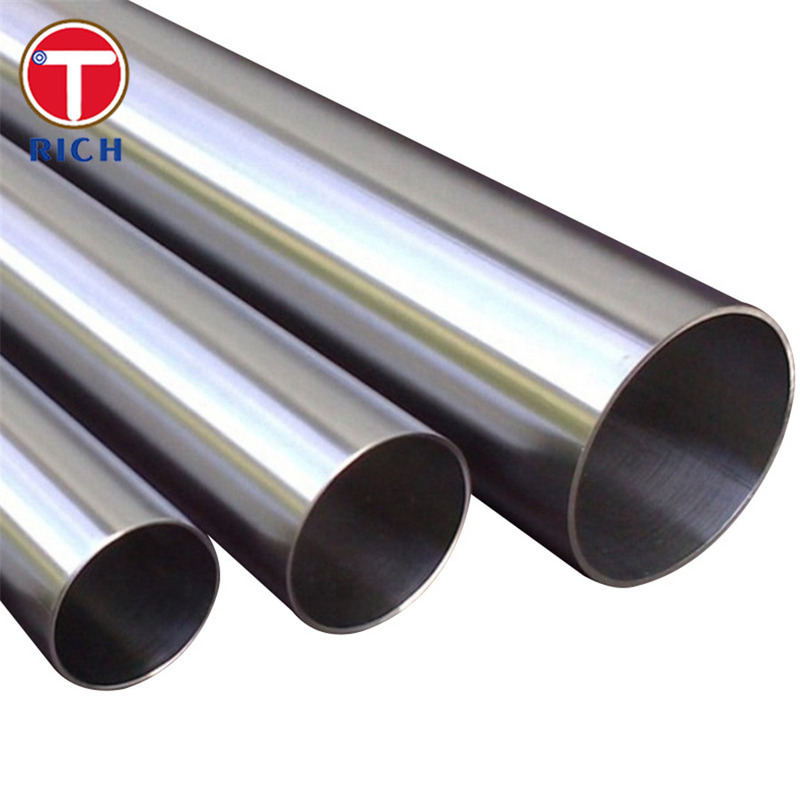

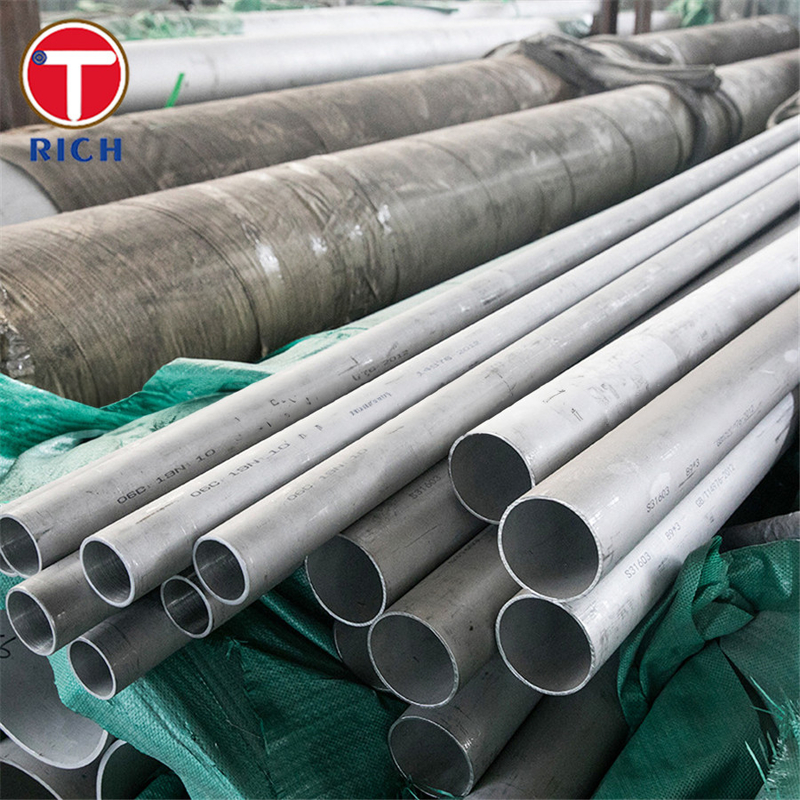

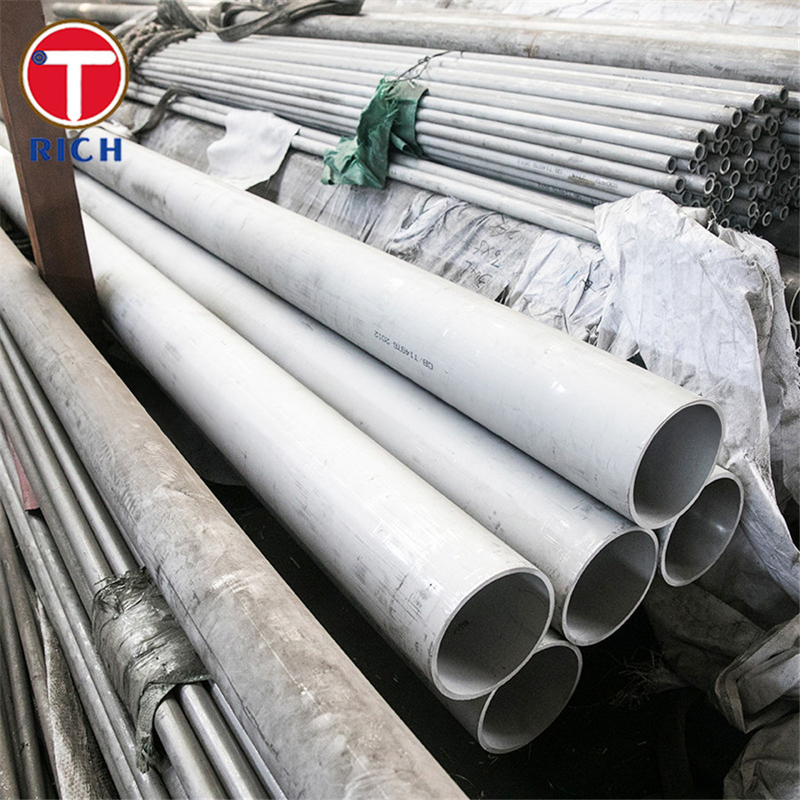

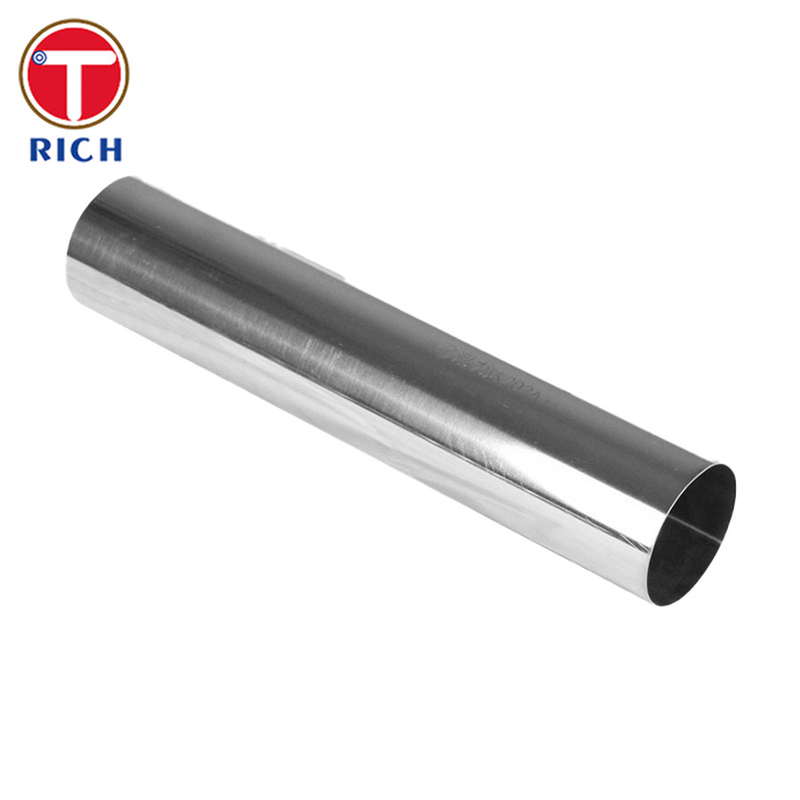

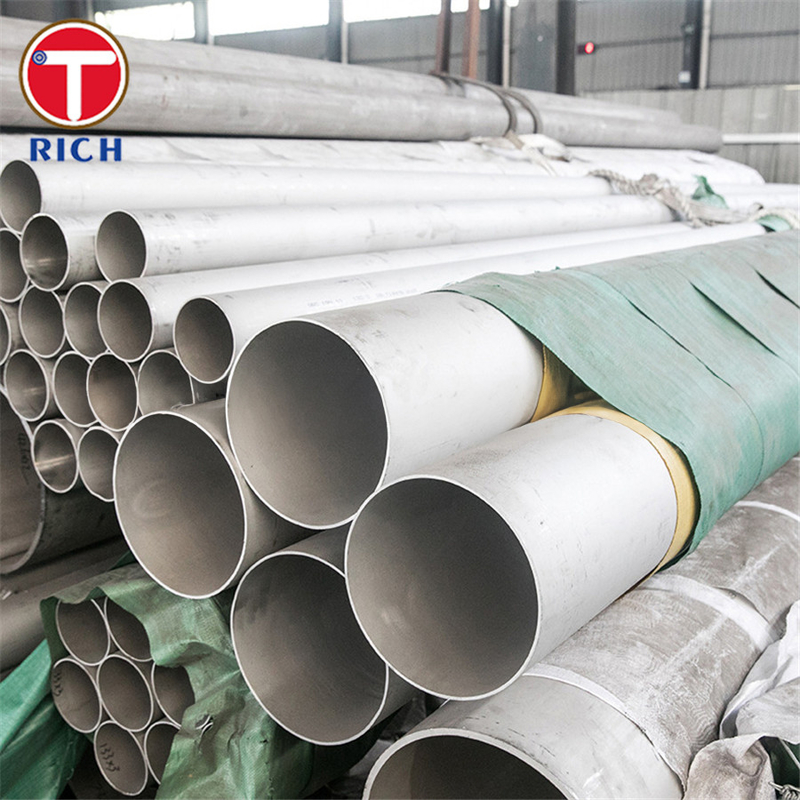

GB/T 32958 Stainless Steel Tube: Hot Rolled Stainless Steel Clad Pipes For Fluid Transport
Material, Specification, Key Features
The GB/T 32958 standard encompasses a range of stainless steel tubes tailored specifically for fluid transport applications. These hot rolled stainless steel clad pipes provide a sturdy and reliable solution for industries requiring efficient fluid conveyance. With a focus on durability and performance, these pipes are engineered to meet stringent requirements in various environments.
Material: Stainless Steel
Specification: GB/T 32958
Key Features:
- Optimized for fluid transport applications
- Hot rolled for enhanced strength and resilience
- Stainless steel clad for superior corrosion resistance
Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.03 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 0.75 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.03 max |
| Chromium (Cr) | 18.0-20.0 |
| Nickel (Ni) | 8.0-11.0 |
| Nitrogen (N) | 0.1 max |
Mechanical Properties
| Properties | Value |
|---|---|
| Tensile Strength | 600 MPa min |
| Yield Strength | 300 MPa min |
| Elongation at Break | 40% min |
| Hardness (HV) | 200 max |
Steel Grade
The steel grade specified for GB/T 32958 stainless steel tubes is determined by the chemical composition and mechanical properties required for fluid transport applications. It is classified based on its resistance to corrosion, ability to withstand varying pressures, and durability in demanding conditions.
Application
These hot rolled stainless steel clad pipes find widespread utility in industries such as chemical processing, oil and gas, water treatment, and more, where the reliable and efficient transport of fluids is imperative. With their robust construction and corrosion-resistant properties, these pipes ensure a long service life and minimal maintenance requirements.
Possible Alternative Grades
In instances where specific requirements or preferences demand alternative grades, similar stainless steel tubes with varying compositions and properties can be considered. Alternative grades may include austenitic stainless steels like 304, 316, or duplex stainless steels such as 2205, providing a range of options to suit different application needs.
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
-
