EN10216-5 Seamless Bright Annealed Stainless Steel Tube 1.4301 Pressure Purpose

Minimum Order Quantity : 100kg Price : USD4000-5000
Packaging Details : In wooden box or strong bundles with seaworthy packing Delivery Time : 35-45 days
Payment Terms : L/C, T/T, D/P, Western Union, MoneyGram Supply Ability : 10000
Place of Origin: China Brand Name: Torich
Certification: GB/T 19001-2008 , ISO 9001:2008 , TS16949 Model Number: EN10216-5

Detail Information

OD: 5-420mm Grade:: 304,316, Etc
Standard: EN10216-5 Delivery Condition: HFD, CFD, CFA, CFG, CFP
High Light:

EN10216-5 Bright Annealed Stainless Steel Tube


Seamless Bright Annealed Tubing


Pressure Purpose Bright Steel Tube

Product Description

Bright Annealed Stainless Steel Tube EN10216-5 Seamless 1.4301 Pressure Purpose


TORICH  is a mature supplier for producing steel tube, we have more than 20 years in steel tube producing and export experience. We have many standards like SA269, SA213, EN10216-5, EN10216-1, SA312,etc for stainelss steel tube.


Dimension of stainless steel tube:

Size range: O.D.: 4.0-520mm


L: according to customer requirement . max 5.8m for 20GP,   max 11.8m for 40HQ


Manufacture by EN 10216-5 standard stainless steel tube:

The tubes are made by seamless prodiction.

The tubeing can be hot finished or cold finished


Delivery Condition:

Symbol Type of delivery condition  Surface condition
HFD Hot finished, descaled Metallically clean
CFD Cold finished, descaled Metallically clean
CFA Cold finsished, bruight anne Metallically clean
CFG Cold finished , ground Metallically bright-ground
CFP Cold finished, polished  Metallically bright-polished


Mechanical Tests Requirement:

Flaring Test (Seamless Tubes)

Flange Test (Welded Tubes)

Hardness Test

Hydrastatic or Nondestructive Electric Test


Appearance Condition:

The tube shall be free from external and intenal surface defects that can be detected by visual examination.


The external and intenal surface finish of the tubes shall be typical of the manufacturing process and where applicable, the heat treatment employed. Normally the finsh and surface condition shall be such that any surface imperfections requiring dressing can be identified.


It shall be permissible to dress, only by grinding or machining, surface imperfection provided that after doing so, the wll thickness in the dressed area is not less than the specified minimum wall thickness. All dressed areas shall blend smoothly into the contour of the tube.


Surface inperfections which encroach on the specified minimum wall thickenss shall be considerated defects abd tubes containing these shall be deemed not to conform to this part of EN 10216.

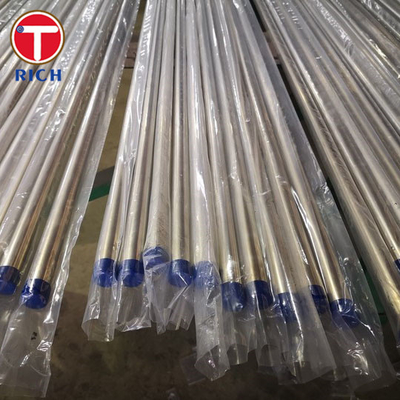

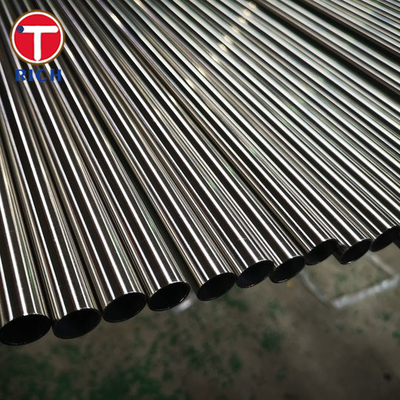

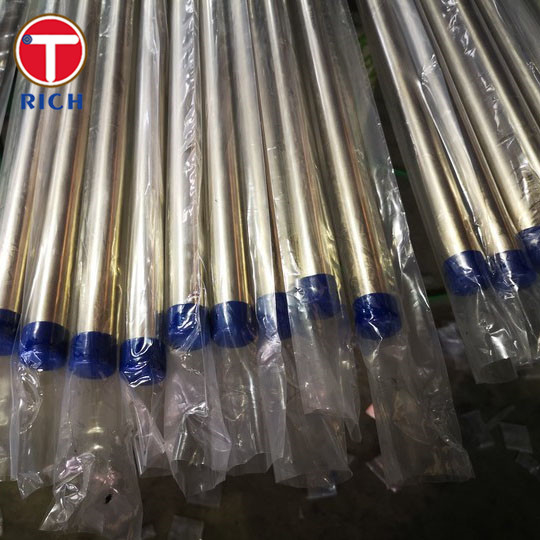

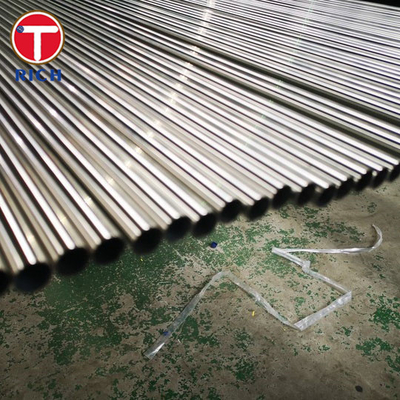

Pictures in production:


EN10216-5 Seamless Bright Annealed Stainless Steel Tube 1.4301 Pressure Purpose 0EN10216-5 Seamless Bright Annealed Stainless Steel Tube 1.4301 Pressure Purpose 1EN10216-5 Seamless Bright Annealed Stainless Steel Tube 1.4301 Pressure Purpose 2EN10216-5 Seamless Bright Annealed Stainless Steel Tube 1.4301 Pressure Purpose 3



*Good abilities of stress corrosion, all kinds of localized corrosion,antioxidant corrosion(including high temperature oxidation resistance).

*Low density

*Good thermal conductivity: It is 30%-50% higher than Austenite. Small coefficient of thermal expansion: It is 30%-40% less than Austenite.

*Big elastic modulus

*Good processing properties

*Easily bending, stamping, curling, pinin, cold forging and machining.

*Excellent deep drawability


1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
