Micro Turning Cnc Thermometer Agricultural Tractor Spare Machining Parts

Product Description

Micro Turning Cnc Thermometer Agricultural Tractor Spare Machining Part

There are various forms of CNC milling machines. Although different types of CNC milling machines are different in composition, they have many similarities. The following takes the XK5040A CNC vertical lift table milling machine as an example to introduce its composition. ⅪSaw 040A CNC vertical lift table milling machine is equipped with IV four 3MA CNC system, which adopts full digital AC servo drive. The machine consists of 6 main parts. That is, the bed part, the milling head part, the worktable part, the transverse feed part, the lifting table part, the cooling and lubricating part. The internal layout of the bed is reasonable and has good rigidity. There are 4 adjusting bolts on the base to facilitate the horizontal adjustment of the machine tool. The cutting fluid storage tank is located inside the machine base.

1.Quick detail:

2.Production:

Raw material purchase--- raw material inspection--- raw material classification--- raw material storage--- rough machining(CNC turning machine; CNC milling machine; CNC machine)--- finish machining (CNC machine; linear cutting machine)--- dimension inspection--- surface treatment( oxidizing and coloring; polishing)--- aeeembly set(parts assembling; laser marking)---finished product inspection.

3.Material:

(1) Aliminum:ALA380; AL5052; AL6082; AL6063; AL6061;etc

(2) Stainless: 201,304,316,etc

(3) Brass:C24000; C37100; C37700; C35600; C22000;etc

(4) Copper: C11000; C12200;  C12000;etc

(5) Carbon: 1020; 1045; Q235; Q345B; 1010;etc

(6) Plastic: Nylon; PVC; PP; PMMA; Peek; etc

4.Advantage:

CNC milling has the following characteristics:

1. The cnc lathe machine parts have strong adaptability and flexibility, and can process parts with particularly complex contours or difficult to control dimensions, such as mold parts, shell parts, etc.;

2. It can process parts that cannot be processed by ordinary machine tools or are difficult to process, such as complex curve parts and three-dimensional space surface parts described by mathematical models;

3. Parts that need to be processed in multiple processes after one clamping and positioning can be processed;

4. High processing precision, stable and reliable processing quality, the pulse equivalent of the numerical control device is generally 0.001mm, and the high-precision numerical control system can reach 0.1μm. In addition, the numerical control processing also avoids the operator's operating errors;

5. The production automation is high, which can reduce the labor intensity of the operator in stainless steel cnc machining. Conducive to production management automation;

6. High production efficiency. CNC milling machines generally do not need to use special process equipment such as special fixtures. When replacing workpieces, it is only necessary to call the processing programs, clamping tools and adjustment tool data stored in the CNC device, thus greatly shortening production. cycle. Secondly, the CNC milling machine has the functions of milling machine, boring machine and drilling machine, which makes the process highly concentrated and greatly improves the production efficiency. In addition, the spindle speed and feed speed of the CNC milling machine are infinitely variable, so it is beneficial to choose the best cutting amount;

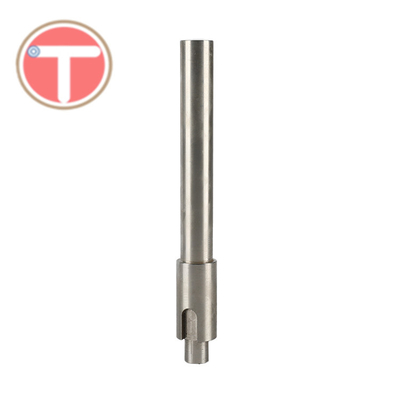

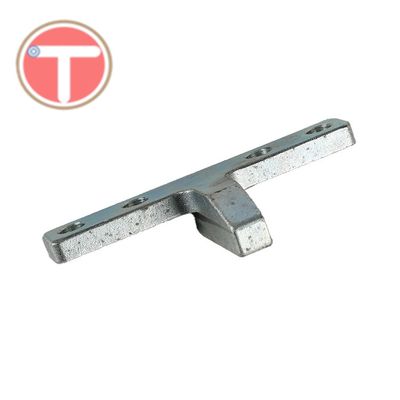

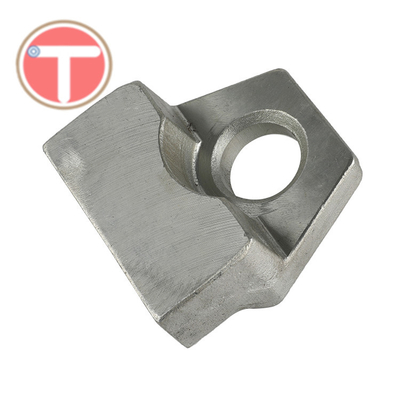

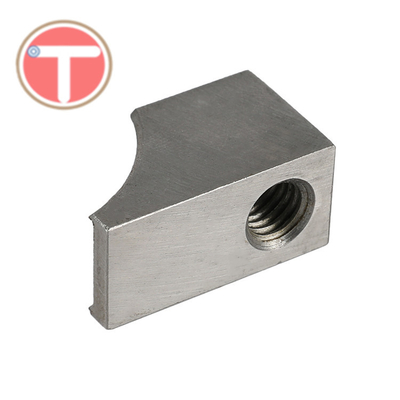

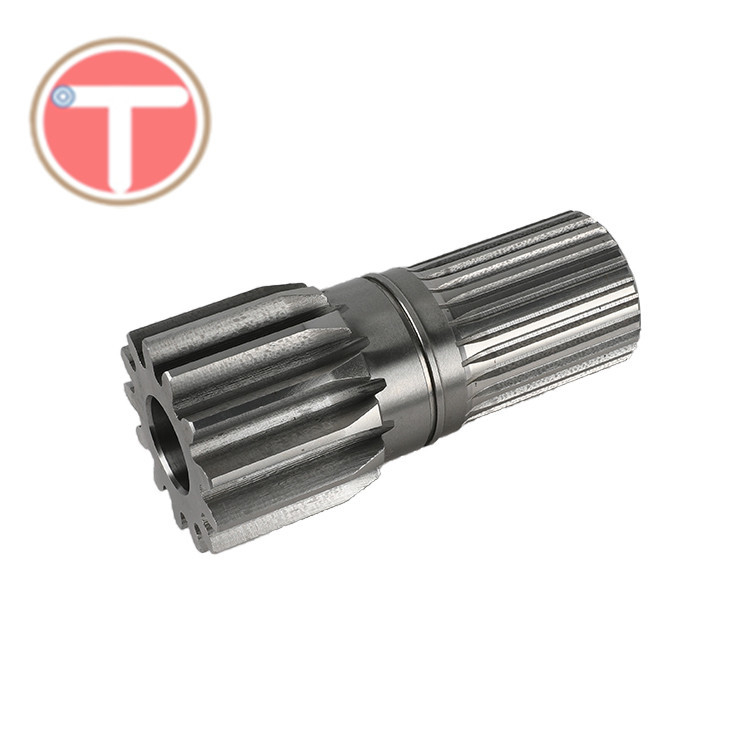

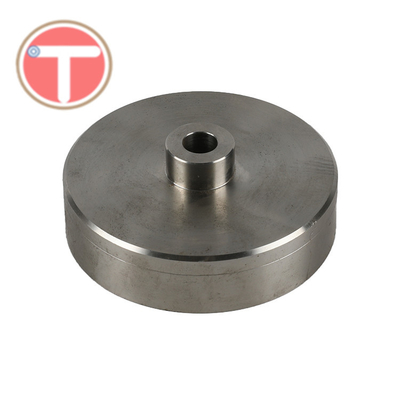

6.Picture from our production:

7.Production facility:

TORICH offers precision CNC precision machining parts service, based on the metal material like carbon, alloy, copper, stainless, etc. We foucus on the metal & plastic rapid prototyping and CNC machining services with low volume. TORICH has had ISO 9001 certification.

What we have: 3-axis, 4-axis and 5-axis CNC machines, Radial Drilling Machine, Automatic lathe walking machine, Cnc Machine Laser etc.

8.FAQ

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of CNC machining accessories ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:How to get the sample of CNC ?
A:1. You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2. Sample charges will be refunded when order is placed.
