4.76X0.7mm PVF Car Galvanized Copper Pipe 25 Feet Mosquito Coil Gold
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001 TS16949
Model Number:
SAE J527 b
Trading Properties
Minimum Order Quantity:
3 tons
Price:
4-6USD/kg
Payment Terms:
L/C, T/T
Supply Ability:
5000 tons per year
Product Summary
4.76X0.7mm PVF Car Galvanized Copper Pipe Brake Pipe 25 Feet Mosquito Coil Gold + 16 Accessories Quick detail : Origin China Brand name Torich Certificate ISO9001 TS16949 Material Galvanized copper Product name 4.76X0.7mm PVF Car Galvanized Copper Pipe Brake Pipe 25 Feet Mosquito Coil Gold + 16 ...
Product Details
Highlight:
SAE J527 Galvanized Copper Pipe
,PVF Galvanized Copper Pipe
,SAE J527 Welded Steel Tube
Material:
Galvanized Copper
Standard:
SAE J527
OD:
4.76-8.00 Mm
WT:
0.7mm
Length:
Straight Length Or Coil
Assurance Pressure:
350kg/cm3
Product Description

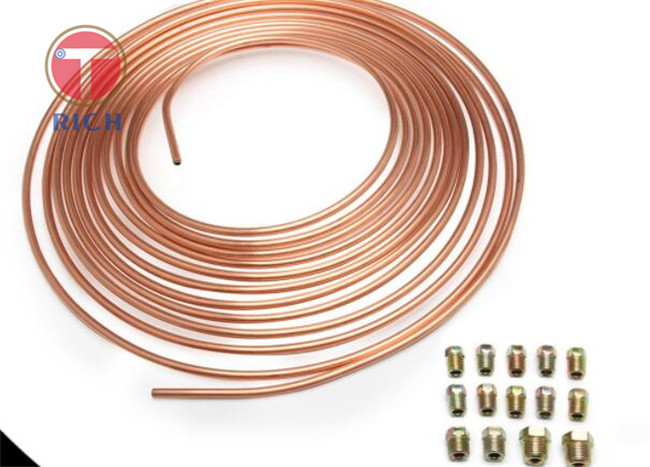

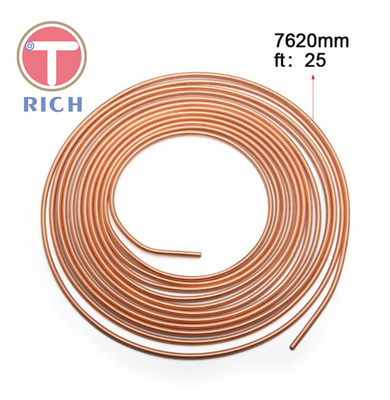

4.76X0.7mm PVF Car Galvanized Copper Pipe Brake Pipe 25 Feet Mosquito Coil Gold + 16 Accessories
Quick detail :
| Origin | China |
| Brand name | Torich |
| Certificate | ISO9001 TS16949 |
| Material | Galvanized copper |
| Product name | 4.76X0.7mm PVF Car Galvanized Copper Pipe Brake Pipe 25 Feet Mosquito Coil Gold + 16 Accessories |
| Capacity | Cutting and custom made as per customer |
Dimension and specification
| O.D. mm | Thickness mm | Weight g/m | Assurance pressure kg/cm3 |
| 4.76 | 0.7 | 70.28 | 350 |
| 6.00 | 0.7 | 91.76 | 350 |
| 6.35 | 0.7 | 97.75 | 350 |
| 7.00 | 0.7 | 108.75 | 350 |
| 7.14 | 0.7 | 111.17 | 350 |
| 8.00 | 0.7 | 126.31 | 350 |
Basic introduction:
Tolerance
O.D. and W.T. +/-0.08mm
Size: 27.3*27*0.5CM
Weight: 0.62KG
Material: galvanized copper
Applicable models: Universal

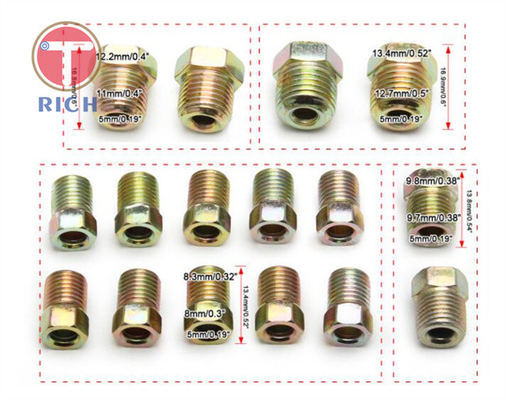

Accessories size:
2 x 3/16” (7/16-24)
10 x 3/16” (3/8-24)
2 x 3/16” (1/2-20)
2 x 3/16” (9/16-18)
Place Of Origin: Zhejiang, China (Mainland)
What we can do :
Cutting and custom made as per customer
Application:
Brake system
Packaging:Bags or Wooden cases or according to client’s requirements
Shipping: Land transportation/Ocean transportation
