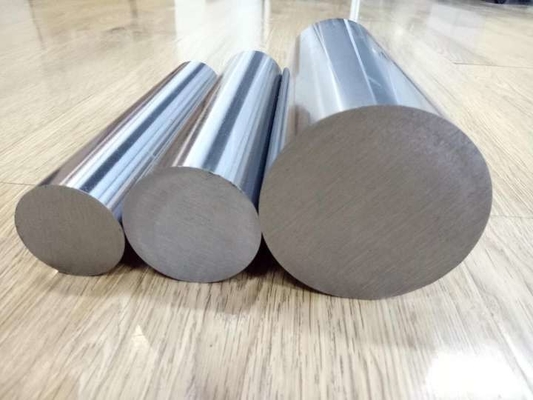

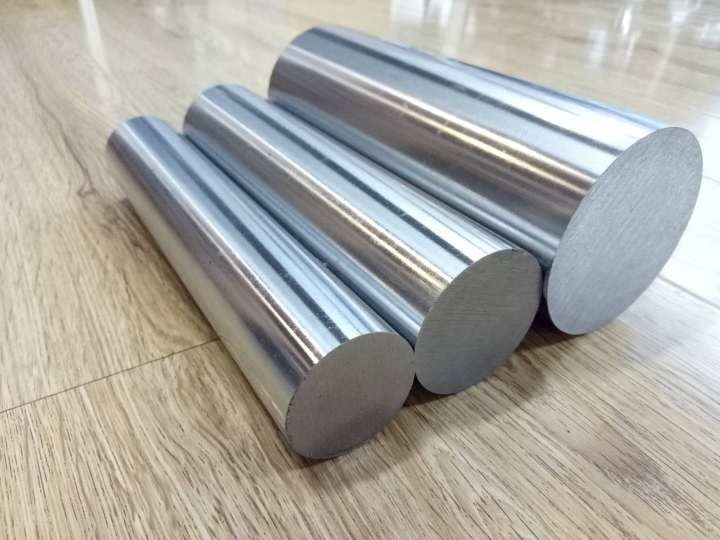

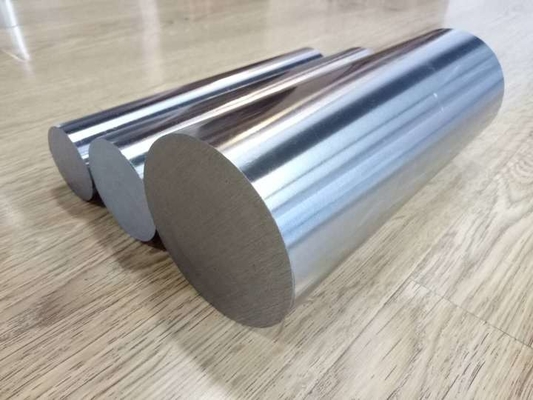

ST52 Chrome Plated Rod For Hydraulic Pneumatic Cylinders
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
1Ton
Price:
USD600-1500 Per Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5000Ton per years
Product Summary
Chrome Plated Rod Piston Rod for Hydraulic Pneumatic Cylinders Main Process: 1. Hydraulic Steel Raw Material Cutting 2. CNC Machining + additional broaching and milling operations 3. Induction Hardening 4. Chrome Plating 5. Dehydrogenation and Tempering 6. Polish and Superfinish Polish 7. 100% ...
Product Details
Highlight:
Pneumatic Cylinders Chrome Plated Rod
,Hydraulic Cylinders Chrome Plated Rod
,ST52 Chrome Plated Rod
Product Name:
Chrome Plated Rod Piston Rod For Hydraulic Pneumatic Cylinders
Material:
ST52,CK45,4140
Keyword:
Chrome Plated Rod
Shape:
Round
MOQ:
1 Ton
Packing:
Wooden Case
OD:
6-500mm
Length:
1-12mm
Brand:
TORICH
Payment Terms:
30%TT + 70% Balance
Product Description
Chrome Plated Rod Piston Rod for Hydraulic Pneumatic Cylinders
Main Process:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
| Product Name | Chrome Plated Rod/Bar |
| Material | CK45, SAE1045, 4140, 4340, ST52, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc. |
| Delivery Condition |
Hard Chrome Piston Rod ( HRC 15-20) |
| Straightness: | <= 0.2/1000 |
| Roughness: | Ra <= 0.2u |
| Diameter | As customer’s needs |
| Chrome layer | 20 micron (min) to 100 micron |
| Length | max 13m |
| Roundness | DIN2391, EN10305, GB/T 1619 |
| Tolerance | ISO f7/h8/g6 |
| Shape | Round |
| Protection: | anti-rust oil on outside surface,hard cardboard sleeve protection |
| Used | Hydraulic Cylinders |
| Packing: | wooden case |
