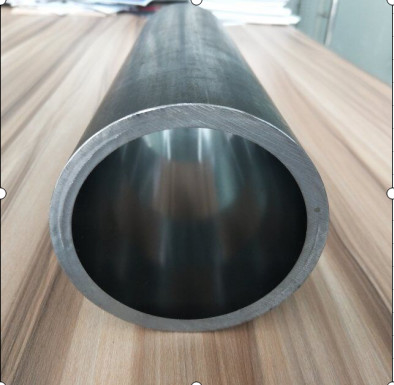

Honing Alloy Steel Pipe For Hydraulic Cylinder
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001
Trading Properties
Minimum Order Quantity:
1Ton
Price:
USD1000-1500
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5000Ton per years
Product Summary
Steel Pipe Price Honing Tube For Hydraulic Cylinder Origin ZHEJIANG CHINA Brand TORICH Type Seamless Standard ASTM, BS, DIN, GB, JIS Material ST52, CK45, 4140, 16MnST52, CK45, 4140, 16Mn Tolerance H8 H9 H10 Application Hydraulic Cylinder Technique Cold Drawn Certification CE OD 21-426mm WT 1-12m ...
Product Details
Highlight:
Honing Alloy Steel Pipe
,Hydraulic Cylinder Alloy Steel Pipe
,Steel Honing Tube
Product Name:
Steel Pipe Price Honing Tube For Hydraulic Cylinder
Standard:
ASTM, BS, DIN, GB, JIS
Material:
ST52, CK45, 4140, 16Mn
Delivery Condition:
BK, BK+S, GBK, NBK
Type:
Seamless
O.D:
21-426mm
W.T:
3-50mm
Length:
1-12m
Tolerance:
H7, H8, H9
Brand:
TORICH
Product Description
Steel Pipe Price Honing Tube For Hydraulic Cylinder
| Origin | ZHEJIANG CHINA |
| Brand | TORICH |
| Type | Seamless |
| Standard | ASTM, BS, DIN, GB, JIS |
| Material | ST52, CK45, 4140, 16MnST52, CK45, 4140, 16Mn |
| Tolerance | H8 H9 H10 |
| Application | Hydraulic Cylinder |
| Technique | Cold Drawn |
| Certification | CE |
| OD | 21-426mm |
| WT | 1-12m |
Main feature:
High precision
Excellent brightness
No oxidization on outer and inner walls after heat treatment
High cleanness of inside wall
High pressure
No deformation after clod bending
No crack after flaring and flattening
Color : Gray with white
