ASTM B516 Precision Inconel 718 Nickel Alloy Tube
Product Details
ASTM B516 Nickel Alloy Tube
,Inconel 718 Nickel Alloy Tube
,Precision Inconel 718 Tube
ASTM B516 Inconel 718 Nickel Alloy Tube
Inconel 718 nickel alloy tube is an age-hardenable nickel-chromium-iron alloy also containing significant amounts of niobium, molybdenum, titanium and aluminum. It combines good corrosion resistance with extremely high strength. Typical applications include heat exchangers and O-rings.
ASTM B163 Alloy 718 Tube , is an austenitic nickel-based superalloy.718 inconel tube exhibits excellent high yield tensile and creep-rupture properties at temperatures up to 1300ºF and oxidation resistance to 1800ºF. Inconel 718 tube W. Nr 2.4668 is used in applications that require high strength such as parts for jet engines and high speed airframe parts such as wheels, buckets, spacers and high temperature bolts and fasteners.
ASTM B516 Inconel 718 Tube Specification
| Inconel 718 Tube Standards | ASTM B163, ASTM B516 / ASME SB163, ASME SB516 |
| Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Inconel 718 Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Inconel 718 tubing wall thickness | 0.020" –0.220", (special wall thicknesses available) |
| Alloy 718 tube Length | Single Random, Double Random, Standard & Cut length |
| Inconel Alloy 718 Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Key Word | Nickel alloy tube/pipe |
| Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Inconel 718 Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| End | Plain End, Beveled End, Treaded |
| Marking | All Inconel tube are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
Inconel 718 Tubing Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
Inconel 718 Tubing Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Alloy 718 is popular with a number of different critical industries and applications including:
· Gas turbine components
· Cryogenic storage tanks
· Jet engines
· Liquid fueled rocket motors and components
· Fasteners and instrumentation parts
· Nuclear fuel element spacers
· Hot extrusion tooling
· Down hole shafting and strength bolting

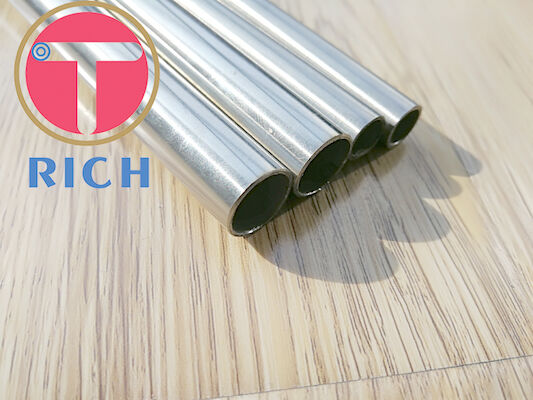

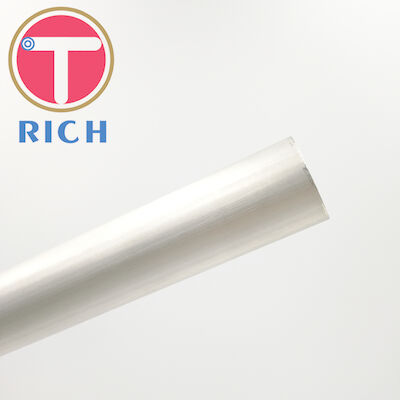

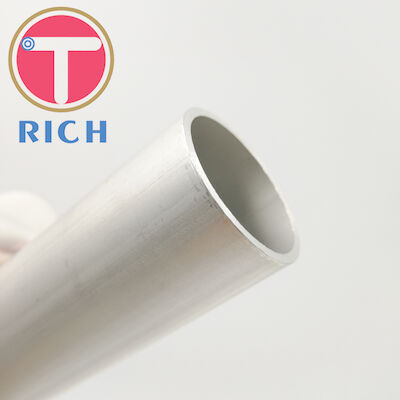

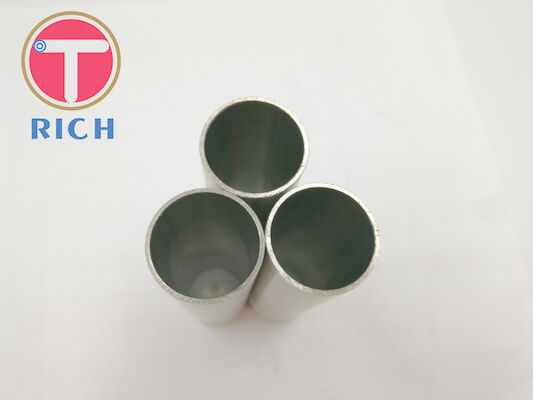

Product Pictures:
Company Introduction:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of Cold drawn ERW DOM tubes ASTM A513 1010 1020 1026 for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
