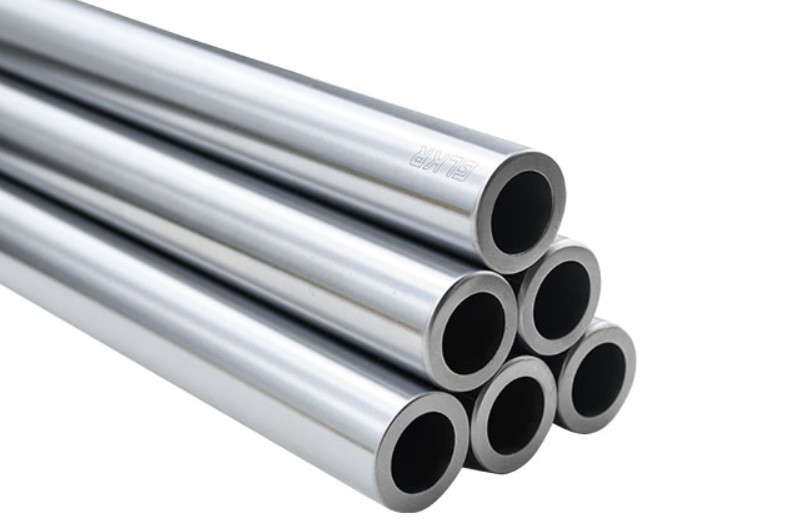

ETH Rods 1.4301 AISI 304 Seamless Stainless Steel Tube Cold Finished Ground

Detail Information

Place of Origin:

China

Certification:

IS09001 ISO14001 TS16949

Standard:

ASTM

Technique:

Cold Finished

Application:

Hydraulic Cylinder

Section Shape:

Round

Length:

Customer's Requirement

Product Name:

ETH Rods 1.4301 AISI 304 Seamless Cold Finished Ground Stainless Steel Tube

Packaging Details:

In woon boxes.

Supply Ability:

5000tons per year

Highlight:

Product Description

ETH rods 1.4301 AISI 304 seamless cold finished ground stainless steel tube

Material :1.4301(ANSI 304)

Tensile strength Rm min 500MPa

Elastric limit Rp0.2 min 200MPa

Tolerance of OD H8 .H9

Tolerance of ID H8 H9

Rod straighness ≤0.2mm/1000mm 0.3mm/1000mm

Size :22X2 283 45X5 70X4.85 85X7.5mm

Length Random length

1.4301 :

Tensile strength σb (MPa)	≥515-1035
Conditional yield strength σ0.2 (MPa)	≥205
Elongation δ5 (%)	≥40
Reduction of area ψ (%)	≥?
Hardness:	≤201HBW; ≤92HRB; ≤210HV
Density (20℃, g/cm³):	7.93
Melting point (℃):	1398~1454
Specific heat capacity	(0~100℃, KJ·kg-1K-1): 0.50
Thermal conductivity (W·m-1·K-1):	(100℃) 16.3, (500℃) 21.5
Linear expansion coefficient (10-6·K-1):	(0~100℃) 17.2, (0~500℃) 18.4
Resistivity (20℃, 10-6Ω·m2/m):	0.73
Longitudinal elastic modulus (20℃, KN/mm2):	193
