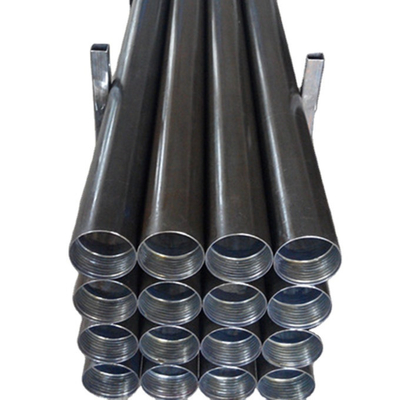

73.03x6.35 Round 0.5mm Thickness Drill Steel Pipe

73.03x6.35 Round 0.5mm Thickness Drill Steel Pipe

MOQ: 3 tons
Price: negotiable
Standard Packaging: packing in standard marine packages
Delivery Period: 30-45 days
Payment Method: T/T, L/C, D/A, D/P, Western Union,
Supply Capacity: 50000 tons per year
Detail Information
Place of Origin
Zhejiang,China
Brand Name
TORICH
Certification
ISO 9001 ISO 14001 TS 16949
Model Number
GB/T 9808-2008
Product Name:
73.03X6.35 45MnMoB Drill Steel Pipe
Keyword:
45MnMoB Drill Steel Pipe
Shape:
Round
Technique:
Cold Drawn Seamless
Application:
For Wire-line Drill Rods,core Barel Tubes,drill Rods Coupling Casing
Material:
45MnMoB,10#,20#,45#,4130,4140,16Mn,etc.
Length:
3450mm,3500mm,max12000mm
OD:
5-420mm
WT:
0.5-50mm
Delivery Time:
5-15 Days
Highlight:

73.03x6.35 drill steel pipe

,

0.5mm thickness drill steel pipe

,

precision drilling through steel pipe

Product Description

73.03X6.35 45MnMoB Drill Steel Pipe


Product information
Applicatioan: for wire-line drill rods,core barel tubes,drill rods coupling casing
Size range: OD 5-420mm, WT 0.5-50mm Length max12000mm
Material: 45MnMoB,10#,20#,45#,4130,4140,16Mn,etc.

Chemical composition of 45MnMoB
C: 0.41-0.49,Si: 0.17-0.37,Mn: 0.9-1.2,S: 0.04max,P: 0.04max,Mo: 0.2-0.3,B: 0.001-0.005



Tolerance of Outer Diameter and Wall Thickness

Standard Production Method Tube Size   Tolerance
GB/T 9808-2008 Hot rolled OD (+1.0%D) or +0.65
(-0.5%D) -0.35
WT ≤10 (+15%S)or +0.45
(-10%S) -0.35
>10 (+12.5%S, -10%S)
Cold Drawn(rolled) OD   ±0.50%D or ±0.20
WT   ±8%S or ±0.15
Q(N)/ T118-2010 Cold Drawn OD OD ±0.40%D or ±0.20
WT WT ±7%S or ±0.15



Mechanical Property

No. Grade Tensile Strangth Rm/MPa Specifies the non-proportional extension strength Rp0.2/MPa

Percentage elongation after fracture

A/%

No less than
1 ZT380 640 380 14
2 ZT490 690 490 12
3 ZT520 780 520a 15b
4 ZT540 740 540 12
5 ZT590 770 590 12
6 ZT640 790 640 12
7 ZT740 840 740 10

a Grade ZT520 measure RP0.5

bGrade ZT520 use tensile sample S4 S5 or S6 in GB/T 228

73.03x6.35 Round 0.5mm Thickness Drill Steel Pipe
