Od 5mm Astm B163 Nickel Alloy Pipe 200 201 Grade

Name: Od 5mm Astm B163 Nickel Alloy Pipe 200 201 Grade
Brand: TORICH INTERNATIONAL LIMITED
SKU: 200 201
Price: 1,000.00 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	200 201
MOQ:	1 Tons
Price:	USD 800-1200/Ton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	60000 Tons/Year

Detail Information

Product Description

Detail Information

Place of Origin:

ZheJiang,CHINA

Standards:

ASTM B163 Nickel Alloy Pipe 200 201

Grade:

200 201

O.D.:

5-420mm

W.T.:

0.5-50mm

Length:

Max 12000mm

Brand:

Torich

Packaging Details:

In bundles or in wooden boxes packaging.as per clients' options.

Supply Ability:

60000 Tons/Year

Highlight:

astm b163 nickel alloy pipe

201 grade nickel alloy pipe

astm b163 nickel 200 pipe

Product Description

Nickel Alloy Pipe 200 201

The offered range of Nickel 200 Pipe and Nickel 201 Pipe are produced from 99.6% pure nickel alloy. This is thus imparting excellent magnetic and mechanical properties. The nickel pipe is exhibiting greater corrosion resistance property in an alkaline solution like caustic soda.Nickel 200 Pipe and Nickel 201 Pipe are also having good resistance ability all against highly pure non-oxidizing acid and pure halogen gas. The suppliers are offering the nickel alloy pipe in various standards and in custom-made specifications that are designed to suits the different buyer’s requirements.

Nickel Alloy Pipe Specification :

Nickel 200 / 201 Seamless Pipes Standard: ASTM B163, ASTM B161, ASME SB161, and ASME SB163

Nickel 200 / 201 Welded Pipes Standard : ASTM B725, ASTM B730, ASME SB725, and ASME SB730

Standard : ASTM, ASME and API

Grades : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201),Nickel 205 (UNS N02205).

Pipes Size : Seamless 1/2" - 10" , Welded 1/2" - 48"

Tubing Size : O.D.4 to 219mm , W. T.: 0.5 to 20mm

Length : Within 13500mm

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Types : Seamless / ERW / Welded / EFW / Fabricated / CDW

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

End : Plain End, Beveled End, Treaded

Chemical composition:

Nickel 200 pipe	Ni	C	Mo	Mn	Si	Fe	P	S	Cu	Cr
Nickel 200 pipe	99.0 Min	0.15 Max	-	0.35 Max	0.1 Max	0.4 Max	-	0.01 Max	0.25 Max	-
Nickel 201 pipe	Ni	C	Mo	Mn	Si	Fe	P	S	Cu	Cr
Nickel 201 pipe	Balance	0.15 Max	-	0.35 Max	0.35 Max	0.40 Max	-	0.01 Max	0.25 Max	-

Mechanical properties:

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 200 / 201	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Applications

· Oil & Gas

· Petrochemical

· Power Genration

· Sugar

· Food Processing

· Paper & Pulp

· Offshore and Onshore Services

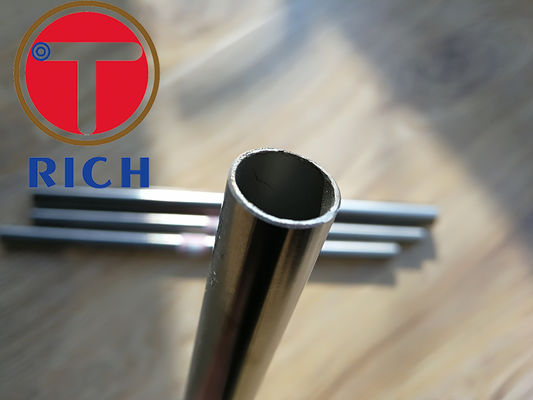

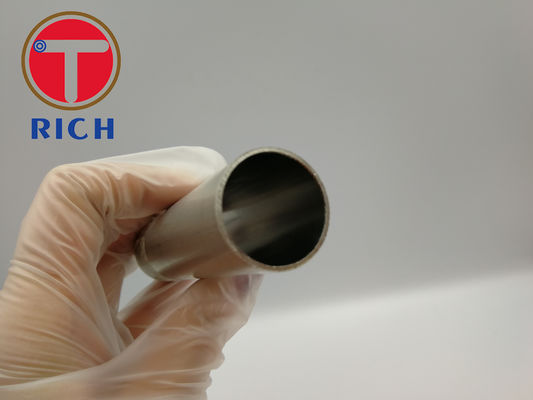

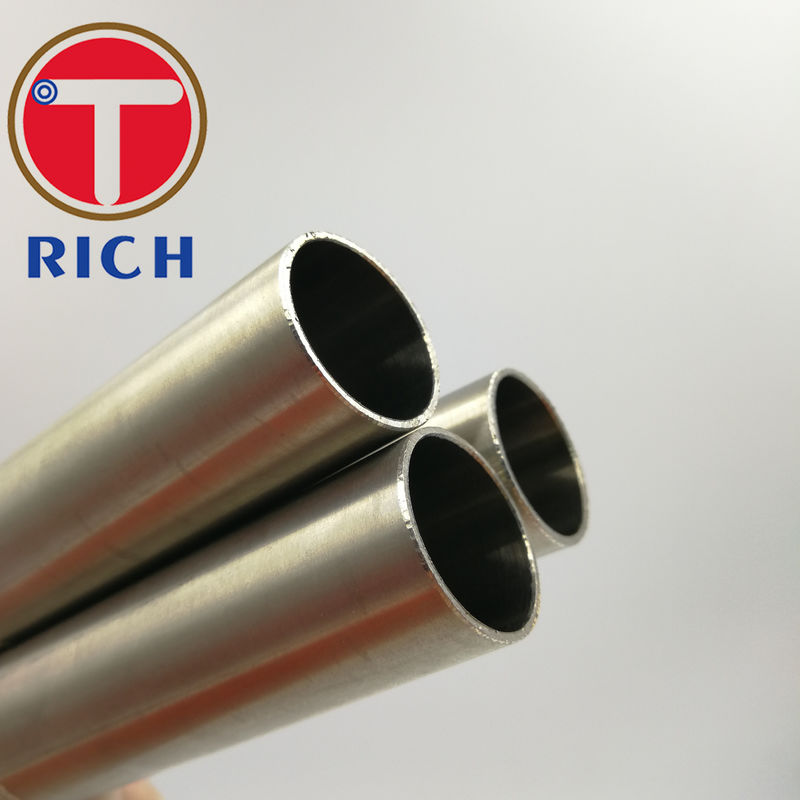

Product Pictures:

Company Introduction:

FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample of Cold drawn ERW DOM tubes ASTM A513 1010 1020 1026 for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
