600 625 Seamless Inconel Tube / Pipe 0.5mm Thickness
Product Details
625 seamless inconel tube
,0.5mm thickness inconel tube
,torich inconel 600 pipe
Inconel 600 625 Seamless Pipe
Inconel 600/601/625 Seamless and Welded Pipes are compost of Chromium and Nickel. Moreover, they similarly have molybdenum, titanium and niobium that further develops blends assurance from creep and break at high temperatures. Inconel 625 seamless pipes moreover feasibly show unprecedented action against solid acids like sulphuric and phosphoric acids.
Quick Details
Pipe Specification : ASTM B167, B517 / ASME SB167, SB517
Dimension Standard : ANSI B36.19M, ANSI B36.10
Inconel 600/601/625 Pipe Size : 1/4" sch 10 to 16" sch 80
Inconel 600/601/625 Tube Size : OD 1/16"~4", Wall: 0.010"~0.250", Length: 17'/24' FT R/L
Outside Diameter : 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Inconel 600/601/625 Pipes Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 pipe | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 pipe | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 pipe | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 0.40 max | 5.0 max | 58.0 min | 20.0 - 23.0 |
Inconel 600/601/625 Pipes Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | 655 MPa, 95000 psi | 310 MPa, 45000 psi | 45 % |
| 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi - 1,35,000 , MPa -930 | Psi - 75,000 , MPa - 517 | 42.5 % |
Inconel 600 / 601 / 625 Seamless Pipes and Tubes Applications
The Inconel 600 pipe,Inconel 601 pipe and Inconel 625 pipe are used in the following applications:
- Aircraft ducting systems
- Aerospace
- Jet engine exhaust systems
- Engine thrust-reverser systems
- Specialized seawater equipment
- Chemical process equipment
- Chemical Processing
- Heat treating industry
- Power generation
- Heat treating muffles and retorts
- Radiant tubes
- Catalyst support grids in nitric acid production
- Steam superheater tube supports
- Pulp and paper industry
- Food processing
- Nuclear Engineering
- Gas turbine components

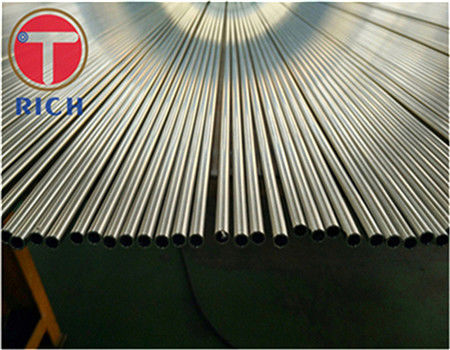

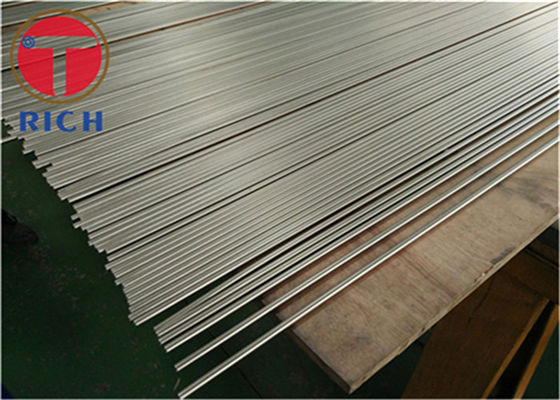

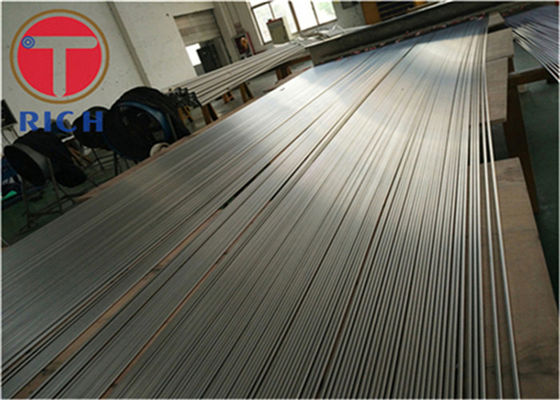

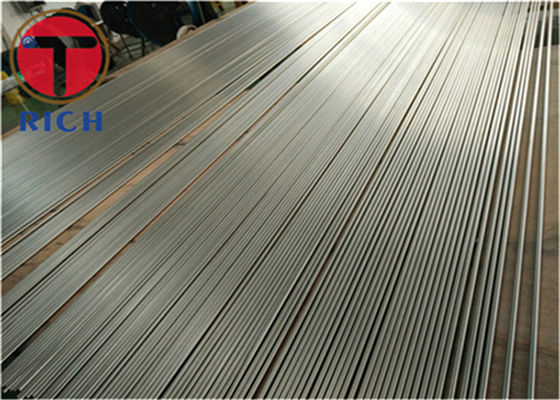

Product Pictures:
Company Introduction:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of Cold drawn ERW DOM tubes ASTM A513 1010 1020 1026 for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
