Cr Torich Double Tube Sheet Heat Exchanger Astm

Basic Information
Place of Origin: Zhejiang, China
Brand Name: TORICH
Certification: ISO
Minimum Order Quantity: 50 Kilogram/Kilograms
Price: USD 20-40 per Kilogram
Packaging Details: packing in wooden boxes, in woven bags,in cartons
Delivery Time: 15-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 Ton/Tons per Year
Detail Information
Standard: AISI, ASTM Type: Steel Plate
Technical: Cold Rolled Brand: Torich
Application: Boiler Plate, Container Plate, Flange Plate Category: Boiler Vessel Plate, Galvalume Steel Sheet
High Light:

cr double tube sheet heat exchanger

,

torich double tube sheet heat exchanger

,

double tube sheet heat exchanger astm


Product Description

Product Overview:





The spectacle blind is a solid circle with a handle, which is used for systems that are normally isolated.

The figure 8 blind plate is shaped like figure 8.

One end is a blind plate and the other end is a throttling ring,

but the diameter is the same as the pipe diameter of the pipeline and does not play a throttling role.



The spectacle blind plate is easy to use.

When isolation is required, the blind plate end shall be used.

When normal operation is required, the throttling ring end shall be used.

At the same time, it can also be used to fill the installation gap of the blind plate on the pipeline.

Another feature is that the identification is obvious and it is easy to identify the installation state.





Tubesheet is to drill holes slightly larger than the outer diameter of the pipe on the circular steel plate.

It is a round steel that plays the role of fixing the pipe and sealing medium in the heat exchanger.

It is a kind of fitting that penetrates and welds the pipe to fix it.



The accuracy of tube sheet processing, especially the pipe hole spacing and pipe diameter tolerance,

perpendicularity and finish, greatly affect the assembly and service performance of the chemical equipment listed above



It is mainly used in

chemical vessels, such as tubular heat exchanger, pressure vessel, boiler, condenser, central air conditioning,

evaporator and seawater desalination. It plays the role of supporting and fixing tubular.



The metal material makes it not only have strong rigidity, but also have great heat conduction performance.



Product Pictures:

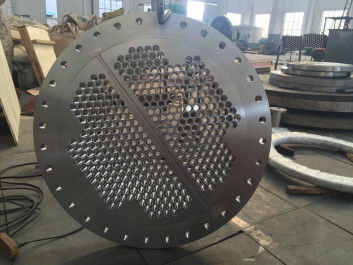

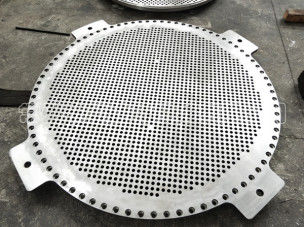

Cr Torich Double Tube Sheet Heat Exchanger Astm 0  Cr Torich Double Tube Sheet Heat Exchanger Astm 1



Company Introduction:

Cr Torich Double Tube Sheet Heat Exchanger Astm 2

Cr Torich Double Tube Sheet Heat Exchanger Astm 3



Packing and Delivery:

Cr Torich Double Tube Sheet Heat Exchanger Astm 4

Quality Control:



1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.



QQ20170630103157




FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
