Astm A213 304 316 Finned Stainless Steel Tubing
Product Details

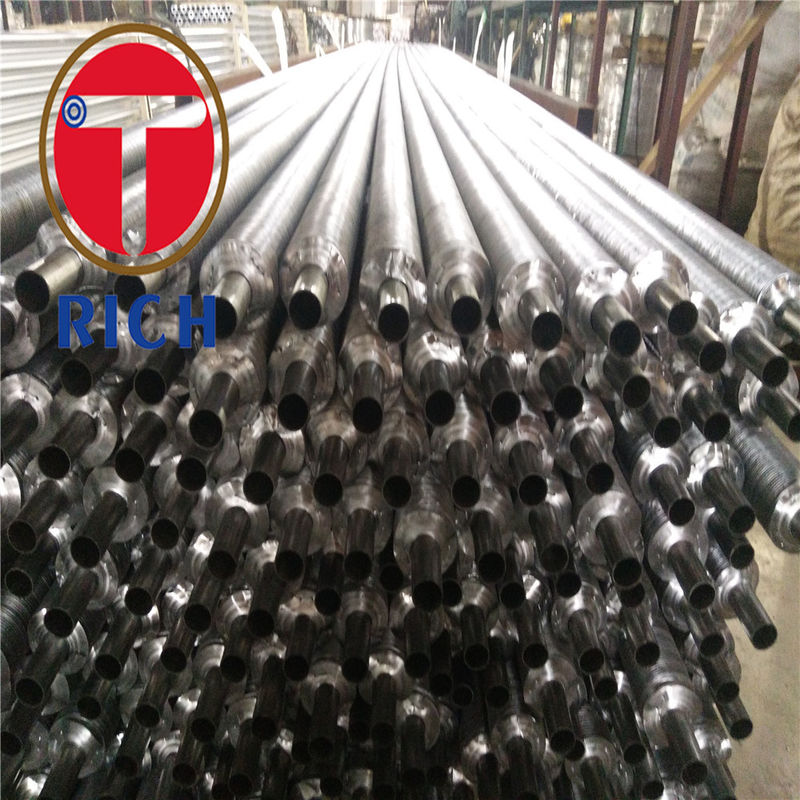

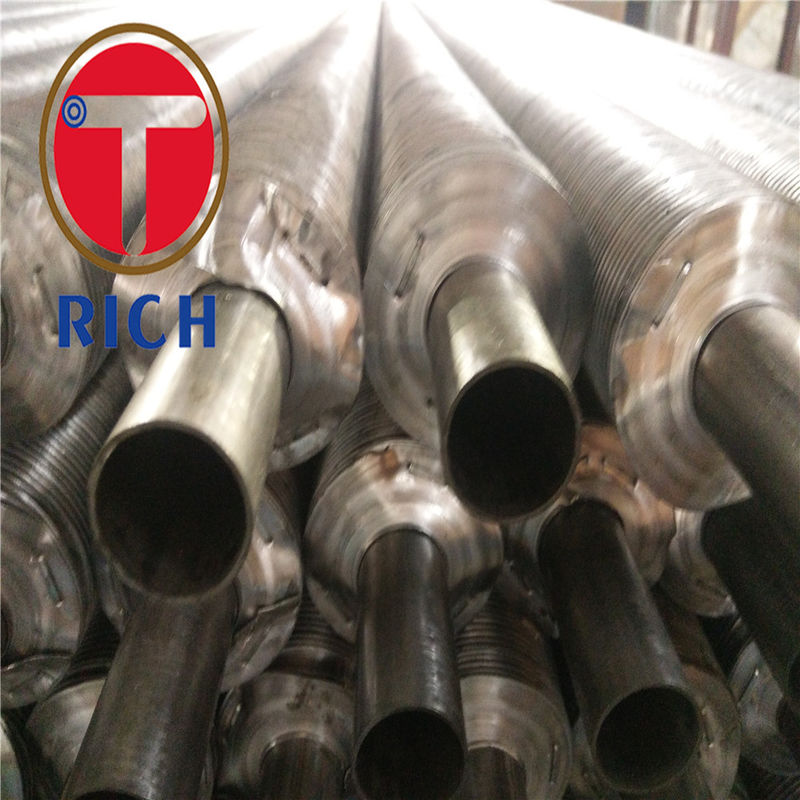

astm a213 finned stainless steel tubing
,304 finned stainless steel tubing
,316 finned stainless steel tubing
ASTM A213 304 316 Fin Tube Connector Fin Tube Air Cooler Finned Pipe Heat Exchanger Finned Stainless Steel Tubing
Finned tubes are used in applications involving the transfer of heat from a hot fluid to a colder fluid through a tube wall. The rate at which such heat transfer can occur depends on three factors: (1) the temperature difference between the two fluids; (2) the heat transfer coefficient between each of the fluids and the tube wall; and (3) the surface area to which each fluid is exposed. In the case of a bare (unfinned) tubes, where the outside surface area is not significantly greater than the inside surface area, the fluid with the lowest heat transfer coefficient will dictate the overall heat transfer rate. When the heat transfer coefficient of the fluid inside the tube is several times larger than that of fluid outside the tube (for example steam inside and oil outside), the overall heat transfer rate can be greatly improved by increasing the outside surface of the tube. In mathematical terms, the product of heat transfer coefficient for the outside fluid multiplied by the outside surface area is made to more closely match the product of the inside fluid heat transfer coefficient multiplied by the inside surface area.
Base tube material: SA192 SMLS 31.8mmOD*2.9mmTHK*7260mmLG
Fin Material: CS; FPM67fins X 1.5 mm THK x 75 mm W x 160 mm H
Manufacturing Process:

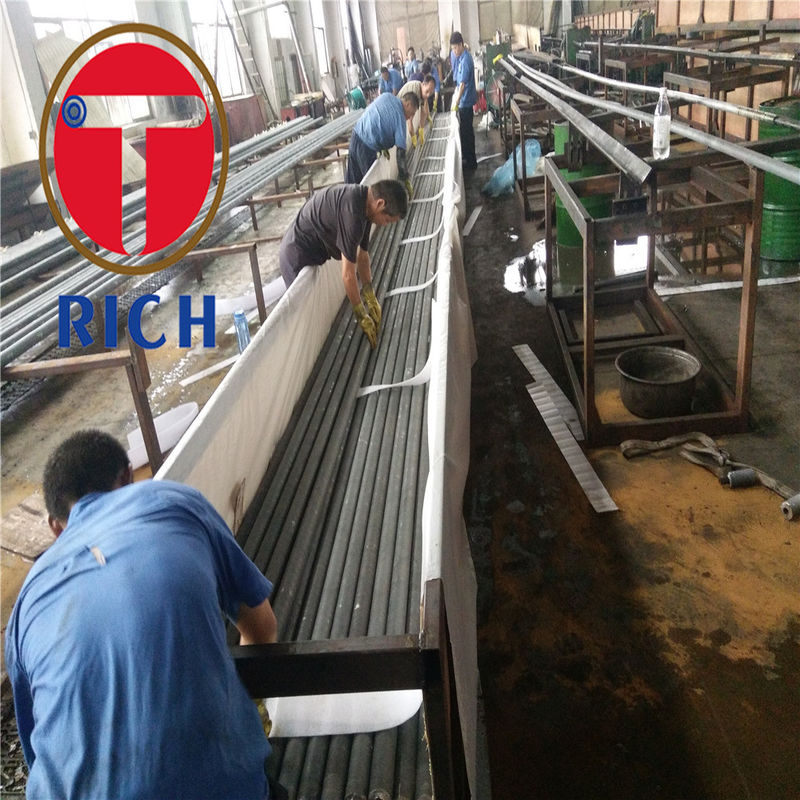

It adopts high frequency welding spiral technology, the national patent technology with high frequency power supplies as the heat source to heat the steel strip, steel pipe at the same time,be welded together
Material: Steel, Carbon Steel, etc.
Bare tube OD: 25-63mm Fin Pitch: 8-30mm Fin Height: <200mm Fin Thick: 1.5-3.5mm
| Name | Base tube (OD) mm | Fin Pitch (mm) | length (m) | |||
| Min | Max | Min | Max | Min | Max | |
| Extruded aluminum fin tube | 12.7 | 51 | 2.1 | 10 | 0.5 | 20 |
| L/LL/KL aluminum fin tube | 19 | 51 | 2.1 | 3.2 | 0.5 | 15 |
| Embedded aluminum fin tube | 19 | 42 | 2.3 | 3.2 | 0.5 | 15 |
| Low fin tube | 12.7 | 32 | 0.8 | 2 | 0.5 | 20 |
| Spiral fin tube | 12.7 | 70 | 0.5 | 20 | ||
| ERW HF spiral fin tube | 16 | 219 | 3 | 25 | 0.5 | 28 |
| ERW HF spiral serrated fin tube | 16 | 219 | 3 | 25 | 0.5 | 28 |
| Serrated width(mm) 10 min~26 max | Serrated depth(mm) 4 min~16 max | |||||
| ERW studded tube | 89 | 200 | 16 | 50 | 2 | 15 |
| DC ERW H/HH fin tube | 25 | 51 | 9 | 25 | 1 | 15 |
| H/HH fins | Length(mm) 60 min-150 max | Thickness(mm) 1.5 min~4 max | Width(mm) 30 min~50 max | |||
Applications
Typical examples of applications where finned tubes are used include the following:
- A wide variety of economizers and waste heat recovery units to utilize heat from boiler flue gas, gas turbine exhaust, incinerators, etc.
- Glycol dehydration units
- Fired heaters, such as LNG vaporizers, air pre-heaters, oil heaters, etc.
- Asphalt tank heaters
- Air coolers, such as compressor jacket water and lube oil coolers
- Lumber drying kilns, and similar applications
- Livestock enclosure and greenhouse heaters
-
