Bright Annealing Seamless Stainless Steel Capillary Pipe

Minimum Order Quantity : 200 Kg Price : USD 40-50 Per Kg
Packaging Details : In bundles Delivery Time : 4-6 Weeks
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 500 Tons Per Month
Place of Origin: Zhejiang China Brand Name: TORICH
Model Number: 304

Detail Information

Certification: ISO,BV,ROHS,UL Type: Seamless And Welded
Application: Medical Standard: ASTM,JIS,AISI,DIN,EN
Thickness: 1mm-40mm Outer Diameter: 6-630mm
Weight: 5-100 KG Warranty: 1 Year
High Light:

Seamless Stainless Steel Capillary Pipe

,

Bright Annealing Stainless Steel Capillary Pipe

,

Bright Annealing SS Capillary Tube

Product Description

TORICH Stainless Steel Small Medical Injection Moulding Machine Medical Tubes​





304 / 304 L:

The most common 300 stainless series alloy, good corrosion resistance, cold working characteristics and

relative cost effectiveness make this our most popular alloy. The "L" grade version has a lower carbon

content for reduced carbide precipitation during secondary welding operations.



17-7:

The addition of aluminum in this alloy provides improved tube strength and hardness while maintaining

good corrosion resistance. Can be heat treated to a higher tensile strength than can be achieved by cold work alone.



302:

Very similar corrosion resistance to stainless 304, but higher strength due to carbon content.

Typically not available in tubing, wire/solid only.



321:

Increased strength and corrosion resistance, especially at higher temperatures, are characteristics of this

alloy due to the addition of titanium to the base metal.



316 / 316 L / 316 LVM:

The addition of molybdenum to the base metal improves corrosion resistance for use in medical / food

service and other demanding tubing applications. "L" grade is a low carbon version for reduced carbide

precipitation during secondary welding operations. 316 LVM is melted in a vacuum to reduce impurities and and

create a uniform chemistry.



303:

An ideal stainless steel alloy for machining parts due to the addition of elements which reduce tool wear / expense.

Available for machined parts only, not offered as tubing.



347:

Characteristics are similar to 321, but the addition of several alloys allows tubing to withstand high temperatures

for longer periods.Aluminum 3000 & 6000 series: Lightweight, cost effective and easy to form, Aluminum is popular

for a variety of applications including aerospace and industrial.



Brass 260:

Composed of 70% Copper and the balance Zinc, this very ductile metal can be used in corrosive environments for

a wide variation of applications from appliance parts and ammunition cartridge cases to ornamental hardware.



Commodity name



Small diameter bright annealing seamless stainless steel capillary tube



Process method cold rolled/cold drawn
Stainless steel grades TP304/304L, TP310/S,TP316/316L, TP317L, TP321, TP347/H S31803/2205, 904L
Standard ASTM A213, A312, A511, A270, A269, A789, A790, DIN17456, DIN17458, JIS G3463
Size 0.8x0.1......
Testing

Chemical Analysis.
Hydrostatic or Nondestructive Electric Test,
Intergranular Corrosion Test,
Flaring Test,
Flattening Test,
Flange Test,
Grain Size Test

Air Under water Testing

Ultrasonic Testing

Eddy Current Testing

tube surface Bright annealing
Packing bundle, plywood case, both end with caps,seaworthy packing.
Application 1. General service
2. Curatorial Industry
3. Food Industry
4. Ornamental
5. Aerospace Industry
6. Petrochemical
7. Fluid transport
8. Nuclear Industry
9. Boiler heat- exchanger
10. Oil and gas service

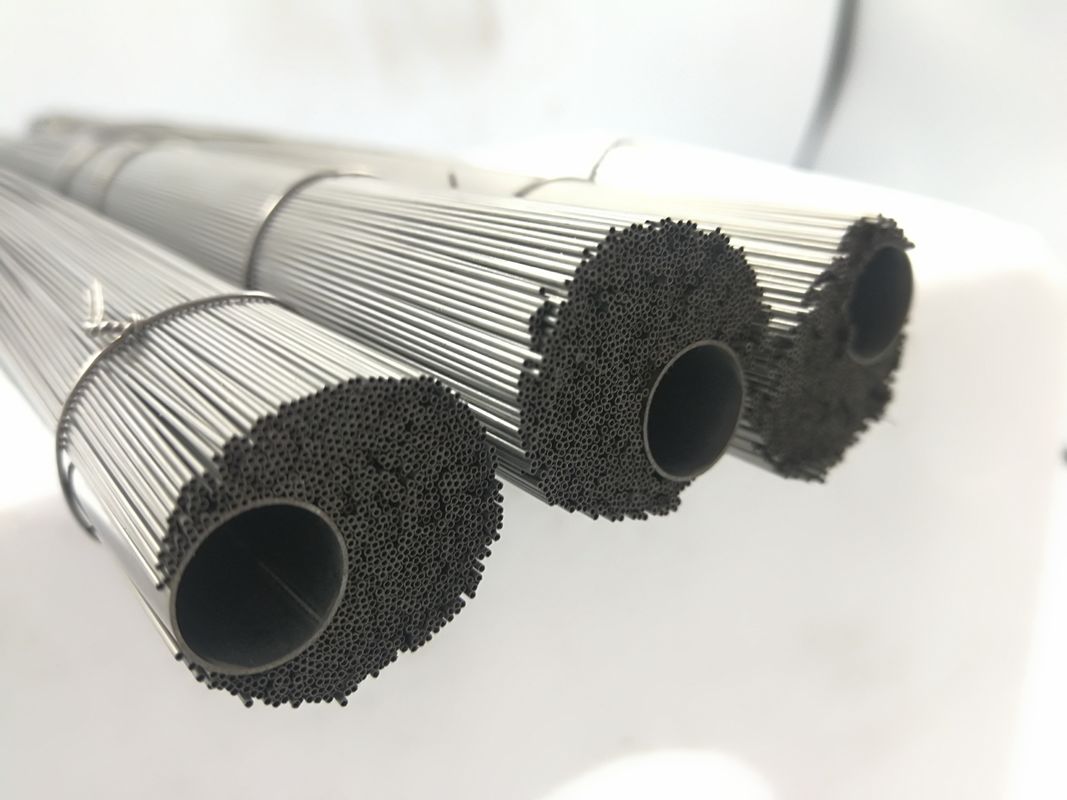

Bright Annealing Seamless Stainless Steel Capillary Pipe 0

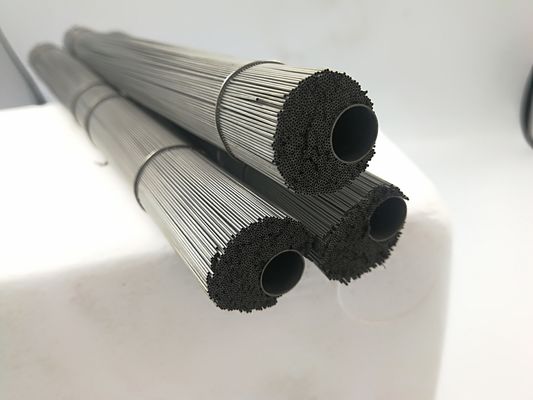

Bright Annealing Seamless Stainless Steel Capillary Pipe 1

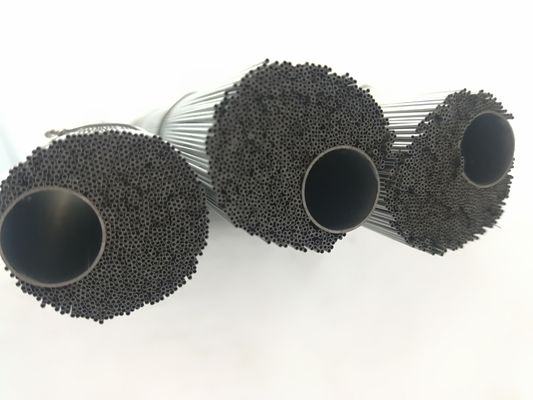

Bright Annealing Seamless Stainless Steel Capillary Pipe 2
