Flame Retardant Plastic Coated Q235 Steel Pipe For Mining Industry
Product Details
Flame Retardant Q235 Steel Pipe
,Mining Industry Q235 Steel Pipe
,Flame Retardant Q235 Steel Tube
TORICH Flame retardant Strong Adhesion Plastic Coated Steel Pipe for Mining
| Name | Flame retardant Strong Adhesion Plastic Coated Steel Pipe for Mining |
| Application | Mining |
| Material | Q235 based steel tube |
| Performance | |
| -25C~+75℃ | |
| High wear-resistant high-density polyethylene | |
| Petrochemical products, electricity, tap water, and environmental protection |
Plastic coated steel pipe for water supply and drainage:
Technical Description
Piping type: inner and outer plastic coated, inner plastic coated and galvanized outer coating material: epoxy resin, polyethylene
Product color: red, white, blue and gray (colors can be selected according to customer requirements) Processing technology: hot dipping, high-voltage electrostatic spraying, rotomolding, overmolding Pipe specifications: DN15-DN2200 (up to 3200 can be processed) execution Standard: CJ/T120-2008 Water supply plastic-coated composite steel pipe ety performance: All composite GB/T17219 standard impact strength: ≥55kg Gel time: ≤120 (200℃)
Connection method: clamps, flanges and threads, buried in the ground can be welded with bimetal or connected without damage
Plastic coated steel pipe for mining:
Features
1. Flame retardant, antistatic
2. Very strong adhesion
3. Corrosion resistance, not easy to scale, low fluid resistance
4. Main purpose and scope of application
Coated composite pipes are general-purpose pipes used in coal mines. They can be used for underground water supply and drainage, positive pressure ventilation, negative pressure ventilation, shotcreting and gas drainage. They must not be used for other purposes, and their use pressure must not exceed the nominal pressure.
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

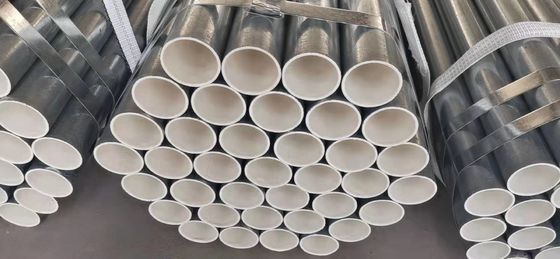

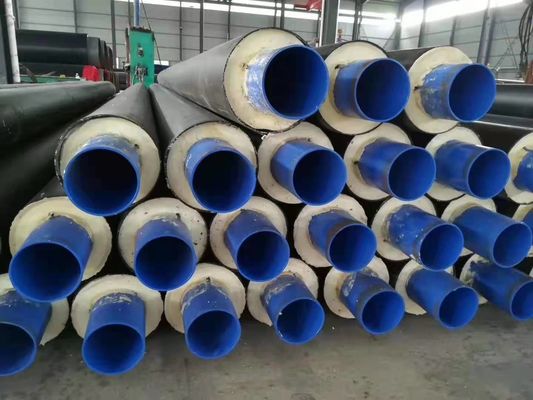

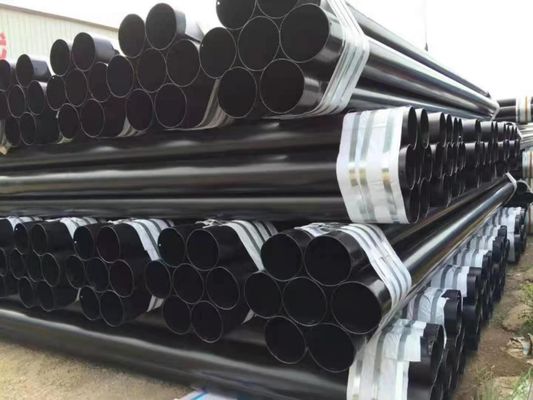

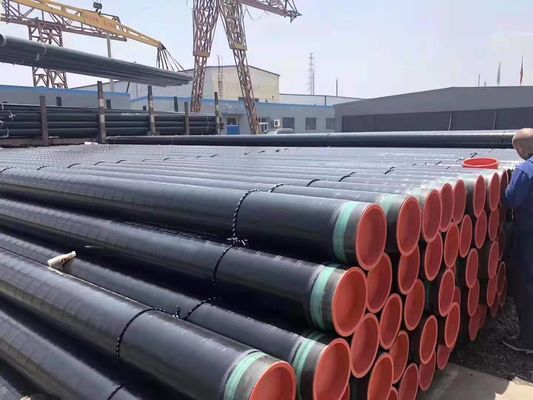

Product show:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Do you have agent or distributor in our country?
A: We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
Q: How is your production capability?
A: 1. 2000 tons monthly production capacity, 5000 tons monthly trading capability
2. Prompt and Timely shipment
Q: How to get the sample?
A: 1. You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2. Sample charges will be refunded when order is placed.
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
-
