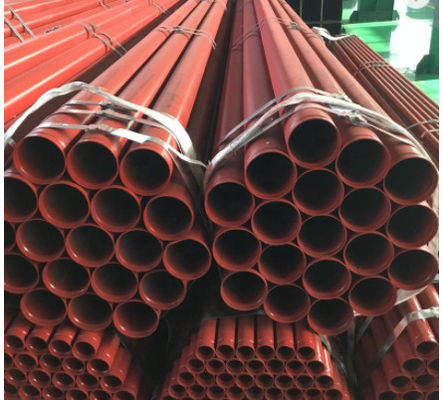

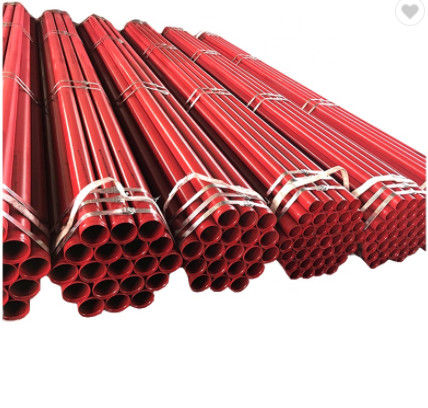

UL FM Plastic Lined Steel Fire Sprinkler Piping

Basic Information
Place of Origin: China
Brand Name: Torich
Certification: ISO 9001
Model Number: ASTM A135 or ASTM A795
Minimum Order Quantity: 20tons
Price: Negotiation
Packaging Details: In bundles
Delivery Time: 5-8 week days
Payment Terms: L/C, T/T
Supply Ability: 5000tons per year
Detail Information
Certification: ISO Application: Structure Pipe
Standard: Standard Grade: Q345,Q195,20#
Technique: ERW Section Shape: Round
Alloy Or Not: Non-alloy
High Light:

Plastic Lined Steel Fire Sprinkler Piping

,

UL FM Fire Sprinkler Piping

,

UL FM Fire Sprinkler Pipe


Product Description

UL FM Plastic Lining Steel Pipe Fire Sprinkler Piping Red Black Painted Steel PIpe
Product standard:ASTM A135 or ASTM A795
Specification:
O.D.: Φ33.7—Φ219.1 (mm)
Wall thickness: 2.75—5.0 (mm)
Anticorrosive: 1. hot galvanized; 2. powder coating; 3.painting

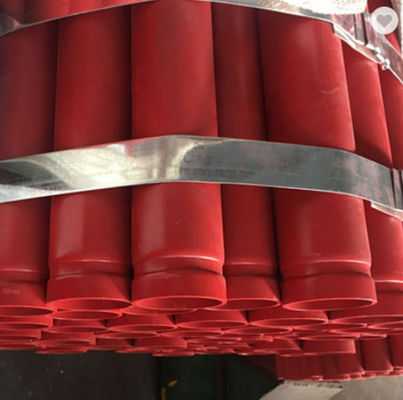

End state: 1.Grooved; 2. Plain end; 3.screwed & socketed
Function: Fire and water supply system in building

ASTM A135 (BLACK & GALVANISED) SCH10
N.D. O.D. WALL THICKNESS NOMINAL WEIGHT TEST PRESSURE
inch mm mm kg/m Mp
4/3 26.8 2.11 1.28 17.24
1 33.5 2.77 2.09 17.24
1-1/4 42.2 2.77 2.7 16.55
1-1/2 48.3 2.77 3.1 14.48
2 60.3 2.77 3.93 11.72
2-1/2 73 3.05 5.26 10.34
3 88.9 3.05 6.45 8.27
3-1/2 101.6 3.05 7.41 6.89
4 114.3 3.05 8.36 6.21
5 141.3 3.40 11.58 5.86
6 168.3 3.40 13.84 5.02
8 219 4.80 15.41 4.26
ASTM A135 (BLACK & GALVANISED) SCH40
N.D. O.D. WALL THICKNESS NOMINAL WEIGHT TEST PRESSURE
inch mm mm kg/m Mp
1/2 21.3 2.77 1.27 17.20
3/4 26.8 2.87 1.68 17.20
1 33.5 3.38 2.50 17.20
1-1/4 42.2 3.56 3.38 17.20
1-1/2 48.3 3.68 4.05 17.20
2 60.3 3.91 5.43 16.08
1-1/2 73 5.16 8.62 17.20
3 88.9 5.49 11.28 15.30
3-1/2 101.6 5.74 13.56 14.00
4 114.3 6.02 16.06 13.06
5 141.3 6.55 21.76 11.50
6 168.3 7.11 28.34 10.48
8 219.1 8.18 36.90 7.96

ASTM A795 (BLACK & GALVANISED)

N.D. O.D. SCH 10 SCH 30/40

WALL THICKNESS NOMINAL WEIGHT WALL THICKNESS NOMINAL WEIGHT

(mm) (inch) (mm) (inch) (mm) (inch) (kg/mtrs) (lbs/ft) (mm) (inch) (kg/mtrs) (lbs/ft)

15 1/2 21.30 0.84 ---- ---- ---- ---- 2.77 0.109 1.27 0.85

20 3/4 26.70 1.05 2.11 0.083 1.28 0.96 2.87 0.113 1.69 1.13

25 1 33.40 1.32 2.77 0.109 2.09 1.41 3.38 0.133 2.50 1.68

32 1-1/4 42.20 1.66 2.77 0.109 2.69 1.81 3.56 0.14 3.39 2.27

40 1-1/2 48.30 1.90 2.77 0.109 3.11 2.09 3.68 0.145 4.05 2.72

50 2 60.30 2.38 2.77 0.109 3.93 2.64 3.91 0.154 5.45 3.66

65 2-1/2 73.00 2.88 3.05 0.12 5.26 3.53 5.16 0.203 8.64 5.80

80 3 88.90 3.50 3.05 0.12 6.46 4.34 5.49 0.216 11.29 7.58

90 3-1/2 101.60 4.00 3.05 0.12 7.41 4.98 5.74 0.226 13.58 9.12

100 4 114.30 4.50 3.05 0.12 8.37 5.62 6.02 0.237 16.09 10.80

125 5 141.30 5.56 3.4 0.134 11.58 7.78 6.55 0.258 21.79 14.63

150 6 168.30 6.63 3.4 0.134 13.85 9.30 7.11 0.28 28.29 18.99

200 8 219.10 8.63 4.78 0.188 25.26 16.96 7.04 0.277 36.82 24.72

250 10 273.10 10.75 4.78 0.188 31.62 21.23 7.08 0.307 51.05 34.27



UL FM Plastic Lined Steel Fire Sprinkler Piping 0
