SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System

SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System

Exhaust System Aluminized Steel Tube

ERW Aluminized Steel Tube

Aluminized Steel Tube SA1D

Place of Origin:

Zhejiang,China

Brand Name:

TORICH

Certification:

ISO 9001 ISO 14001 TS16949

Model Number:

JIS G3314

Chat Now
Chat Now
Product Details
Product Name:
JIS G3314 SA1D 38.1*1.6 Welded Aluminized Steel Tubes
Keyword:
Aluminized Steel Tubes
Application:
For Exhaust System
Type:
ERW/HFW
Shape:
Round
Material:
1010,1020,1045,SPHC,SPCC,4130
Length:
Max12000mm
OD:
5-420mm
WT:
0.5-50mm
Brand:
TORICH
Highlight:

Exhaust System Aluminized Steel Tube

,

ERW Aluminized Steel Tube

,

Aluminized Steel Tube SA1D

Payment & Shipping Terms
Minimum Order Quantity
10 tons
Price
900-1200 usd per ton
Packaging Details
JIS G3314 SA1D 38.1*1.6 Welded Aluminized Steel Tubes,packing in standard marine package
Delivery Time
20-45 days
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
50000 tons per year
Product Description

JIS G3314 SA1D 38.1*1.6 Welded Aluminized Steel Tubes

ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing

Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm

Grade: 1008,1010, 1020, 1026

Production: ERW + DOM

Steel Grade and Chemical Compositions:
Steel Grade C Mn P S Si Cr Mo
max   max max max min
1008 0.10 0.5 0.035 0.035
1010 0.08-0.13 0.30-0.60 0.035 0.035
1018 0.14-0.20 0.30-0.60 0.035 0.035
1020 0.17-0.23 0.30-0.60 0.035 0.035
1026 0.22-0.28 0.60-0.90 0.035 0.035
1035 0.31-0.38 0.60-0.90 0.035 0.035
4130 0.28-0.33 0.40-0.60 0.035 0.035 0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035 0.035 0.15-0.35 0.80-1.10 0.15-0.25



Packing:

In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing

Deliver condition:

1. A.W.H.R. "as welded" from hot-rolled steel

2. A.W.C.R. "as welded" from cold-rolled steel

3. S.D.C.R. "sink-drawn", cold-rolled steel

5. M.D. mandrel drawn

6. S.S.I.D. special smooth inside diameter

Please specify the delivery condition when sending the enquiry!

Thermal condition:

1. No final thermal treatment

2. Stress relieved

3. Annealed

4. Normalized

Applications: for Machinery, Mechanical Engineer, Automotive Parts,Agricultural.

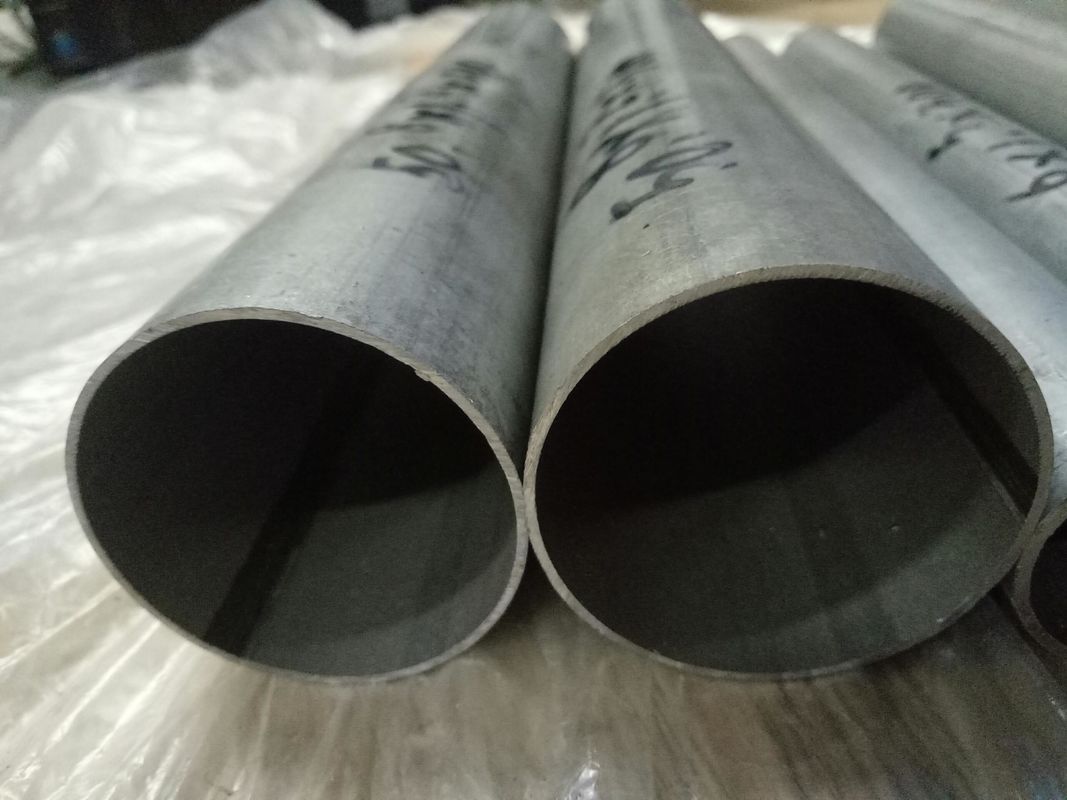

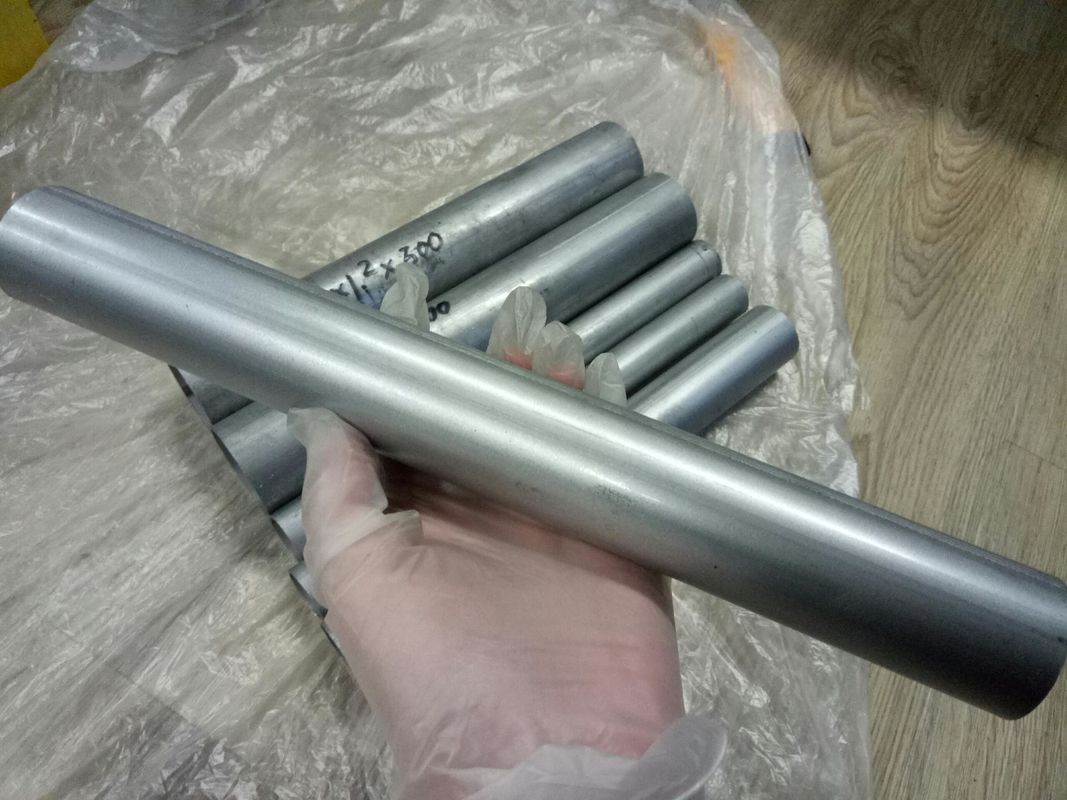

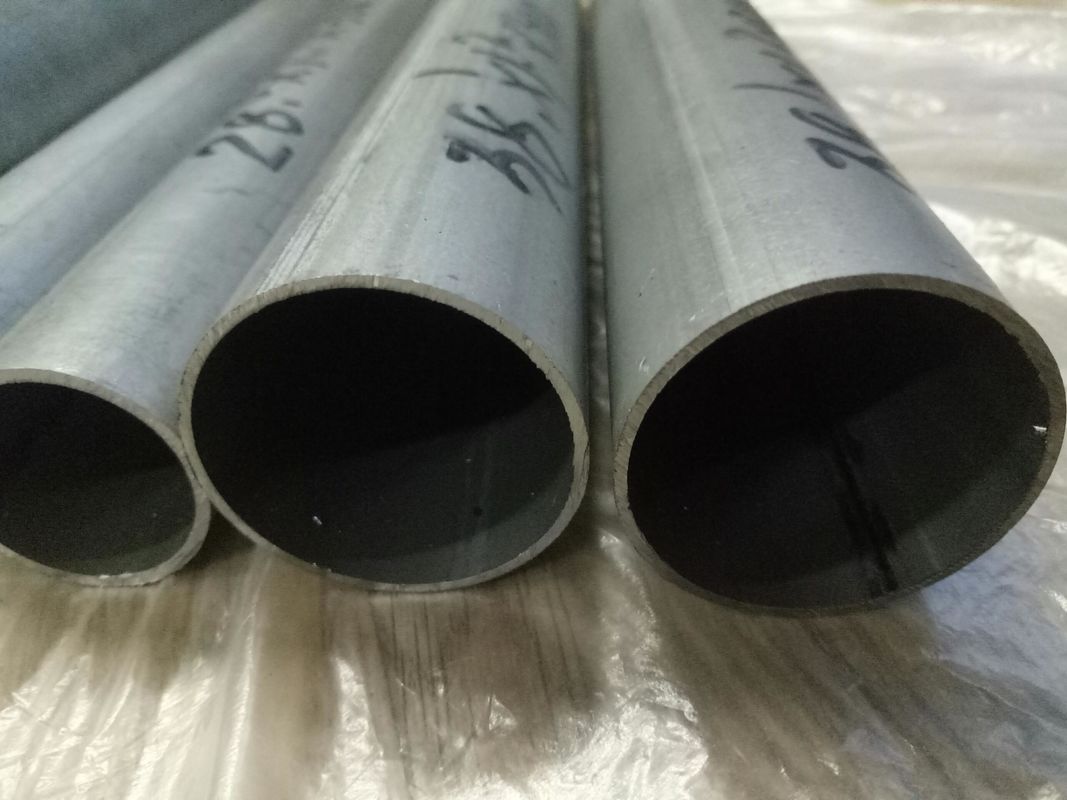

Product pictures

SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System 0SA1D ERW Type Welded Aluminized Steel Tube For Exhaust System 1



OD127mm*WT1.5mm ERW Steel Tubes with Erased Seam for Heavy Truck Exhaust System
