316 304 Needle Micro Stainless Steel Capillary Tube Cold Drawing

Product Description

316 304 Needle Micro Stainless Steel Capillary Tube

1. The main Products and material
Stainless steel Welded pipe , seamless pipe , BA tube , small size pipe , capillary tube ,ect .
304/L/H,316/L/H,316Ti,321/H, 309S/H,310S/H,317/H,NO8904,S31254,800/H,S31803,32205,S32750,S32760
Stainless Steel Capillary Tube
2. Technics :
Welded capillary tube : Use precise strip welded by welding machine
Seamless capillary tube : cold drawing

3. Size :
OD 0.5-10MM
Thickness 0.02 - 1.0mm

4.Surface :

2B:
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.
Medical equipment, Food industry, Construction material, Kitchen utensils etc.

BA(NO.6)
Those processed with bright heat treatment after cold rolling
Kitchen utensils, Electric equipment,Building construction etc

Mirror(No.8)
Shinning like a mirror
Building construction, decoration etc.

NO.3
Those finished by polishing with No.100 toNo.120 abrasives specified in JIS R6001.
Kitchen utensils, Building construction etc.

NO.4
Those finished by polishing with No.150 toNo.180 abrasives specified in JIS R6001
Kitchen utensils, Building construction, Medical equipment etc

Hairline
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size
Building Construction etc.

No.1
The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling
Chemical tank, pipe etc.

5.Application :
Medical , accessories ,decorate ,temperature tube ,instrument tube ,ect

6.Process : cold rolled cold drawn

7.Tolerance :
Outer diameter :±0.1mm
Thickness :±0.02mm
Length :±0.5mm

8. Packing
1.with plastic cap to protect both ends
2.plastic bag wrapped outside the pipe
3.bundles to be covered by polythene & strapped securely
4.if require ,then pack into wooden box.

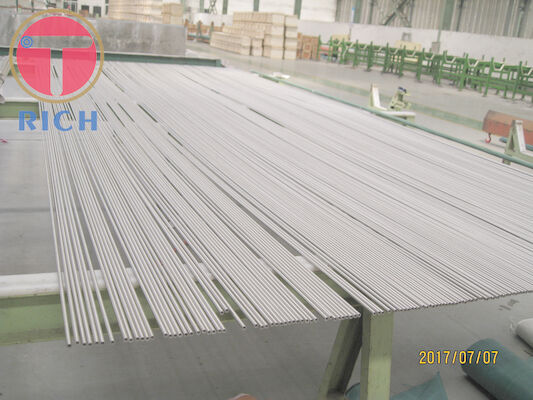

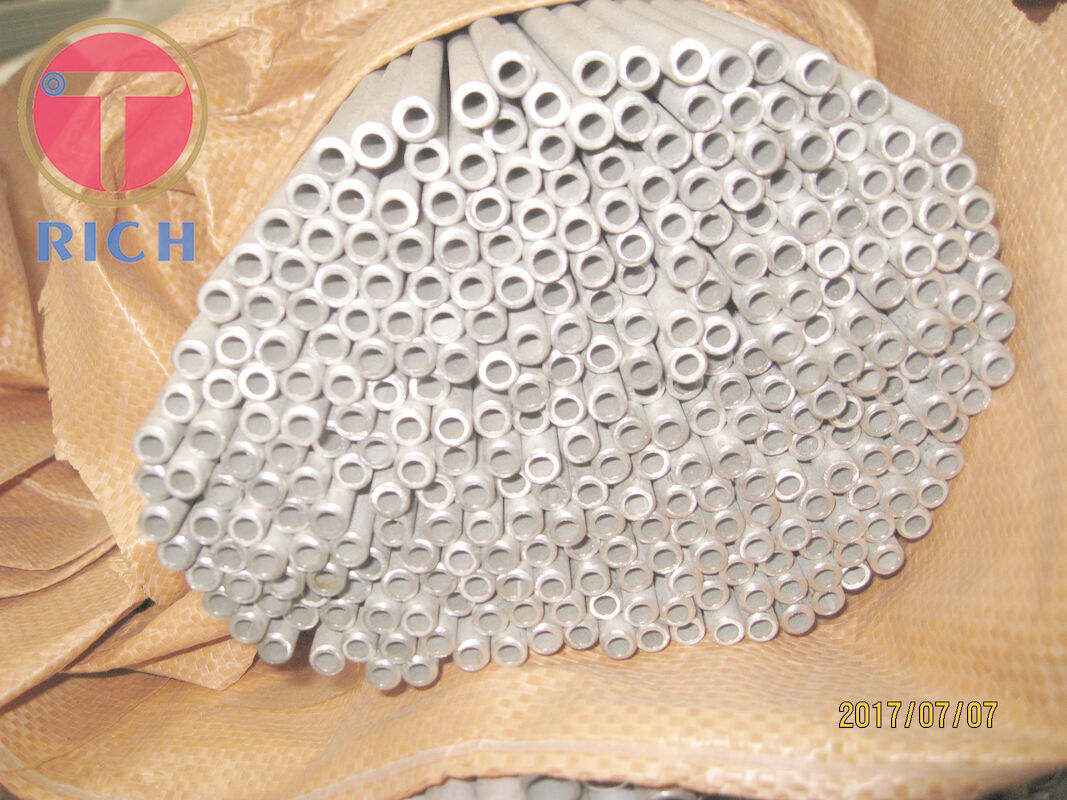

PRODUCT PICTURES:
