High Precision Hydraulic Steel Pipe Astm 2mm Thickness
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5Tons | Price : | USD10-100/PC |
---|---|---|---|
Packaging Details : | Stainless Steel Piping Fittings are packed in wooden boxes in seaworthy packing. | Delivery Time : | 30-45 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 2000Tons per Year |
Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001, ISO14001, TS16949 | Model Number: | GB/T12459 |
Detail Information |
|||
Keyword: | Stainless Steel Elbow | Grade: | 316L 304L 321 310S 904L 2205 Etc |
---|---|---|---|
Surface: | Polish | Dimension: | DN15 To DN600 |
Thickness: | Sch5S-Sch160 | Type: | 1.0D 1.5D 3D 5D 8D 10D |
Raw Material: | Seamless/Welde Pipe, Steel Sheet, Forging | Application: | Petrochemical Plant |
High Light: | Stainless Steel 90 Degree Lr Elbow,DN15 90 Degree Lr Elbow,GB/T12459 90 Degree Lr Elbow |
Product Description

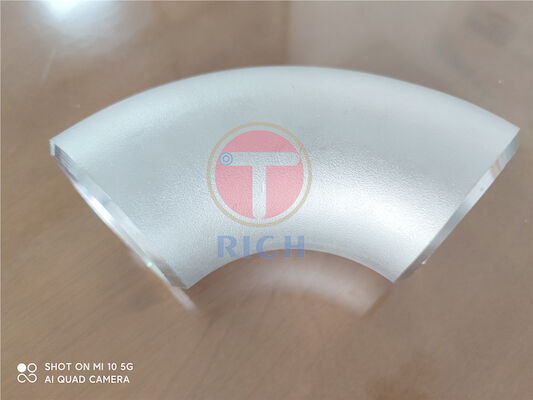

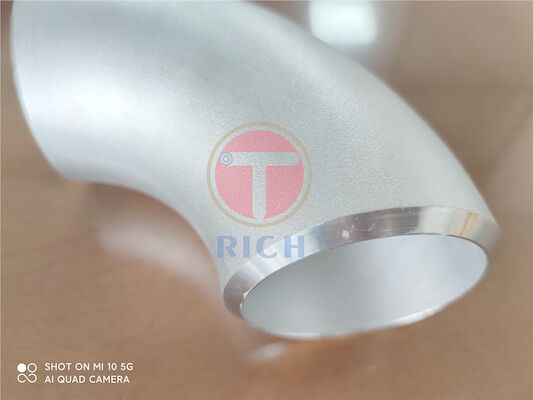

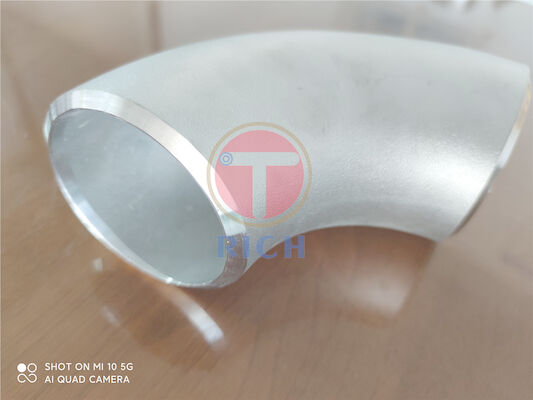

TORICH GB/T12459 DN15 to DN600 TP304 304L Stainless Steel 90 Degree Elbow
Size: seamless 1/2''~12'' (DN15-DN600)
welded 1/2''~12'' (DN15~DN1200)
Standard: GB/T12459, GB/T13401, GB14383, SH 3408, SH 3409,EN10253-4 EN 10357,
ASME B16.9, DIN2605, DIN2607,JIS2312, JIS2313, MSS SP-43
Thickness: SCH5S-SCH160
Material: 317/L; 304/L; 316/L; 310/S; 309/S; 347/H; 321/321/H; 904/L; 2205 etc
Raw Material: Seamless pipe, Welded pipe, Steel sheet, Forging (High pressure)
Producing Process: Extrussion moulding, Pressing, Cold-Working, Machining, Hot-bending, Welded, Heat treatment.
Applications: Petrochemical Plant, Fossil Power Plant, Food Machinery, Gryogenics, Petroleum Refining, Nuclear Power Plant
DN | NPS | OD | Center to End | Center to Center |
25 | 1 |
32 33.4 |
25 | 50 |
32 | 1 1/4 |
38 42.2 |
32 | 64 |
40 | 1 |
45 48.3 |
38 | 76 |
50 | 2 |
57 60.3 |
51 | 102 |
65 | 2 1/2 |
76 73 |
64 | 128 |
80 | 3 | 89 | 76 | 152 |
90 | 3 1/2 | 101.6 | 89 | 178 |
100 | 4 |
108 114 |
102 | 204 |
125 | 5 |
133 141.3 139.7 |
127 | 254 |
150 | 6 |
168.3 159 165 |
152 | 304 |
200 | 8 |
219 216 |
203 | 406 |
