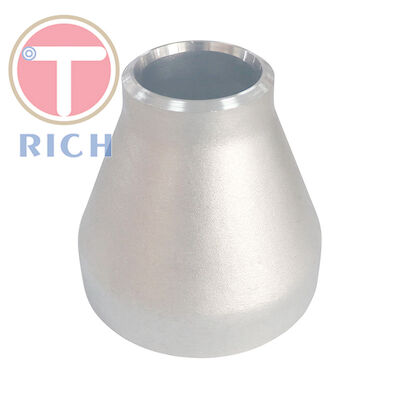

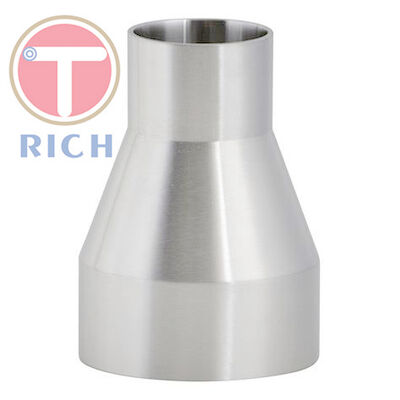

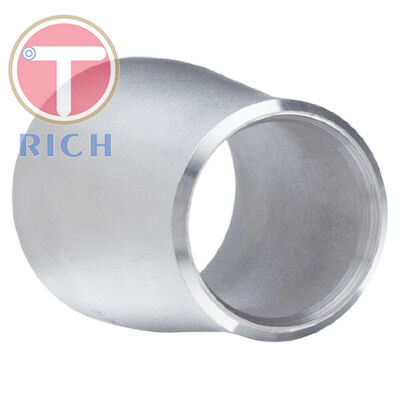

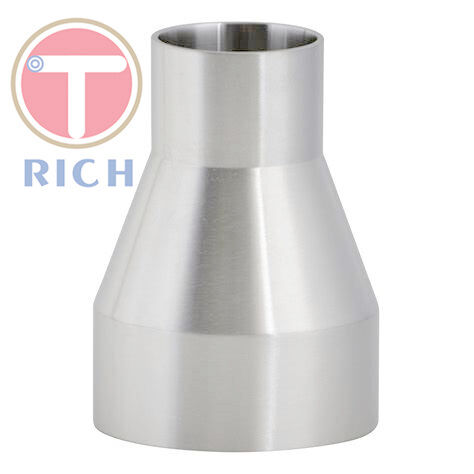

ASME B16.9 10" Butt Weld Concentric Reducer Seamless DN6 DN100
Product Details
10" Butt Weld Concentric Reducer
,Seamless Butt Weld Concentric Reducer
,ASME B16.9 Butt Weld Concentric Reducer
ASME B16.9 Concentric Reducer
A concentric ASME B16.9 Reducer is cone shaped, which gradually decreases around the pipe. In instances where there is a possibility of accumulation of air, the reducer results in cavitation. Often, the ASME B16.9 Concentric reducer is a part of high strength building metal materials as well as vertical piping systems. Usually, Stainless Steel Concentric reducer exhibit superior resistance to pitting, stress related corrosion cracking and oxidation. As typical of stainless steels, they could be used in a wide range of environmental settings without losing their high mechanical properties such as tensile strength and hardness along with good creep resistance. However, one must note that the properties of different stainless steel grades differ from each other, so the selection of the material must be done according to the application these reducers are to be used for.
Specification of Buttweld Concentric Reducer
| Specifications | Concentric Reducer |
|---|---|
| Concentric Reducer Fitting Pipe Fittings size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| BW Concentric Reducer Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Flanged Concentric Reducer Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Reducer Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Concentric Reducer Type B Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| BW Concentric Reducer Fittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Reducer Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Key markets and industries for Concentric Reducer |
|
| Application |
|
Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
