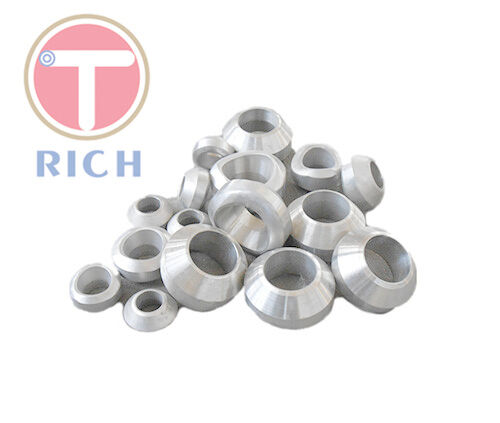

ASTM A350 LF2 / A350 LF3 Carbon Steel Weldolet 4 Inch SCHSTD
Product Details
ASTM A350 LF3 Carbon Steel Weldolet
,4 Inch Carbon Steel Weldolet
,SCHSTD Carbon Steel Weldolet
ASTM A350 LF2 / A350 LF3 Carbon Steel Weldolet Standards
| Standards | Designation |
|---|---|
| ASTM | A 350 LF2/A|350 LF3 LTCS (Low Temperature Carbon Steel). |
| ASME | SA350 LF3/SA350 LF2 |
Size: DN6~DN150(1/8”~6”)
Stainless Steel: ASTM a182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L olets weldolet threadolet sockolet flangeolet.
Duplex Steel: duplex 2205 2507 s31803 s32750 s32760 s31254 254smo smo254 904l uns no8904 astm a182 f51 f53 f44 f55 f60 f62 s31050 s32205 s32550 uns no8367 olets weldolet threadolet sockolet flangeolet.
Carbon Steel: ASTM A105, A694 F42/46/52/56/60/65/70,A350 LF1 LF2 LF3 olets weldolet threadolet sockolet flangeolet.
Alloy Steel: ASTM A182 F5/F9/F11/F22/F91 olets weldolet threadolet sockolet flangeolet.
Nickel Alloy: ASTM B 564 / 160 / 472 nickel 200 201 olets weldolet threadolet sockolet flangeolet , alloy 255 20 31 6xn olets weldolet threadolet sockolet flangeolet , monel 400 k500 404 400a 30c olets weldolet threadolet sockolet flangeolet , inconel 600 601 625 718 783 690 x750 olets weldolet threadolet sockolet flangeolet , incoloy 800 800h 800ht 825 901 925 6mo 25-6mo olets weldolet threadolet sockolet flangeolet , hastelloy b b2 b3 c c4 c22 c276 c2000 x g-30 olets weldolet threadolet sockolet flangeolet , nimonic 80a 90 263 olets weldolet threadolet sockolet flangeolet.
Types:
Buttweld Outlets (Weldolet), Socket Weld Outlets (Sockolet), Threaded Outlets (Threadolet), Outlets (Nipolet), 45° Lateral Outlets (Latrolet), Elbow Outlets (Elbolet )
Manufacture Standards: MSS SP-97, GB19236 etc.
Materials:
20#, A105, 304/304L, 316/316L, 347, 347H, 317, 317L, 321 etc.
Rate
SCHSTD, SCHXS, SCHXXS, 2000LB, 3000LB, 6000LB (SCH80, SCH160, XXS)
Chemical Composition Of ASTM A350 LF2 / A350 LF3 Carbon Steel Weldolet
| Element | Composition, % |
| Carbon | 0.35 max |
| Manganese | 0.60-1.05 |
| Phosphorus | 0.035 max |
| Sulfur | 0.040 max |
| Silicon | 0.10-0.35 |
| Copper | 0.40 max (1) |
| Nickel | 0.40 max (1) |
| Chromium | 0.30 max (1-2) |
| Molybdenum | 0.12 max (1-2) |
| Vanadium | 0.08 max |
| (1) The sum of copper, nickel, chromium, molybdenum and vanadium shall not exceed 1.00%. (2) The sum of chromium and molybdenum shall not exceed 0.32%. Note: For each reduction of 0.01% below the specified carbon maximum (0.35%), an increase of 0.06% manganese above the specified maximum (1.05%) will be permitted up to a maximum of 1.35%. | |
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
