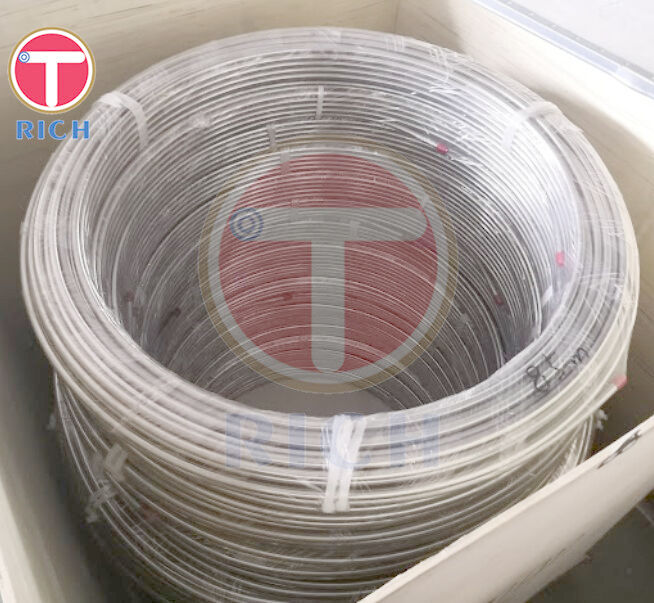

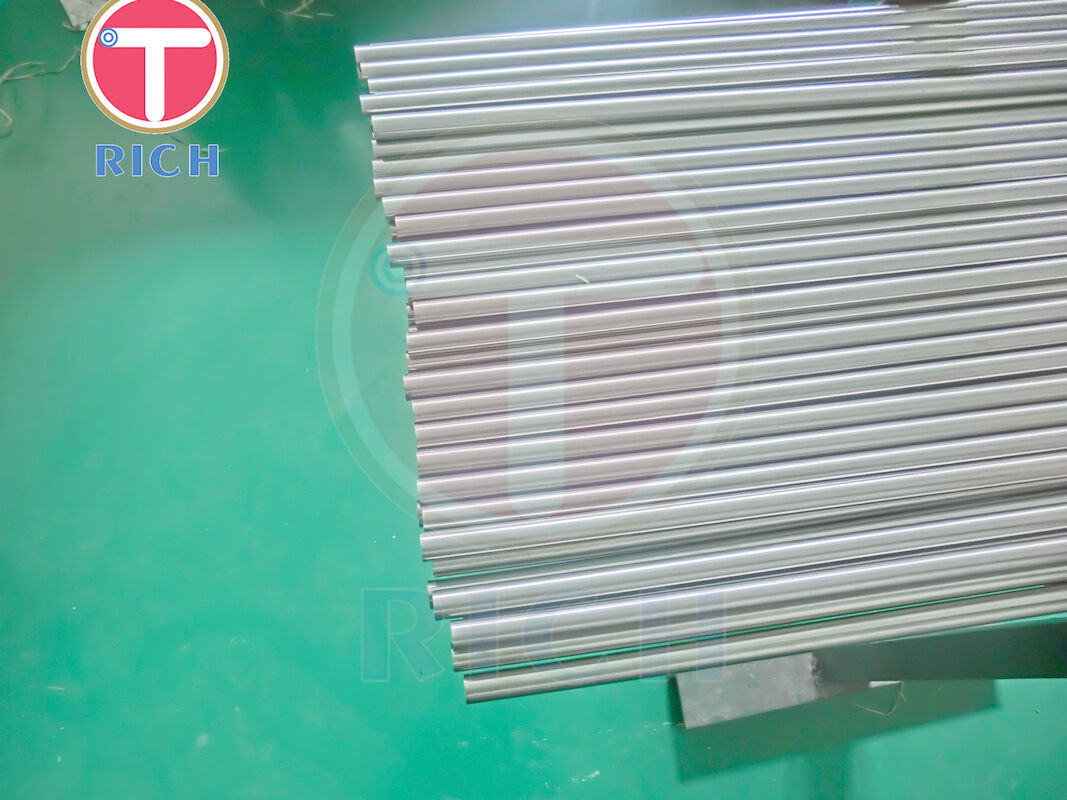

ASTM A269 316Ti Seamless Stainless Steel Welded Pipe Coil Shape
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
IS09001 ISO14001 TS16949
Model Number:
A269 A268 A249
Trading Properties
Minimum Order Quantity:
0.5 tons
Price:
Negotiation
Payment Terms:
L/C, T/T
Supply Ability:
5000tons per year
Product Summary
OD 1/16" to 3/4" WT 0.010" to 0.083" 321H 304 316 316Ti Seamless Welded Coil stainless steel tubing coiling Quick detail: Product name : OD 1/16" to 3/4" WT 0.010" to 0.083" 321H 304 316 316Ti Seamless Welded Coil stainless steel tubing coiling OD: 1/16" to 3/4" WT:0.010" to 0.083" Material...
Product Details
Highlight:
ASTM A269 Stainless Steel Welded Pipe
,316Ti Stainless Steel Welded Pipe
,Seamless Stainless Steel Tubing Coil
Material:
Stainless Steel
Shape:
Round And Coil
Length:
150m Or Others
Delivery Condition:
Bright Annealing
Product Description
OD 1/16" to 3/4" WT 0.010" to 0.083" 321H 304 316 316Ti Seamless Welded Coil stainless steel tubing coiling
Quick detail:
Product name :
OD 1/16" to 3/4" WT 0.010" to 0.083" 321H 304 316 316Ti Seamless Welded Coil stainless steel tubing coiling
OD: 1/16" to 3/4"
WT:0.010" to 0.083"
Material:Stainless steel
Steel grade: 321H 304 316 316Ti
Other Special material is also available.
Feature:
Raw material is from Big mill ,like Baosteel ,TISCO,POSO.
Clean workshop
High precision
High Strength
Tolerance as per standard ASTM A269:
| Outside Diameter | Thickness | Length |
| ＜38.1 ±0.13mm | OD ≤12.7 ±15% OD ≥12.7 ±10% | OD＜38.1 ±3.2 OD ≥38.1 ±4.8-0 |
| ≥38.1~88.9mm±0.25 |
Tolerance as per stanard ASTM A 249:
| Outside Diameter | Thickness | Length | |
| ＜25.4 | ±0.10 | ±10% | OD＜50.8 ±3.0-0 |
| ≥25.4~38.1 | ±0.15 | OD ≥50.8 ±5.0-0 | |
Application :
Oil and gas control lines
Chemical injection lines
Below sea ety valves
Chemical processing plant steam and heat trace bundles
Fluid and gas transfer.
Architectural applications
Hypodermic needles
Automotive industry
Food and beverage industry
Marine industry
Pharmaceutical industry
Production method: Cold drawing or cold rolled +Bright annealing
