HG20592 F5 F9 Alloy Fittings Slip Blind Flange Stainless Steel
Basic Properties
Place of Origin:
ZHEJIANG, CHINA
Brand Name:
TORICH
Certification:
ISO9001, ISO14001, TS16949
Model Number:
HG20592
Trading Properties
Minimum Order Quantity:
1000 Pieces
Price:
USD1-100/Piece
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
20000Tons per Year
Product Summary
TORICH HG20592 F11 F22 F91 F5 F9 F51 Alloy Fittings Stainless Steel Tube Pipe Blind Flange Type: (1)PL: PL Flange; (2)WN: Weld Neck Flange (3)SO: Slip On Flange (4)BL: Blind Flange (5)TH: Threaded Flange (6)IF: Integral Pipe Flange (7)SW: Socket Weld Flange Technical Standard: HG20592,ASME B16.5...
Product Details
Highlight:
F5 Alloy Steel slip blind flange
,HG20592 Slip Blind Flange
,DN1200 Stainless Steel Blind Flange
Standard:
ANSI B16.5,ANSI B16.47 A/B,BS3293,BS4504,JIS,HG,EN1092,DIN,GB9112,AWWA C207
Surface:
Customers't Requirement
Material:
304/L,316/L,321/L,317/L,347/H,904L,310S,Duplex2205/S31803/F51, 2507/S32750/F53
Pressure:
150#,300#,400#,600#,900#,1500#,PN10,PN16,PN25,PN40,JIS 5K,JIS 10K
Size:
DN15-DN1200
Usage:
Machinery Parts
Product Description
TORICH HG20592 F11 F22 F91 F5 F9 F51 Alloy Fittings Stainless Steel Tube Pipe Blind Flange
Type:
(1)PL: PL Flange;
(2)WN: Weld Neck Flange
(3)SO: Slip On Flange
(4)BL: Blind Flange
(5)TH: Threaded Flange
(6)IF: Integral Pipe Flange
(7)SW: Socket Weld Flange
Technical Standard:
HG20592,ASME B16.5,DIN2630WN,JIS2220PL,ASTM A182 etc
Steel Grade:
Stainless Steel: 304,316,316Ti,321 347
Alloy Steel: F11,F22,F91,F5,F9,F51
Duplex Stainless Steel :F51,F53,F55,F60
Application:
It is widely used in petroleum, chemical, nuclear power plant, food manufacturing, construction, shipbuilding,
paper making, pharmaceutical and other industries. In pipeline engineering, flange is mainly used for pipeline connection.
1. Stainless steel flange is used to connect pipes.
2. Stainless steel flange is used to connect valve and pipe.

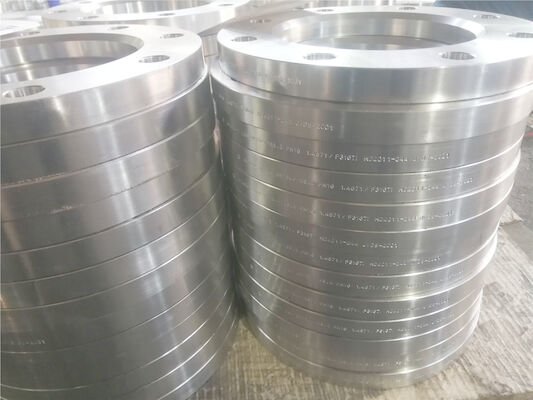

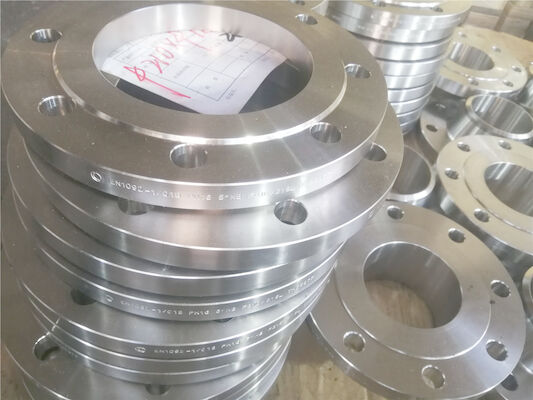

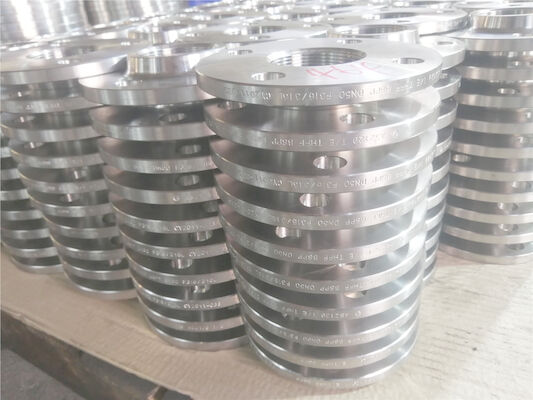

Products Pictures:
