TORICH DIN2462 Sputtering Target 304l Tubing 133x4x4113mm

TORICH DIN2462 Sputtering Target 304l Tubing 133x4x4113mm

MOQ: 10 Tons
Standard Packaging: Tubes are packed in bundles or wooden boxes in seaworthy packing.
Delivery Period: 20-30 work days
Payment Method: L/C, D/A, D/P, T/T, Western Union,
Supply Capacity: 5000Tons per Year
Detail Information
Place of Origin
ZHEJIANG, CHINA
Brand Name
TORICH
Certification
ISO9001, ISO14001, TS16949
Model Number
DIN2462 304L
Keyword:
Stainless Steel Tube For Sputtering Target
Material:
304L
OD:
133 Mm
WT:
4 Mm
Length:
4113 Mm
Usage:
Sputtering Target
Delivery Condition:
Annealed And Pickled
Type:
Seamless
Highlight:

304l Sputtering Target Tubing

,

133x4x4113mm 304l Tubing

,

DIN2462 304l Tubing

Product Description

TORICH DIN2462 304L Stainless Steel Pipe 133x4x4113mm for Sputtering Target

Quick Details:

Grade:304L

Specification: 133*4*4113mm

Tolerance of OD:132.8-133.5mm

Tolerance of ID:124.5-125.2mm

Tolerance of Length:-0/+5mm

Ellipticity: Roundness deviation≤0.10mm

Straightness deviation: Overall length direction≤0.5mm

Standard:DIN2462



Special requirements:

1. Quality requirements:

Tolerance of OD:132.8-133.5mm

Tolerance of ID:124.5-125.2mm Tolerance of Length:-0/+5mm

Ellipticity: Roundness deviation≤0.10mm

Straightness deviation: Overall length direction≤0.5mm



2. Appearance requirements:

The inner and outer surface of the steel pipe shall be free from visible cracks, scabs and deformation caused by bumping bow,

and the surface roughness Ra<32um.

The outer end shall be free from deformation, elliptical notch and other defects, and the pipe body shall be free from pits

(pits deeper than 0.1mm are not allowed on the inner wall of the steel pipe),inclusions and other defects. There shall be no scratch (0.1mm).

Dirt on the inner hole: there shall be no oil pollution inside and outside the steel pipe or dirt and rust that can not be removed by fine sandpaper.



3. Packing requirements:

Casing cap at both ends of steel pipe, woven bag packing



4. Requirements for lettering:

TP304L 138mm*4.4mm HEAT NO:×××

Note:(The size is only used ink-jet printing, the size of ink-jet printing should also be written on the outer package, not the length)



Application:

Planar Sputtering Target,

Alloy Sputtering Target

Cylindrical Ag alloy Sputtering Target

Metal Single Crystals

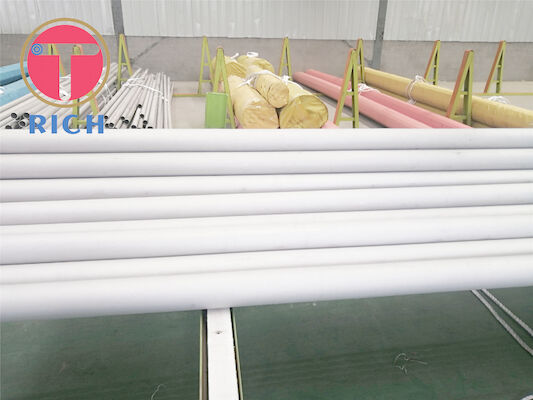

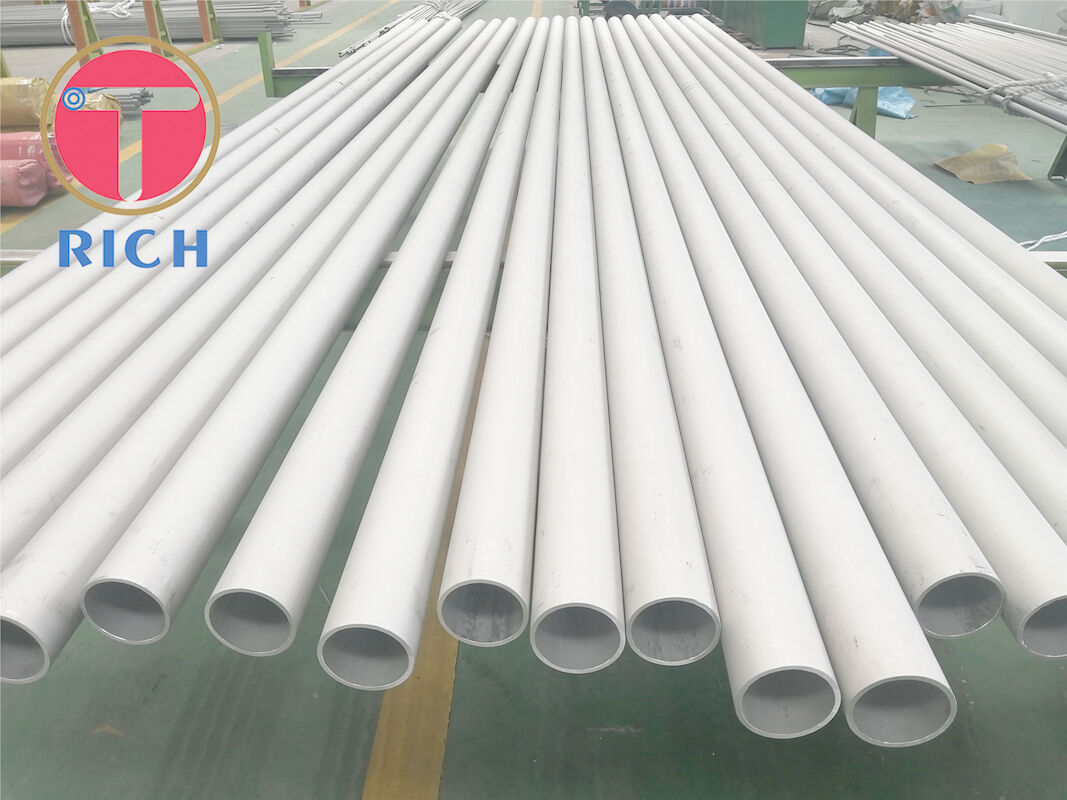

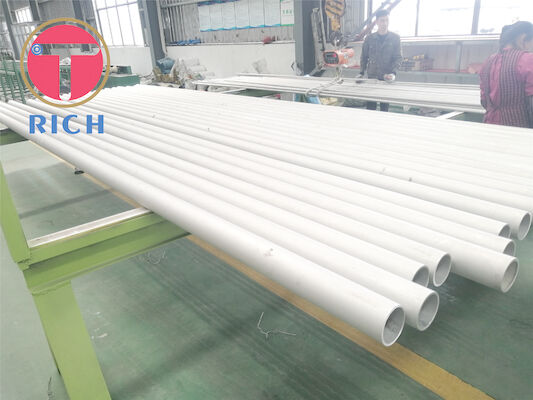

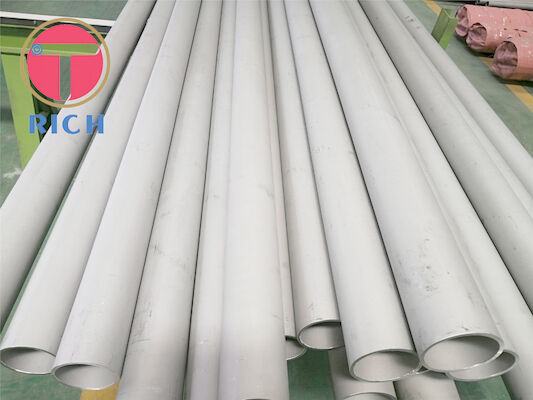

Product Pictures

TORICH DIN2462 Sputtering Target 304l Tubing 133x4x4113mmTORICH DIN2462 Sputtering Target 304l Tubing 133x4x4113mmTORICH DIN2462 Sputtering Target 304l Tubing 133x4x4113mm
