GB/T 34109 Thick Walled Seamless Alloy Steel Pipe For Drill Rod Of Rotary Digging Machine
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 2 ton | Price : | negotiable |
---|---|---|---|
Packaging Details : | packing in wooden boxes or in hexagonal bundles | Delivery Time : | 30-35 days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Ton per year |
Place of Origin: | ZheJiang,CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001; ISO14001; TSI16949 | Model Number: | ASTM A213 |
Detail Information |
|||
Product Name: | ASTM A213 Grade T5 Alloy Steel Tube For Heat Exchangers | Product Keyword: | Alloy Steel Tube |
---|---|---|---|
Grade: | T5 | Application: | For Boiler Pipes And Heat Exchangers |
Secondary: | Non-secondary | Section Shape: | Round And Shaped |
High Light: | Grade T5 Alloy Steel Tube,ASTM A213 Alloy Steel Tube,TORICH Alloy Steel Tube |
Product Description
Application: For boiler pipes and heat exchangers
Steel Grade/Steel Material: T5
Size Range:
OD | 5-420mm |
WT | 0.5-50mm |
Length | According to customer requirement |
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Chemical Composition:
Grade | UNS | C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
T5 | K41545 | 0.15 max | 0.30-0.60 | 0.025 max | 0.025 max | 0.50 max | 4.00-6.00 | 0.45-0.65 |
Mechanical Proporties:
Tensile Strength , MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
415 min | 205 min | 30 min | 163 max |
Outside Diameter and Tolerance:
Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |

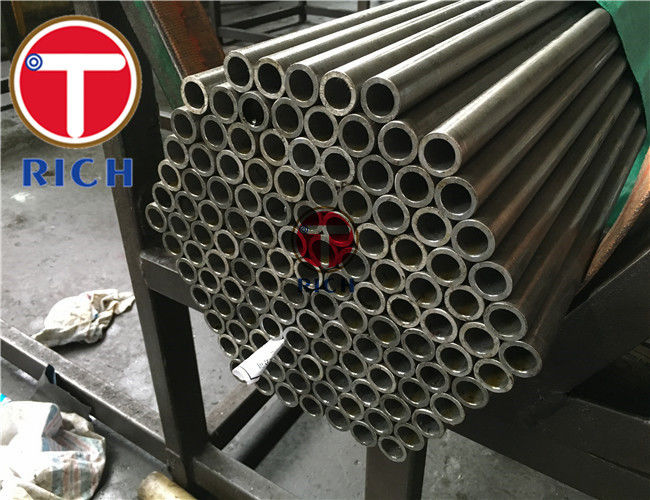

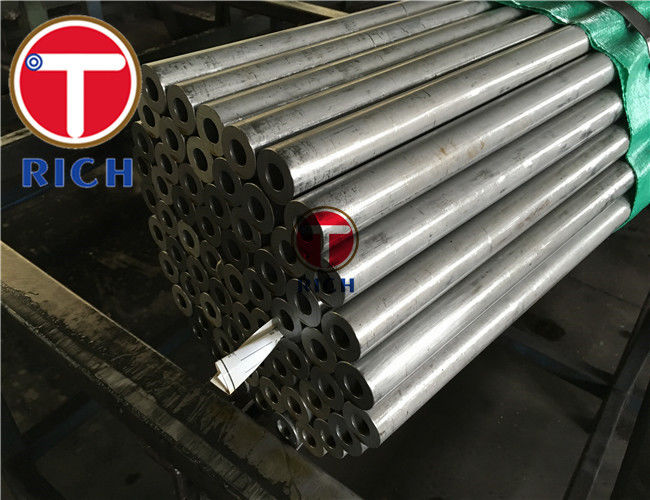

Product show:
FAQ:
A: A professional steel pipes materials inventor, manufacturer and solution provider
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
