Construction Oil Refining 310S 6.35mm Stainless Steel Tube
Product Details
6.35mm stainless steel tube
,310s stainless steel tube
,Construction Oil Refining 310S Tube

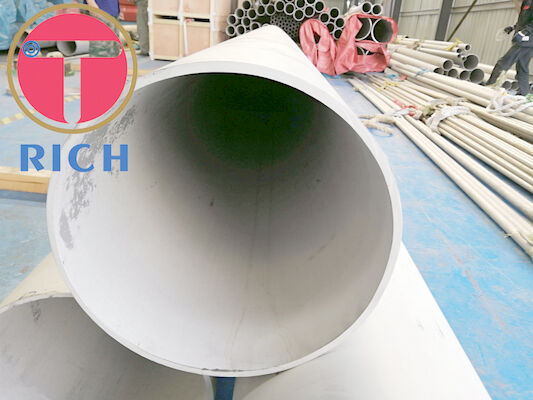

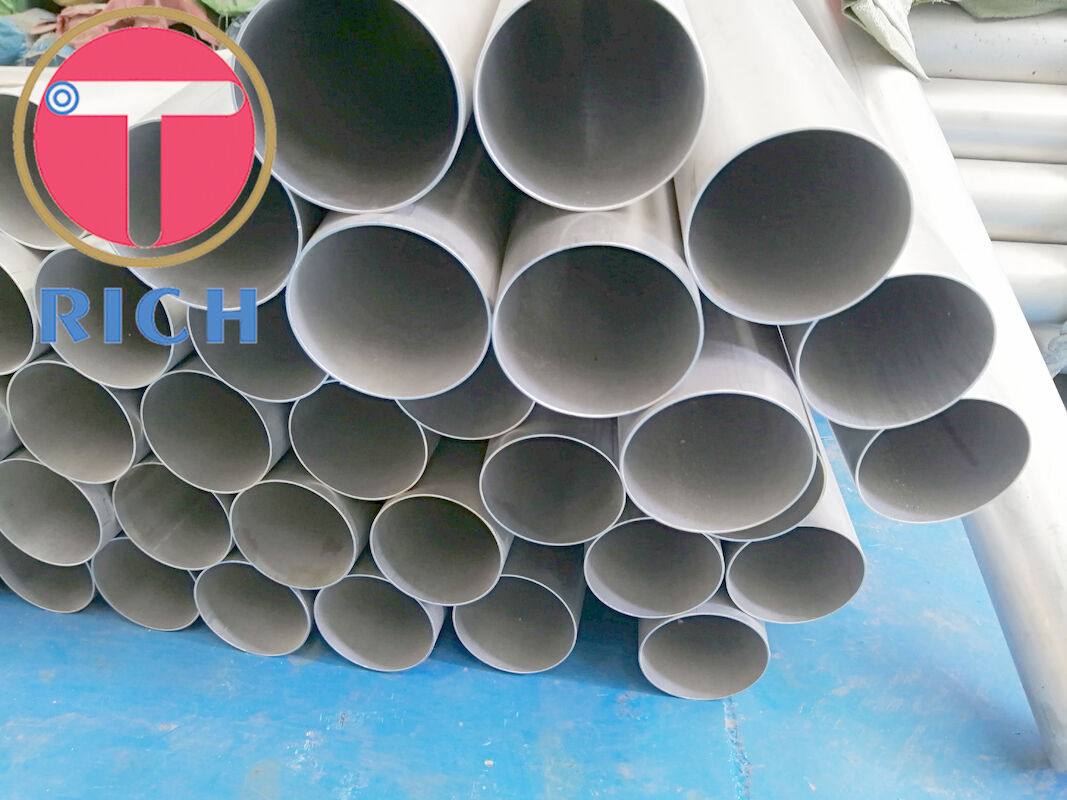

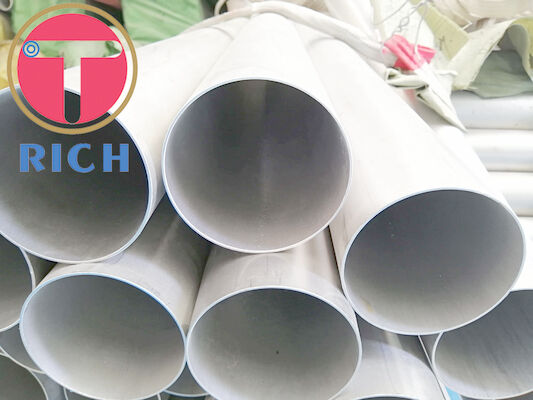

Construction Oil Refining Big Diameter 310S Stainless Steel Pipes
Production process of large diameter straight seam welded pipe:
Steel Coil→ Re-test→ Flat Open and Transverse Shear→ Shear (Longitudinal Shear)→ Edge Planning and Milling→
Butt Welding of Plate→ Forming (Bending/Reeling)→ End Squaring&Tack Welding→ Welding Seam Cleaning→
Automatic Welding→ Radiographic Test→ Solution Treatment→ Rounding→ Straightening→ End Facing Treatment→
Hydrostatic Test→ Pickling Passivation→ Rinse and Dry→ Radiographic Test→ Finished Product Testing→ Marking→
Packing→ Finished Product Warehousing→ Shipping
1. Grade:
304/304L/304H, 316/316L, 321/321H, 317/317L, 347/347H, 309S, 310S, 2205, 2507, 904L, 430J1L, 444, 445J2, 44660 (1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4541, 1.4833, 1.4878, 1.4550, 1.4462, 1.4438, 1.4845)
2. Size:
OD 6.35 mm - 114 mm,
WT 0.2 mm - 3.5 mm
3. Standard:
ASTM A213, A249, A269, A312, A511, A789, A790, A376,
EN 10216-5, EN 10297,DIN 17456, DIN 17458,
JISG3459, JIS GS3463, GS3467, JIS G3448,
GOST 9940, GOST 9941
4. Certification:
ISO9001, ISO14001, OHSAS18001, PED, AD2000 and so on
| Size Range |
OD: NPS 1/8 -80, BN 6 - 2000, 10.3 - 2030 , Alao capilary
WT: Sch5s-Sch160s, SchXXH, STD,XS,XXS
Length: Customization
|
| Grade |
S32750, 00Cr25Ni7Mo4N, 022Cr25Ni7Mo4N, 1.441, 1.4307/1.4301/304L/3, S30408/S30403, 0Cr18Ni9DQ, 1.4948/304H, 07Cr19Ni10, S30409, 1.4948, 06Cr23Ni13,
S30908, SUS309S, SUS310S, 1.4845, S31008, S31008S, 06Cr25Ni20, 0Cr25Ni20, 1.4401/1.4404/316/31,
S31635, SUS316Ti, 1.4571, 1.4571/316Ti, S31703, 022Cr19Ni13Mo3, 00Cr17Ni12Mo2,
S31703, SUS317L, 1.4438, S41008, SUS410S, 1.4, 06Cr13, S11306, 0Cr13, S42000, SUS420J1, 1.4021, SUS420J2, 1.4028,
S43020, 430F, SUS430F, 1.4104, ,
301, 302, 303, 305, 309, 310, 316, 317, 321, 347, 403, 405, 416, 431, 444,
2205, 2507, 304/304L, 304DQ, 304H, 309S, 310S, 316/316L, 316Ti, 317L,
410S, 420J1, 420J2, 430F, 254Smo, 1.4529,
HC276, 800, 825, 600, 601, 718, 750, 400, 630, XM19, C4,
S30815, S31254, 174PH, F51, F60, F53, S32760, 253MA, HC2000, 800H, 926,
GH2132, GH4169, GH3030, GH3039, GH4151, N04400, HB3, 0Cr13Ni5Mo, N08367, N08810
|
Application:
Electric Power, Oil Refining, Nuclear Power, Drinking Water,
Offshore Engineering&Shipbuilding, Natural Gas, Paper Making, Construction
-
