GB/T19447 TORICH 0.1mm Seamless Copper Pipe

Basic Information
Place of Origin: ZHEJIANG, CHINA
Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949
Model Number: GB/T19447
Minimum Order Quantity: 5Tons
Price: negotiable
Packaging Details: Copper Low Fin Tubes are packed in wooden boxes in seaworthy packing.
Delivery Time: 30-45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Tons per Year
Detail Information
Product: Copper Low Fin Enhanced Evaparation Tube Material: C10200, C11000 Etc
Fin Thickness: 0.1mm - 2mm Tube OD: 8mm - 55mm
Length: Max 12m End Protector: Plain End / Beveled End
Surface: Copper Coated Application: For Boiler And Heat Exchanger
High Light:

GB/T19447 seamless copper pipe

,

TORICH seamless copper pipe

,

0.1mm seamless copper pipe


Product Description

GB/T19447 Seamless Copper and Copper Alloy Steel Low Fin Enhanced Evaparation Tube

Quick Detail:
The low-finned tube is produced by rolling (three-roll diagonal rolling), and its working principle is as follows:
a mandrel is lined with the smooth tube, the tube material moves in a spiral straight line under the drive of the
roller blade, and finnings are gradually processed on its outer surface through the pass formed by the rolling
groove and mandrel. In order to more conducive to fin forming, used in the process of deformation of rolled
piece in the nip, roll, plastic three stages, make processing of fin complete, smooth, rules, this method produces
finned tube for outside fin tube with is an organic whole, and therefore no contact thermal resistance loss and
corrosion problem, has good heat transfer efficiency and the strong ability of resistance to deformation.

Low Finned Tubes add short fin in the tube wall that greatly increase the surface area over smooth tube.
The fins are formed into the tube wall so the outside diameter of the fins are not larger than the pre-finned
smooth tube.Energy Transfer is solely focused on producing the largest variety and most complete solutions
for finned tubing. Low finned tubes can be provided with a smooth or rifled tube inside surface.

Material
C10200, C11000, C70400 C44300 Etc
Size
Fin Thickness: 0.1-2mm; Tube OD: 8-55mm; Length: max 12m
Fin Pitch
Customize
Surface
Copper Coated
End protector
Plain End / Beveled End
Application
Enhanced Evaparation, Oil&Gas Well Drilling, For Heat Exchanger
Test
Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test





Plain tube (mm)
Finned section dimensions (mm)
Ratio
De
D×t
Tp
dd
dr
di
η
mm
19×2
0.8
18.8
17
134
2.8
17.9
19×2
1
18.8
16.8
13.4
2.5
17.8
19×2
1.25
18.8
16.6
13
2.2
17.8
19×2
1.5
18.8
16.4
13
2
17.7
19×2
2
18.8
23
13
1.7
17.5
25×2.5
0.8
24.8
22.6
18.8
2.8
23.9
25×2.5
1
24.8
22.3
18.8
2.75
23.7
25×2.5
1.25
24.8
22.3
18
2.5
23.6
25×2.5
1.5
24.8
22.3
18
2.2
23.5
25×2.5
2
24.8
22
18
1.8
23.4
25×2.5
2.5
24.8
22
18
1.6
23.3
D------Outside diameter of plain end section
Dof----Diameter of top fins
Dr-----Root diameter of finned section
Di-----Inside diameter of finned section
T------Wall thickness of plain end section
Tp-----Fin pitch
De----Equivalent diameter of finned tube
L------Plain tube end length

Product Show

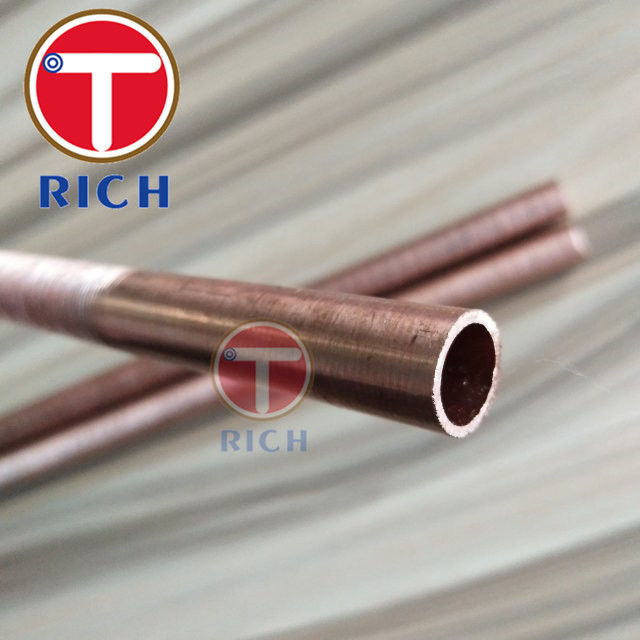

GB/T19447 TORICH 0.1mm Seamless Copper Pipe 0GB/T19447 TORICH 0.1mm Seamless Copper Pipe 1



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
