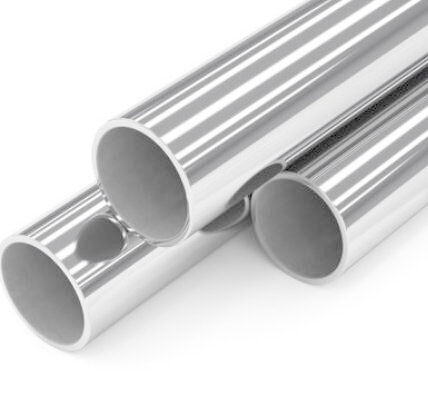

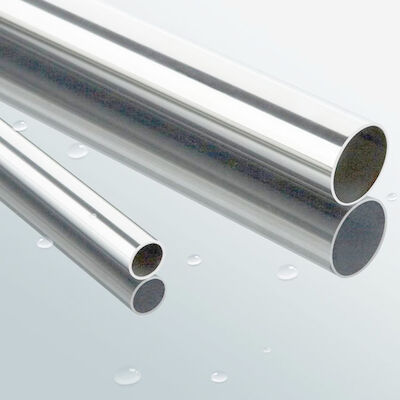

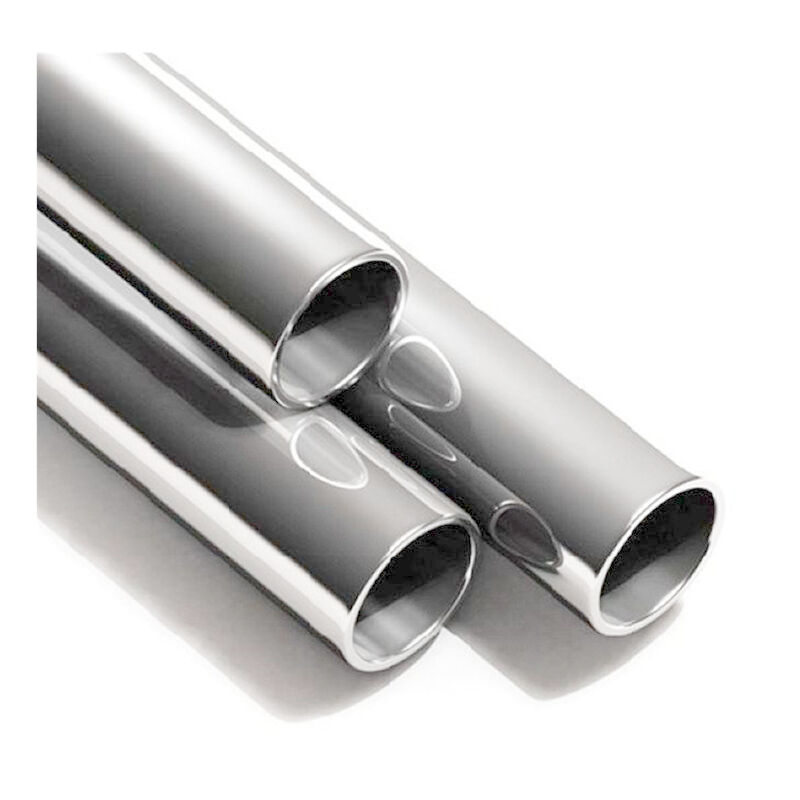

ASME SB163 UNS N08825 Nickel Alloy Tube For Condenser
Product Details
UNS N08825 Nickel Alloy Tube
,ASME SB163 Nickel Alloy Tube
,ASME SB163 condenser tube
ASME SB163 UNS N08825 Nickel Alloy Seamless Steel Tube for Condenser
ASME SB163 UNS N08825 Nickel Alloy Seamless Steel Tube for Condenser
Product Name:
ASME SB163 UNS N08825 Nickel Allot Seamless Steel TubeProduct Keyword:Nickel Alloy Steel Pipe
Grade: UNS N02200, N04400, N06603 N08825 EtcApplication:For Condenser And Heat Exhchanger
WT: 4.19mm Max
OD: 76.2mm Max
Type: SeamlessHeat Treatment:Annealed/Cold Worked/ Stress Relieved
Referenced ASTM Standard:
B 829 Specification for general requirements for Nickel and Nickel Alloy seamless pipe and tube.
B 880 Specification for general requirements for Chemical check analysis limits for Nickel, Nickel alloys and Cobalt alloys.
E 8 Test method for tension testing of metallic materials.
E 18 Test methods for rockwell hardness and rockwell superficial hardness od metallic materials.
E 29 Practice for using significant digits in test data to determine conformance with sprcifications.
E 76 Test methods for chemical analysis of Nickel-Copper alloys.
E 112 Test Methods for determining the average grain size.
E140 Hardness conversion tables for metal.
E 1473 Test methods for chemical analysis of Nickel, Cobalt and high-temperature alloys.
Keywords:
Seamless tube; UNS N02200; UNS N02201; UNS N04400; UNS N06025; UNS N06045; UNS N06600;
UNS N06601; UNS N06603; UNS N06686; UNS N06690; UNS N08120; UNS N08800; UNS N08801;
UNS N08810; UNS N08811; UNS N08825
Inconel 600 alloy is ni - cr - iron base alloy solid solution strengthening, has good resistance to high temperature corrosion and oxidation resistance, excellent hot and cold processing and welding performance, under 700 ℃ has a satisfactory heat intensity and high plasticity.Alloy can be strengthen through the cold work, also can use resistance welding, welding or soldering connection.
| Physical properties | |||||
| | -150℃ | 21℃ | 100℃ | 500℃ | 1000℃ |
| Modulus of elasticity (Gpa) | 12.5 | | 15.9 | 22.1 | |
| Mean coefficient of thermal expansion | | 210 | 210 | 187 | 143 |
| Coefficient of heat conduction (w/m℃) | 10.9 | 10.4 | 13.3 | 14.9 | |
| Specific heat capacity (j/kg.℃) | 310 | 444 | 465 | 536 | |
| Than the resistance (Ωmm2/m) | | 1.03 | 1.04 | 1.12 | |
ASTM B444
Referenced ASTM Standard:
E829 Specification for general requirements for Nickel and Nickel alloy seamless pipe and tube.
E112 Test Methods for determining the average grain size.
G28 Test methods for detecting susceptibility to intergranular corrosion in wrought, Nickel-Rich, Chromium-Bearing Alloys.
G48 Test methods for piting and crevice corrosion resistance of stainless steel and related alloys by use of ferric chloride solution.
Keywords: Seamless pipe; seamless tube; N06219; N06625
ASME SB163 UNS N08825 Nickel Alloy Seamless Steel Tube for Condenser
-
