1045 40Cr 2Cr13 Hydraulic Cylinder Piston Rod
Basic Properties
Place of Origin:
Zhejiang,China
Brand Name:
Torich
Model Number:
DIN 17200
Trading Properties
Minimum Order Quantity:
2 ton
Payment Terms:
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Product Summary
Torich 1045 40Cr 2Cr13 Precision Hydraulic Cylinder Piston Rod Chrome Plated Rod Specification Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 42CrMo Diameter: Φ 6-500 mm Length: max 16m Chrome layer: 20 micron (min) Hardness of the chrome layer: 800HV-1150HV Roughness: Ra ≤0.2u Straightness: ≤ 0...
Product Details
Highlight:
2Cr13 Hydraulic Cylinder Piston Rod
,40Cr Hydraulic Cylinder Piston Rod
,1045 Hydraulic Cylinder Piston Rod
Product Name:
Torich 1045 40Cr 2Cr13 Hydraulic Cylinder Piston Rod
Model Number:
303
Brand:
Torich
Place Of Origin:
Zhejiang,China
MOQ:
2 Ton
Type:
Carbon Steel Bar, Carbon Steel Bar
Surface Treatment:
Polished
Application:
Tool Steel Bar
Product Description
Torich 1045 40Cr 2Cr13 Precision Hydraulic Cylinder Piston Rod
Chrome Plated Rod Specification
- Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 42CrMo
- Diameter: Φ 6-500 mm
- Length: max 16m
- Chrome layer: 20 micron (min)
- Hardness of the chrome layer: 800HV-1150HV
- Roughness: Ra ≤0.2u
- Straightness: ≤ 0.2/1000
- Diameter tolerance: ISO f7
- Roundness: the deviation of roundness is 50% of the diameter tolerance at the most.
- Supply condition: Hard chrome plated/ Hardened and tempered/ Induction hardened
- Packing: Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden case.
| Product name | piston rod |
| Size | 12-300mm |
| Material | 20#,45#,40Cr,46CrMo4 or as required |
| Technique | cold drown/peeling |
| Tolerance | ISO f7 |
| Chrome layer thickness | 15-30μm |
| Leeb hardness | 20-60HRC |
| Application | cylinder tube |
| CHEMICAL COMPOSITION(%) | ||||||||||
| Steel Grade | C% | Mn% | Si% | S% | P% | V% | Ni% | Cr% | Mo% | Cu% |
| CK45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | / | ≤0.25 | ≤0.25 | / | ≤0.25 |
| 20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 | ≤0.30 | / | ≤0.30 |
| 42CrMo4 | 0.38-0.45 | 0.5-0.8 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.07-0.12 | ≤0.03 | 0.90-1.20 | 0.15-0.25 | ≤0.03 |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | / | ≤0.30 | 0.80-1.1 | / | ≤0.03 |
| MECHANICAL PROPERTIES | ||||||||||
| Material | Tensile Strength Rm (Mpa) | Yield Strength Rel (Mpa) | Elogation A% | CHARPY | CONDITION | |||||
| CK45 | 610 | 355 | 15 | >41J | Normalized | |||||
| CK45 | 800 | 540 | 20 | >41J | Q+T | |||||
| 20MnV6 | 750 | 590 | 12 | >41J | Normalized | |||||
| 42CrMo4 | 980 | 850 | 14 | >47J | Q+T | |||||
| 40Cr | 1000 | 800 | 10 | Q+T | ||||||

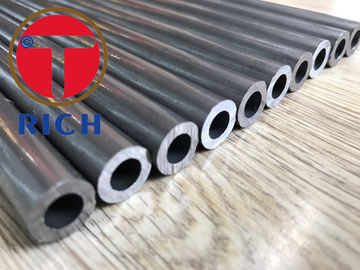

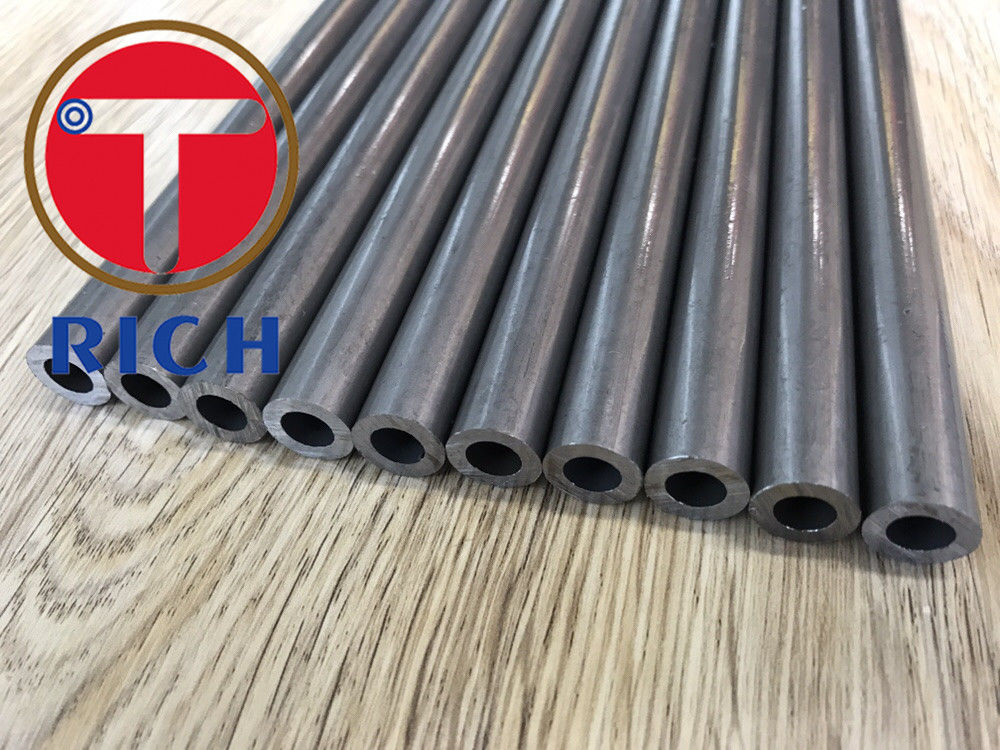

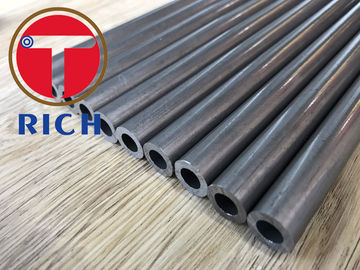

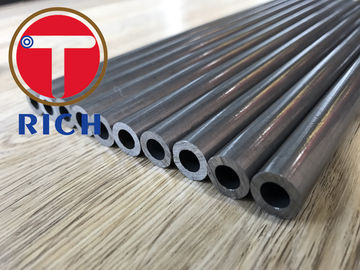

Product Pictures:
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
