EN 10305 Welded Steel Tube Low Carbon Steel Cold Drawn Welded Tubes 34MnB5 For Automobile
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 3 tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | packing in wooden boxes or in hexagonal bundles | Delivery Time : | 30-35 days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Ton per year |
Place of Origin: | ZheJiang,CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001; ISO14001; TSI16949 | Model Number: | ASTM A53 |
Detail Information |
|||
Product Name: | ASTM A53 Hot Dipped Galvanized Square And Round Carbon Steel Tube For Building And Industry | Product Keyword: | Galvanized Steel Tube |
---|---|---|---|
Grade: | A53A A53B A53C | Application: | For Liquid Delivery, Structural Pipe, Industry Pipe |
Secondary: | Non-secondary | Section Shape: | Round And Square |
High Light: | Torich Galvanized Carbon Steel Pipe,erw Galvanized Carbon Steel Pipe,Torich astm a53 steel pipe |
Product Description
Application: For liquid delivery, structural pipe, industry pipe
Technique: Cold Drawn and Hot-Finished
Size:
OD | 5-420mm |
WT | 1-50mm |
Length | Max12000mm |
Zinc thickness: According to cutomers requirement
Standard: | Standard2: | Certification: | Surface Treatment: |
JIS, DIN, ASTM, BS, GB, API | JIS G3463-2006, JIS G3454-2007, JIS G3444-2006, JIS G3469-2002, DIN 1626, DIN 2391, ASTM A106-2006, ASTM A53-2007, ANSI A312-2001, BS 1387, BS 6363, GB/T 8162-1999, API 5CT, API 5L, API 5DP | BSI | Galvanized |
Grade Group: | Grade: | Special Pipe: | Alloy Or Not: |
Q195-Q345, A53-A369, 10#-45# | Q235, Q345, Q195, Q215, A53(A,B), 10#, 20#, 45# | Thick Wall Pipe | Non-alloy |
Thickness: | Section Shape: | Secondary Or Not: | Commodity: |
1-50 mm | Round | Non-secondary | Galvanized pipe |
Outer Diameter(Round): | Place of Origin: | Company Type: | length: |
5-420 mm | China | Manufactory | 5.8m/6m or customized |
Application: | Technique: | Zinc coating: | Marks: |
Structure Pipe | Seamless and ERW | 40g/m2~500 g/m2 | Customized |
Main Products: | Product name: | Material: | Package: |
Steel Pipe | Q235 Galvanized Steel Pipe for Building and Industry Pipes | Q195/Q215/Q235/Q345 | Standard Package By Bundle or Customized |
Chemical Composition:
Steel Grade |
C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V |
max | max | max | min | max | max | max | max | max | ||
A | 0.25 | 0.27~0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
B | 0.30 | 0.27~1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
C | 0.35 | 0.27~1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Mechanical proporties:
Grade | Tensil Strength Mpa | Yield Point Mpa | Elongtation % |
A | ≥330 | ≥205 | 20 |
B | ≥415 | ≥240 | 20 |
C | ≥485 | ≥275 | 20 |

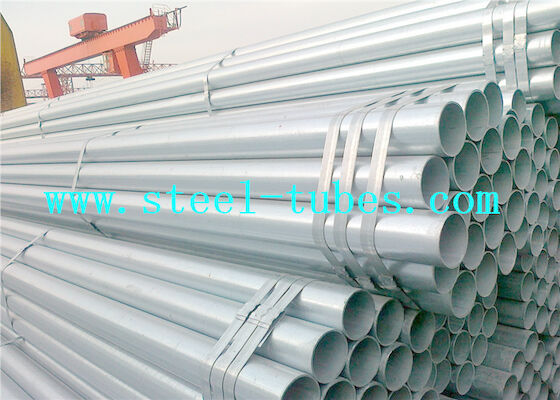

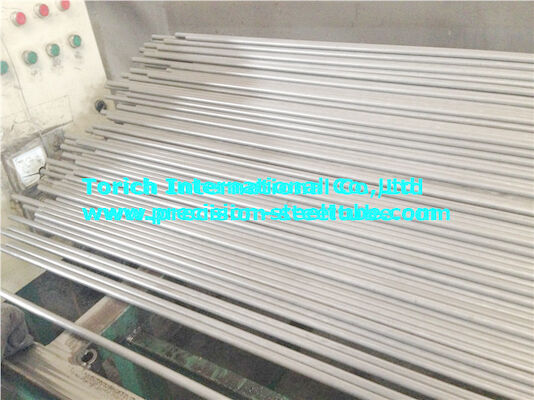

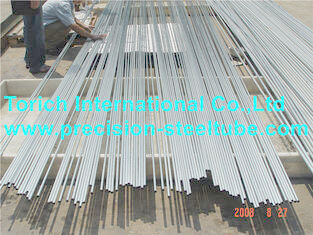

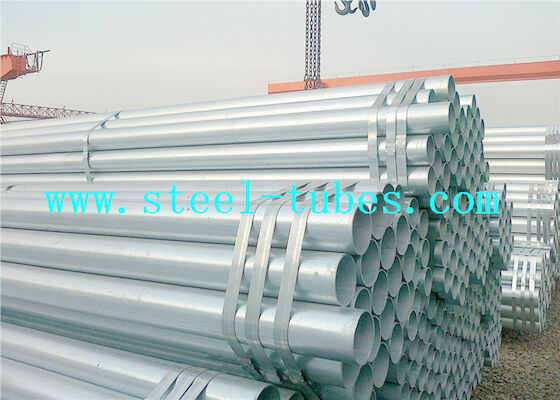

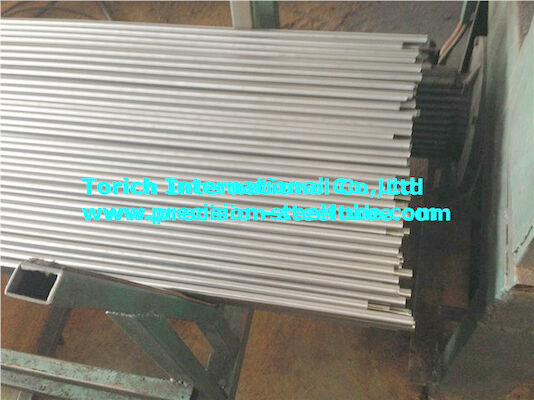

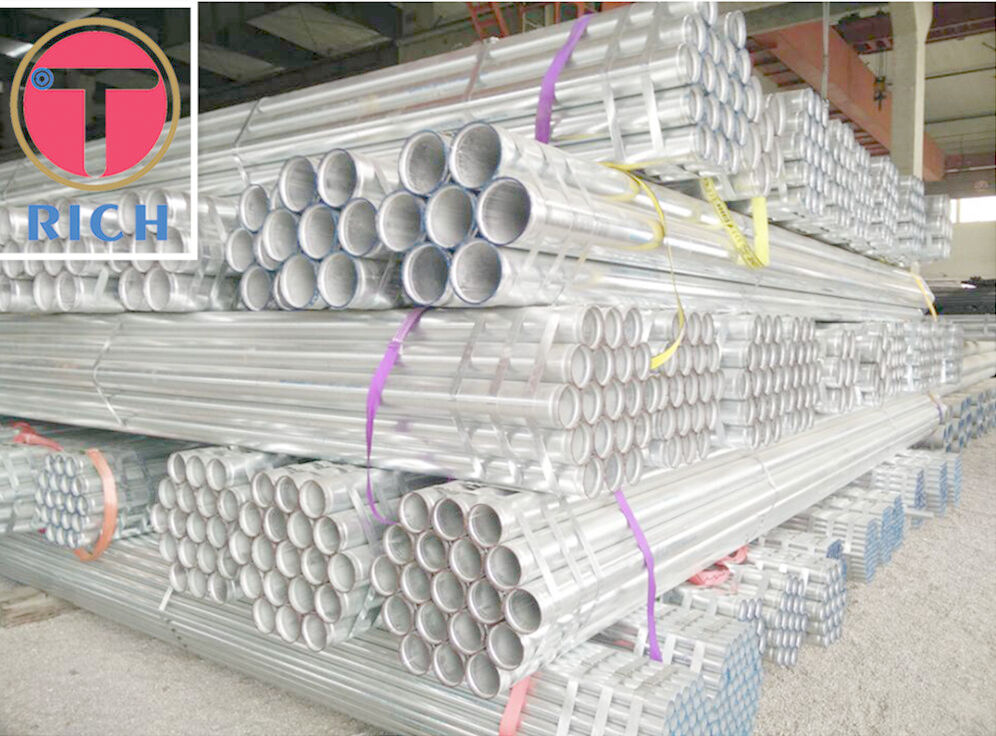

Product show:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
