GB/T 8162 42CrMo Alloy Steel Tube Cold Drawn Carbon Steel Alloy Steel Pipr For Mechanical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 2 ton | Payment Terms : | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
|---|
| Place of Origin: | Zhejiang,China | Brand Name: | Torich |
|---|---|---|---|
| Model Number: | ASTM B168 |
|
Detail Information |
|||
| Product Name: | UNS N06002 Seamless Nickel Alloy Pipes And Tubes | Standard: | ASTM B168 |
|---|---|---|---|
| Brand: | Torich | Place Of Origin: | Zhejiang,China |
| MOQ: | 2 Ton | Alloy Or Not: | Alloy |
| OD: | 5-420mm | WT: | 0.5-50mm |
| High Light: | UNS N06002 Alloy Steel Pipe,UNS N06002 Nickel Alloy Pipe,WT 50mm Alloy Steel Pipe |
||
Product Description
ASTM B168 Nickel Alloy Tubes and Tubing
Introduction:
Standard: ASTM B168
Production method:Cold-finished, hot-finished
Od: 5-420mm
Wt:0.5-50mm
length:Max 12000mm
Type: Nickel alloy steel pipes
Application: For Barge and tank truck liners, Carburizing atmospheres, Ethylene dichloride crackers
Chemical composition:
| Item | 600 | 601 | 617 | 625 | 690 | 718 | X750 | 825 |
| C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
| Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
| Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
| P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
| S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
| Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
| Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
| Ni | ≥72 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
| Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
| Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
| Ti | -- | -- | ≤0.6 | ≤1.15 | -- | -- | 2.25-2.75 | 0.6-1.2 |
| Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
| Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
| Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
| B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |

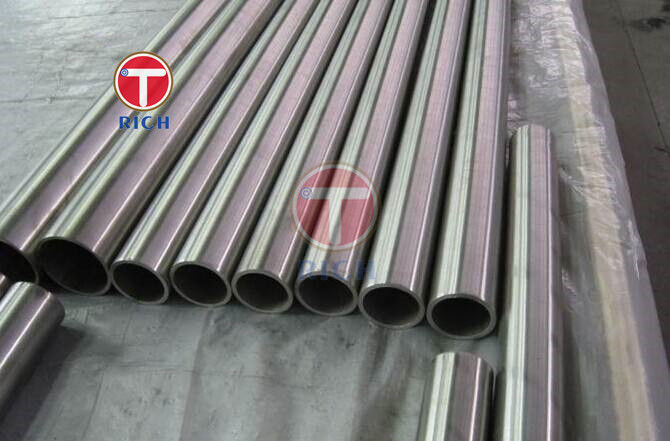

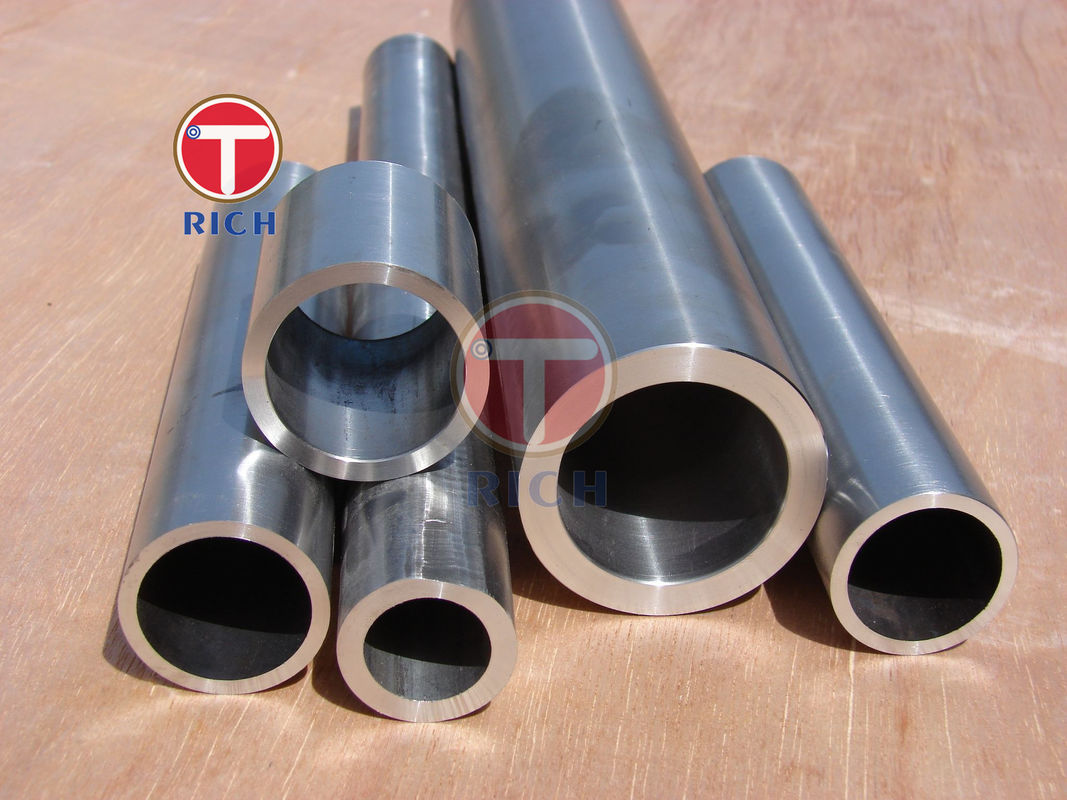

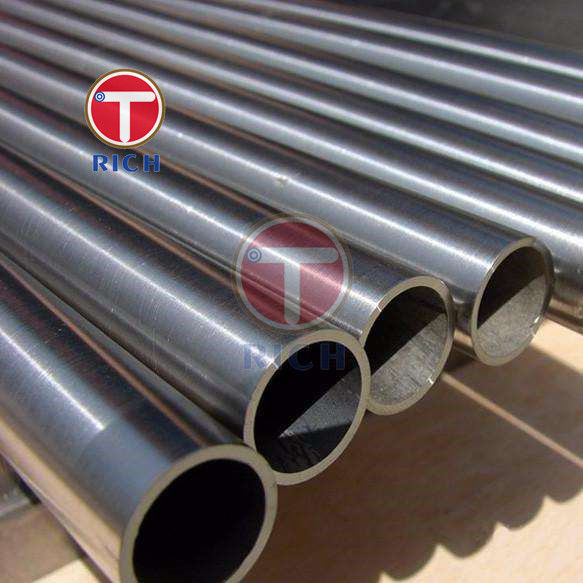

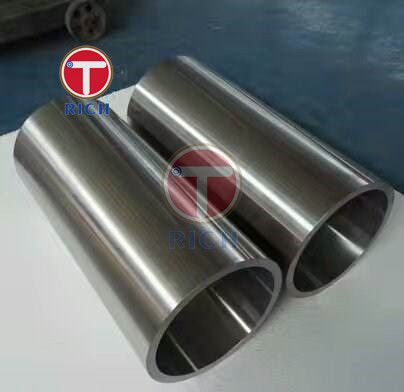

Product Pictures:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
